MODEL |
---|

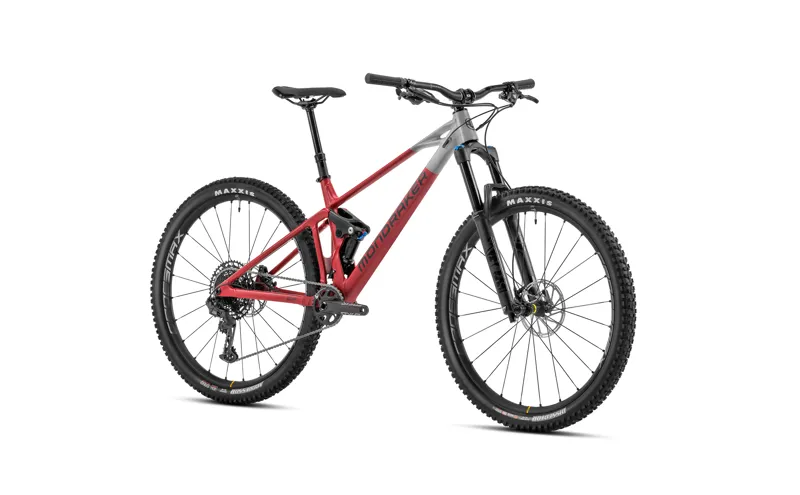

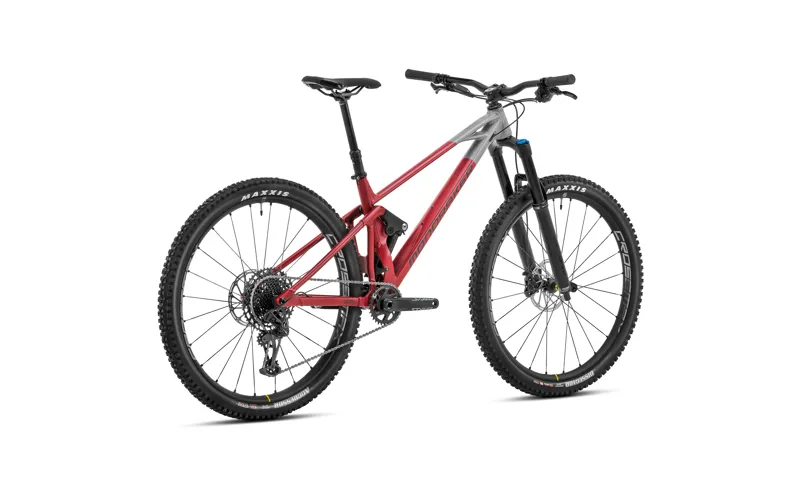

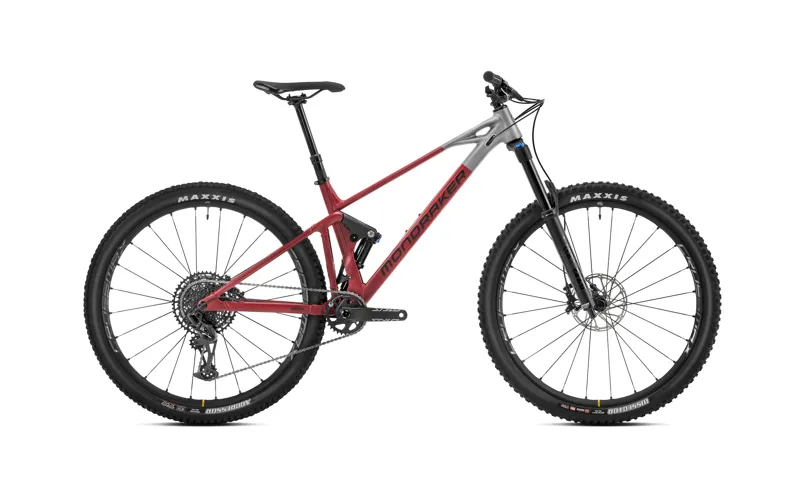

RAZE R |
FRAME |
---|
Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05 |

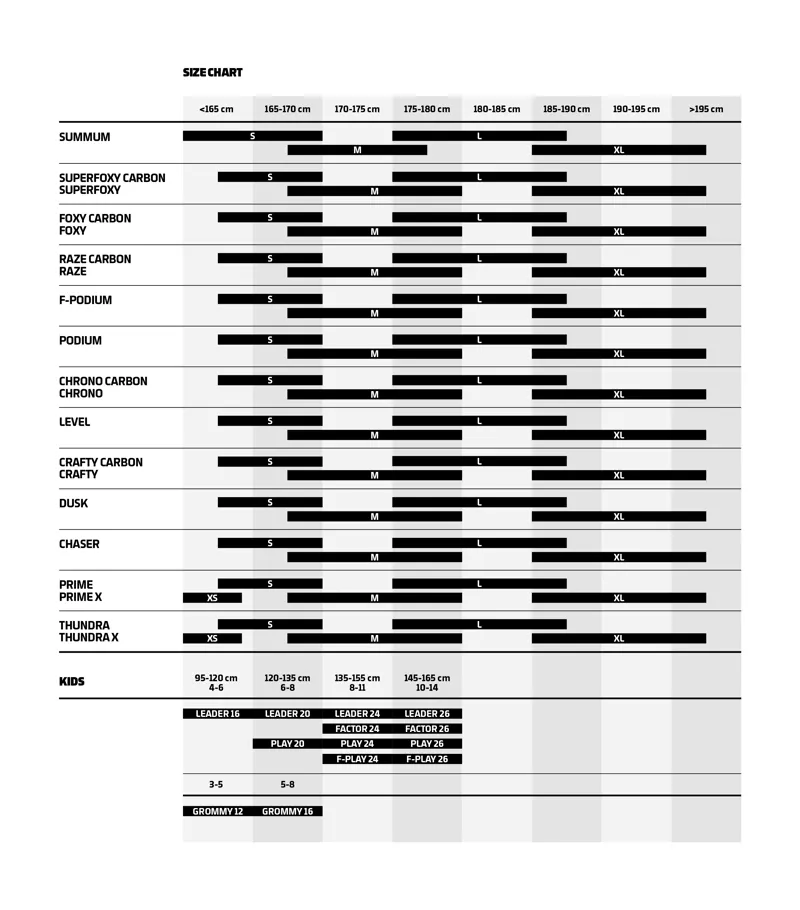

SIZES |
---|
S: 380mm / M: 420mm / L: 470mm / XL: 510mm |
REAR SHOCK |
---|
Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings |
SHOCK SETTINGS |
---|
Light compression, light rebound, air volume spacer 0.6 |
FORK |
---|
Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload |
FORK REMOTE |
---|
|
HEADSET |
---|
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
STEM |
---|
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
HANDLEBAR |
---|
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
GRIPS |
---|
Onoff Twin, 1lock-on, 135mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
SEATPOST |
---|
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
SADDLE |
---|
MDK series PU 2023Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
FRONT BRAKE |
---|
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
REAR BRAKE |
---|
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic padsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
BRAKE LEVER |
---|
Sram G2 R, tool-free reach adjust |
RIMS |
---|
Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokesOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
SPOKES |
---|
24 straight-pull double butted spokes |
FRONT HUB |
---|
Infinity hub, Boost 15x110mm, IS 6 boltsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
REAR HUB |
---|
Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts |
FRONT TYRE |
---|
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding beadOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
REAR TYRE |
---|
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead |
CRANKSET |
---|
Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
CHAINRING |
---|
32T, CNC-machined alloy, X-SYNC 2 |
BOTTOM BRACKET |
---|
Sram DUB BSA, sealed bearings, 73mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
PEDALS |
---|
|
CHAIN |
---|
Sram NX Eagle, 12s, PowerlockOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
