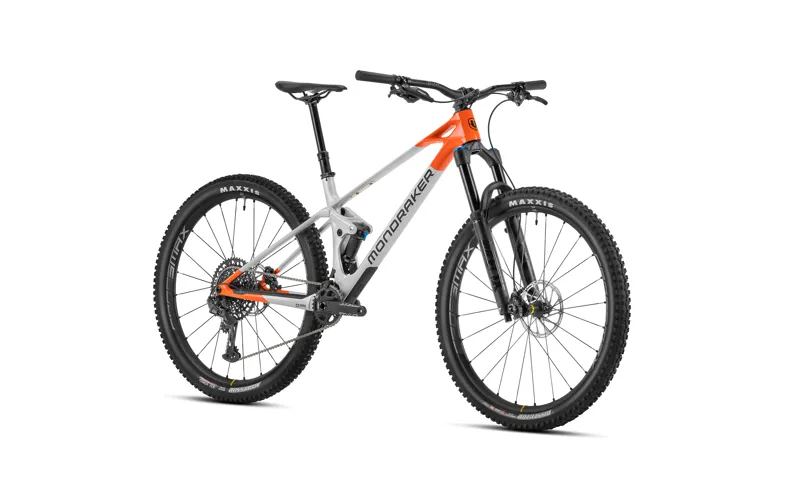

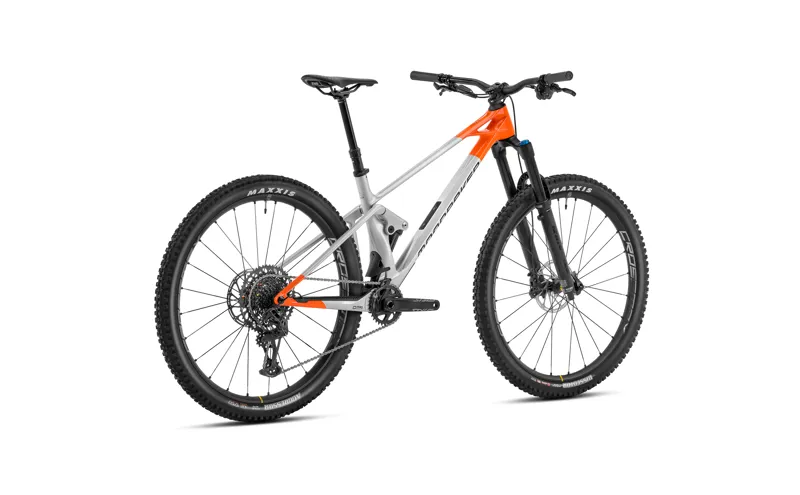

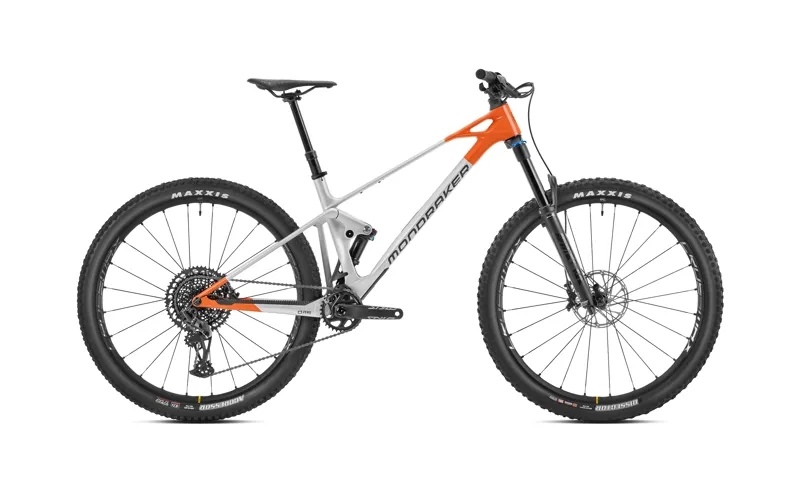

2023 Mondraker Raze Carbon R - 29 Inch Carbon Trail Full-Suspenion MTB - Silver / Orange

Season:2023

Brand:Mondraker

Code:010.2308.RAZE.CRBR.23

The RAZE CARBON R is the ideal bike if you want an aggressive trail bike which also pedals really really well.

Its standout climbing characteristics mean that the only limit to your climbs will be your legs. Its effectiveness going up is unquestionable but best of all is that when you point it downwards it’s an amazing tool for the job.

Its shock absorption, lightness and rigidity make it the best all-purpose bike bar none. Our exclusive STEALTH AIR FULL CARBON, ZERO SUSPENSION SYSTEM, FORWARD GEOMETRY and MIND technologies are of course also present in the CARBON R.
Technical Information
MODEL
RAZE CARBON R
FRAME
Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. Optional MIND System (EU only)
SIZES
S: 380mm / M: 420mm / L: 450mm / XL: 500mm
REAR SHOCK
Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings
SHOCK SETTINGS
Light compression, light rebound, air volume spacer 0.6
FORK
Fox 36 29 Float GRIP EVOL Performance, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
FORK REMOTE
HEADSET
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
STEM
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
HANDLEBAR
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPS
Onoff Desert, 1lock-on, 135mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
SEATPOST
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
SADDLE
Fizik Antares R7Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
FRONT BRAKE
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
REAR BRAKE
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic padsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
BRAKE LEVER
Sram G2, SwingLink, tool-free reach adjust
RIMS
Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokesOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
SPOKES
24 straight-pull double butted spokes
FRONT HUB
Infinity hub, Boost 15x110mm, IS 6 boltsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
REAR HUB
Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts
FRONT TYRE
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding beadOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
REAR TYRE
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
CRANKSET
Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
CHAINRING
32T, CNC-machined alloy, X-SYNC 2
BOTTOM BRACKET
Sram DUB BSA, sealed bearings, 73mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
PEDALS
CHAIN
Sram NX Eagle, 12s, PowerlockOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

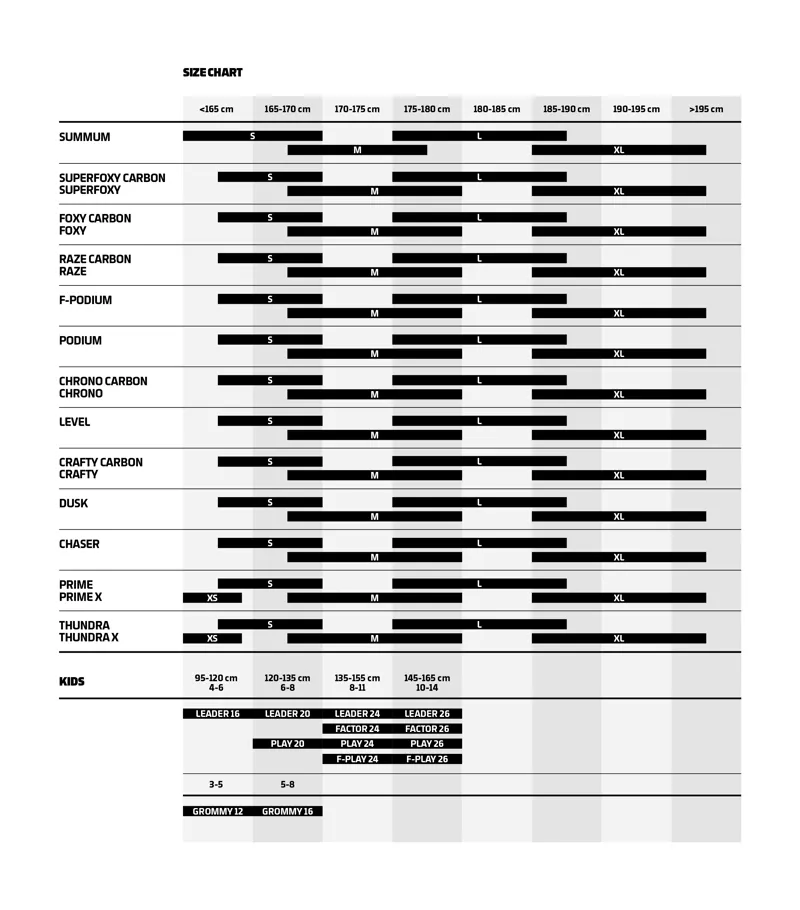

Sizing Information
Mondraker Raze Carbon R Geometry

FRAME SIZESMLXL
ASeattube length375 mm415 mm445 mm500 mm
BToptube length595 mm620 mm645 mm670 mm
CBottom bracket drop-30 mm-30 mm-30-30 mm
DBottom bracket height343 mm343 mm343 mm343 mm
EChainstay length435 mm435 mm435 mm435 mm
FSeat tube angle71°71°71°71°
GEffective seattube angle76.5°76.5°76.5°76.5°
HHeadtube angle65.5°65.5°65.5°65.5°
IFork Offset44 mm44 mm44 mm44 mm
JWheelbase1193 mm1217 mm1243 mm1269 mm
KHeadtube length90 mm100 mm115 mm130 mm
LReach455 mm475 mm495 mm515 mm
MStack608 mm617 mm631 mm645 mm
