2023 Mondraker Raze - 29 Inch Full-Suspension Trail MTB - Black / White

Season:2023

Brand:Mondraker

Code:010.230.RAZE.23

Perfect for riders who want a bike that offers the whole package at a reasonable price.

The RAZE is the trail bike to offer you the most amazing performance in its category thanks to Mondraker’s exclusive technologies: ALLOY STEALTH EVO, FORWARD GEOMETRY and ZERO SUSPENSION SYSTEM, and all without breaking the bank.

Along with the other models in the range, whether carbon or aluminium, the RAZE builds on that same philosophy of enjoying both the ups and the downs thanks to its abundant capabilities at both activities.

With 150mm of travel up front and 130mm at the rear, you'll be amazed at how versatile and fun it is. It is truly a bike for everything. The definitive quiver killer.
Technical Information
MODEL
RAZE
FRAME
Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
SIZES
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
REAR SHOCK
Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings
SHOCK SETTINGS
Light compression, light rebound, air volume spacer 0.6
FORK
RockShox 35 Gold 29 RL, 150mm, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
FORK REMOTE
HEADSET
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
STEM
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
HANDLEBAR
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPS
Onoff Twin, 1lock-on, 135mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
SEATPOST
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
SADDLE
MDK series PU 2023Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
FRONT BRAKE
Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
REAR BRAKE
Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic padOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
BRAKE LEVER
Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
RIMS
MDK-EP1 29, 30mm internal width, tubeless ready, 32 spokesOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
SPOKES
CN round stainless steel
FRONT HUB
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 boltsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
REAR HUB
Formula DHT148 Boost 12x148mm, sealed bearings, IS 6 bolts
FRONT TYRE
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding beadOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
REAR TYRE
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
CRANKSET
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
CHAINRING
32T, steel, X-Sync 2
BOTTOM BRACKET
Sram DUB BSA, sealed bearings, 73mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
PEDALS
CHAIN
Sram SX Eagle, 12s, PowerlockOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

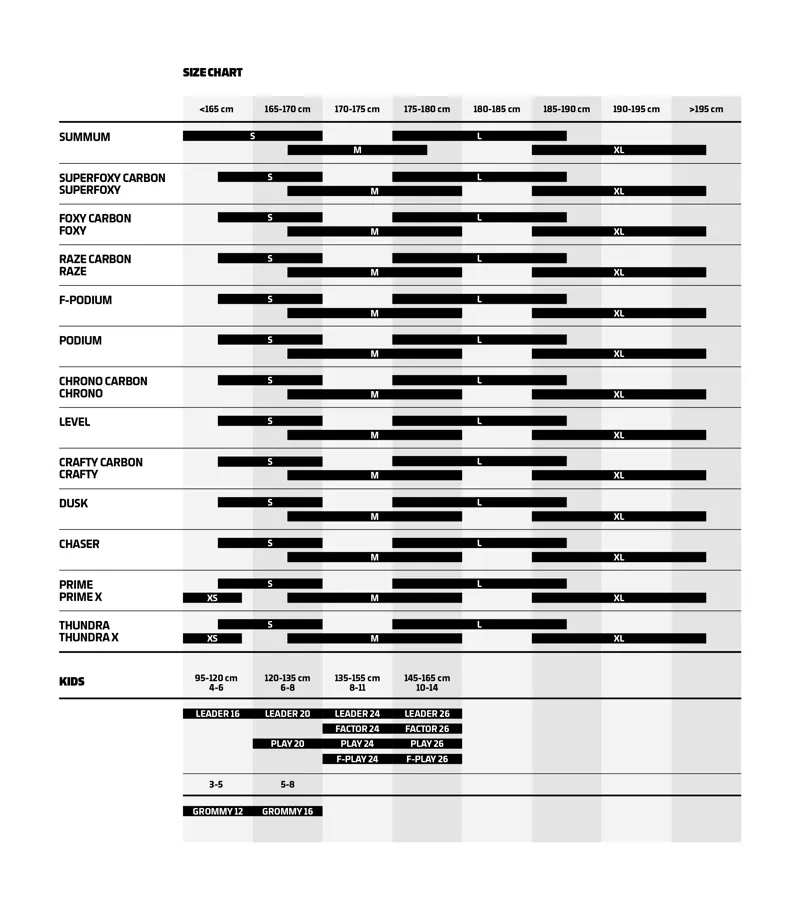

Sizing Information
Mondraker Raze Geometry


FRAME SIZESMLXL
ASeattube length375 mm4515 mm445 mm490 mm
BToptube length594 mm614 mm638 mm658 mm
CBottom bracket drop29 mm29 mm29 mm29 mm
DBottom bracket height340 mm340 mm340 mm340 mm
EChainstay length435 mm435 mm435 mm435 mm
FSeat tube angle72º72º72º72º
GEffective seattube angle77º77º77º77º
HHeadtube angle65.5º65.5º65.5º65.5º
IFork Offset44 mm44 mm44 mm44 mm
JWheelbase1197 mm1216 mm1246 mm1266 mm
KHeadtube length100 mm100 mm120 mm120 mm
LReach450 mm470 mm490 mm510 mm
MStack623 mm623 mm641 mm641 mm
