MODEL |
---|

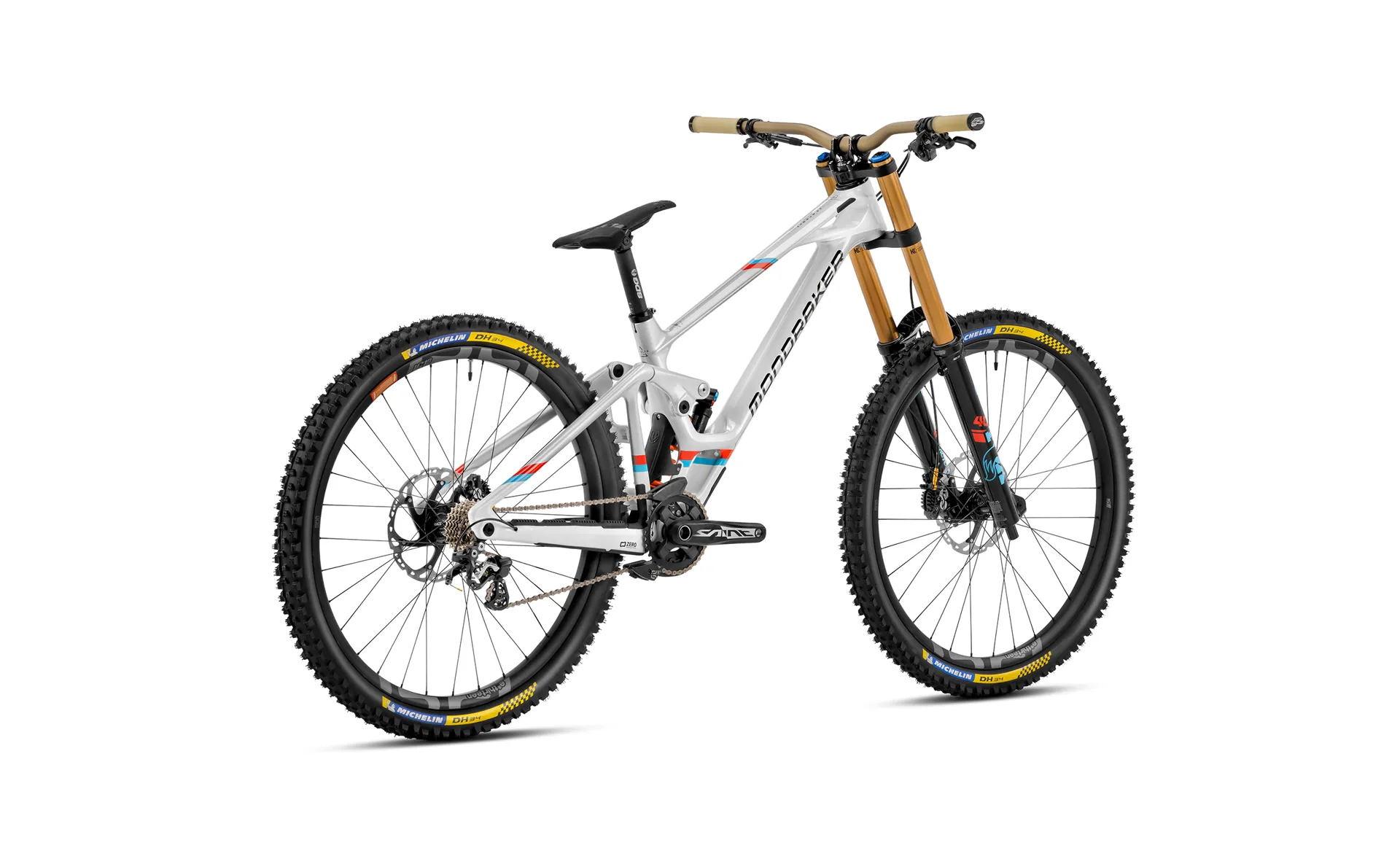

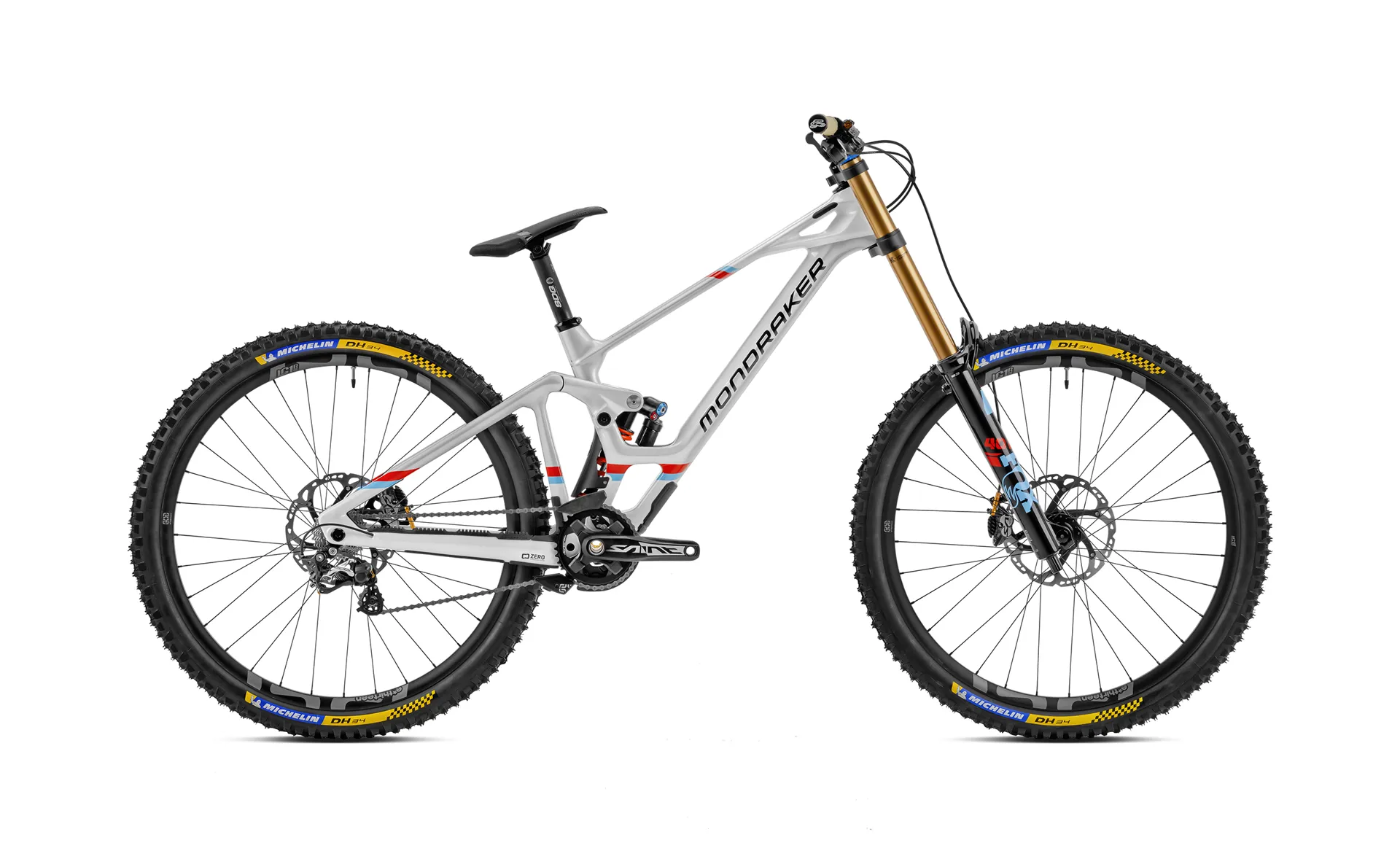

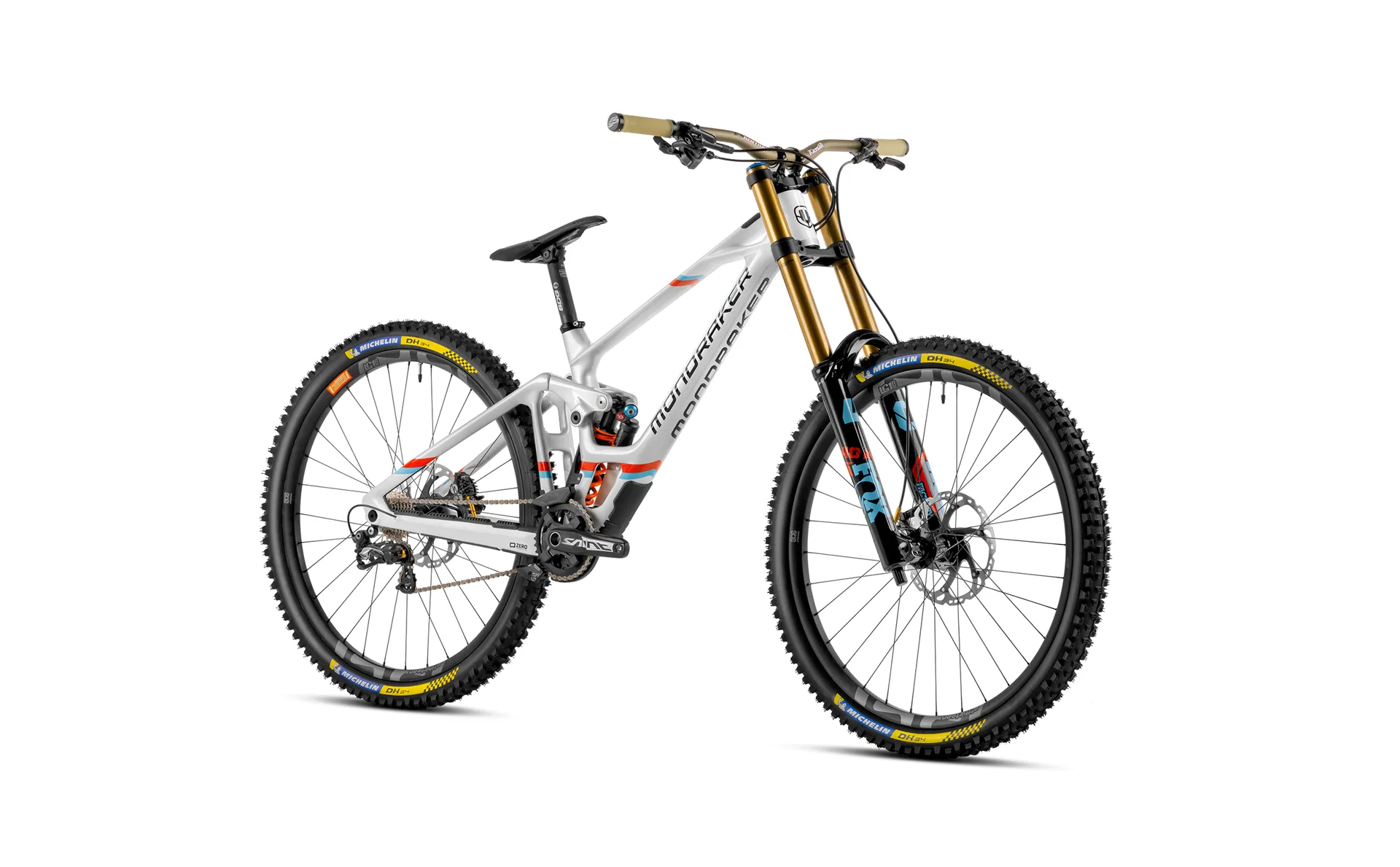

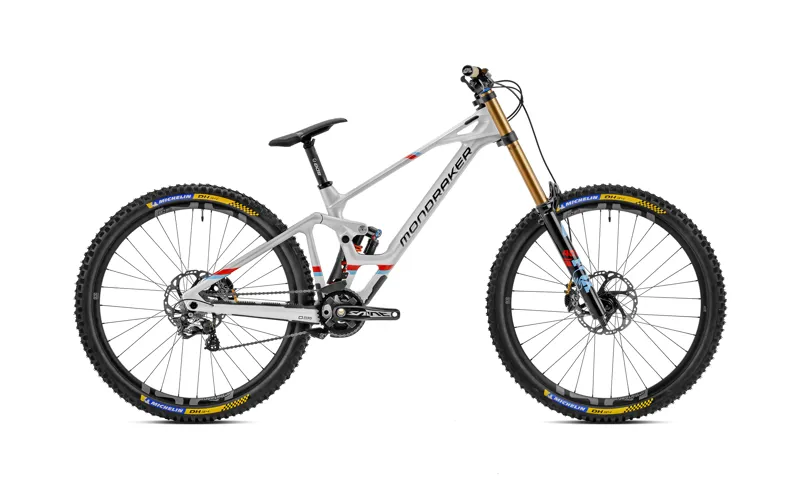

SUMMUM CARBON RR |
FRAME |
---|
Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included. MIND System (EU only) |

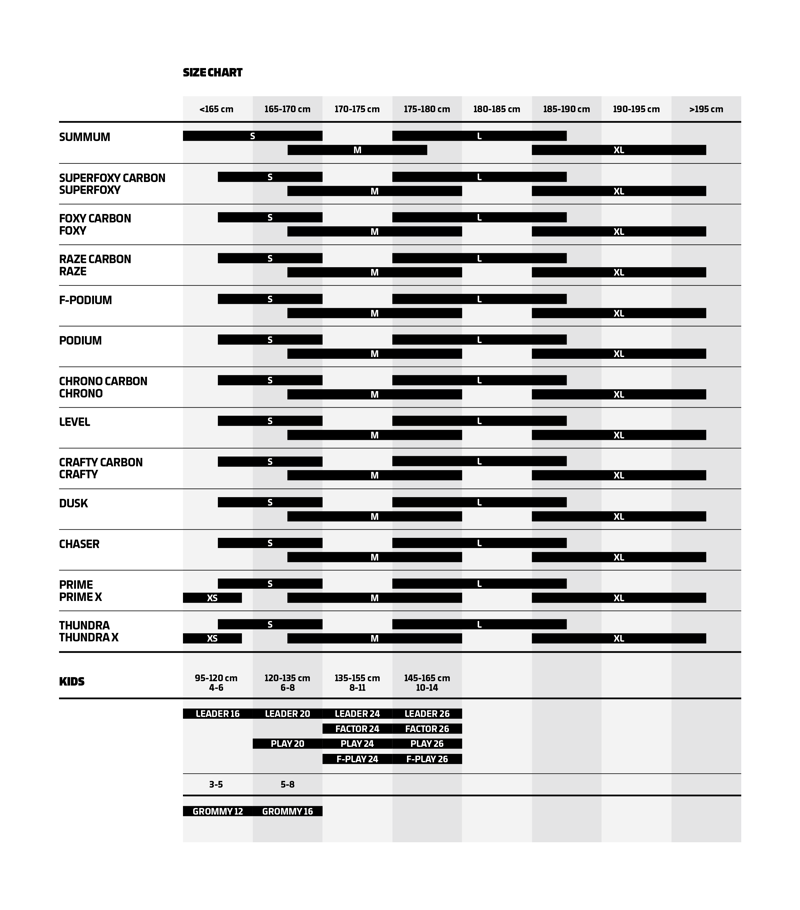

SIZES |
---|
S / M / L / XL 29" and MX |
REAR SHOCK |
---|
Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings |
SHOCK SETTINGS |
---|
ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs |
FORK |
---|
Fox 40 29 Float FIT GRIP2 EVOL Factory Kashima, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: high and low-speed compression, high and low-speed rebound, air preload |
FORK REMOTE |
---|
|
HEADSET |
---|
Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm |
STEM |
---|
Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer |
HANDLEBAR |
---|
Renthal Fatbar series 7 alloy, rise: 30mm, width: 800mm, 7º backsweep, 5º upsweep, 31.8mm barbore |
GRIPS |
---|
Renthal, double lock-on, kevlar compound, 130mmOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer |
SEATPOST |
---|
SDG Micro I-Beam SP-951 Carbon, diameter 31.6mm, length 300mm, micro-adjustment |
SADDLE |
---|
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sidesOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer |
FRONT BRAKE |
---|
Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler |
REAR BRAKE |
---|
Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with coolerOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer |
BRAKE LEVER |
---|
Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust |
RIMS |
---|
e*thirteen LG1 Race Carbon, IW30 29" Hookless, World Cup carbon fiber, 30mm internal width, tubeless ready, 32 spokesOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer |
SPOKES |
---|
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
FRONT HUB |
---|
e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 boltsOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer |
REAR HUB |
---|
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts |
FRONT TYRE |
---|
Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire beadOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer |
REAR TYRE |
---|
Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead |
CRANKSET |
---|
Shimano Saint M825 Hollowtech II, reinforced steel axle, 165mmOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer |
CHAINRING |
---|
36T, aluminum, BCD 104 |
BOTTOM BRACKET |
---|
Shimano 83mmOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer |
PEDALS |
---|
|
CHAIN |
---|
Shimano HG95, 10sOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer |
