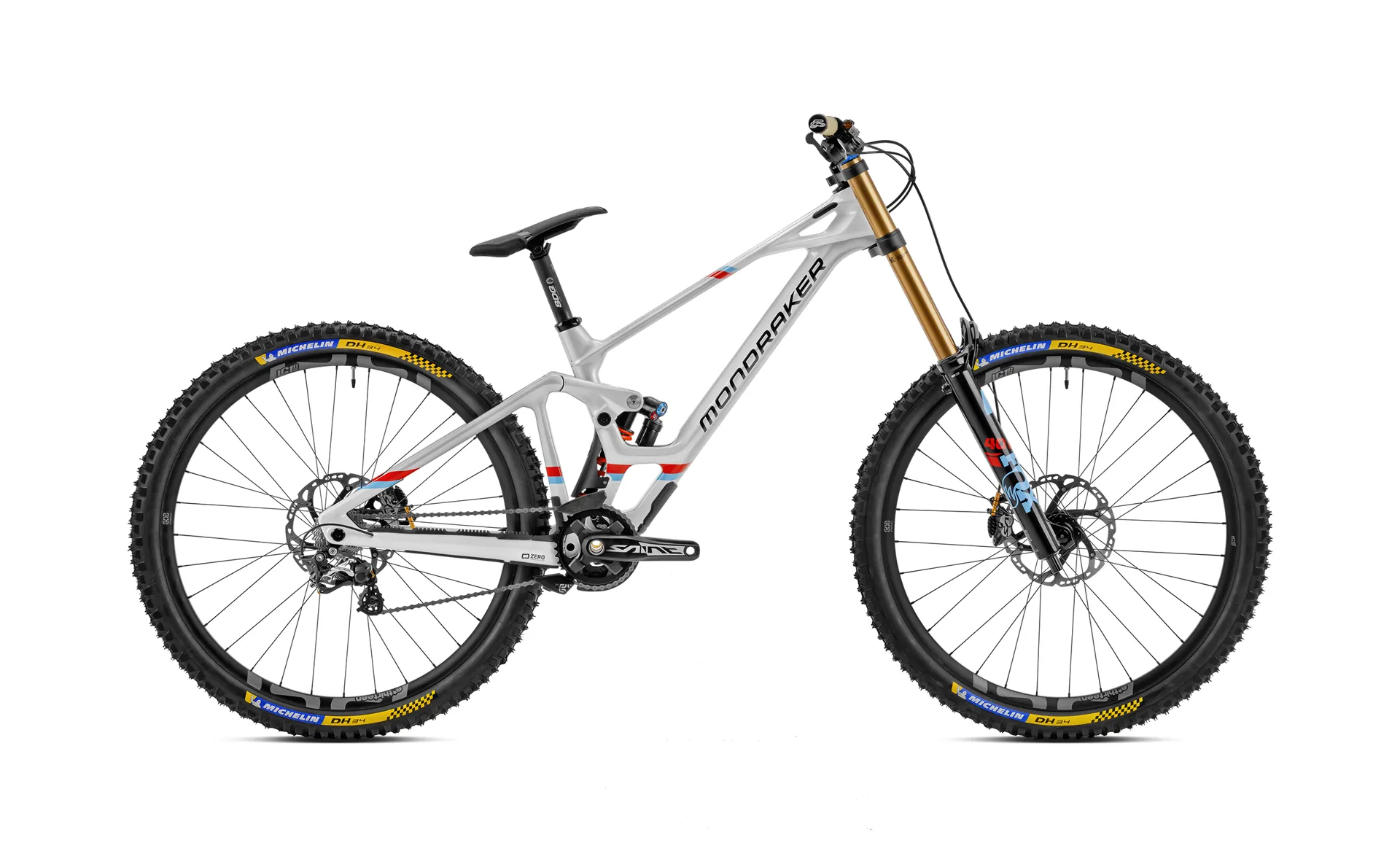

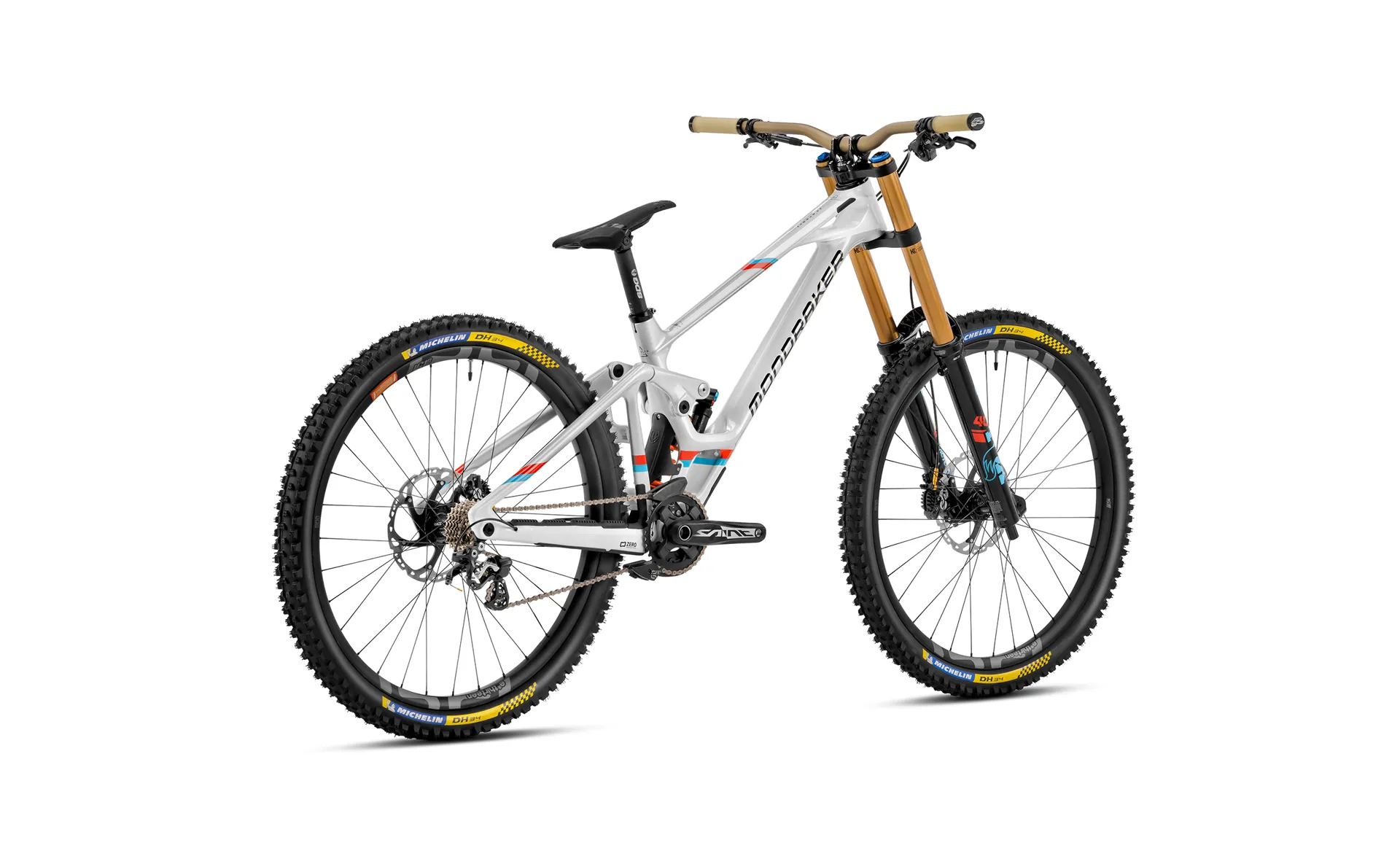

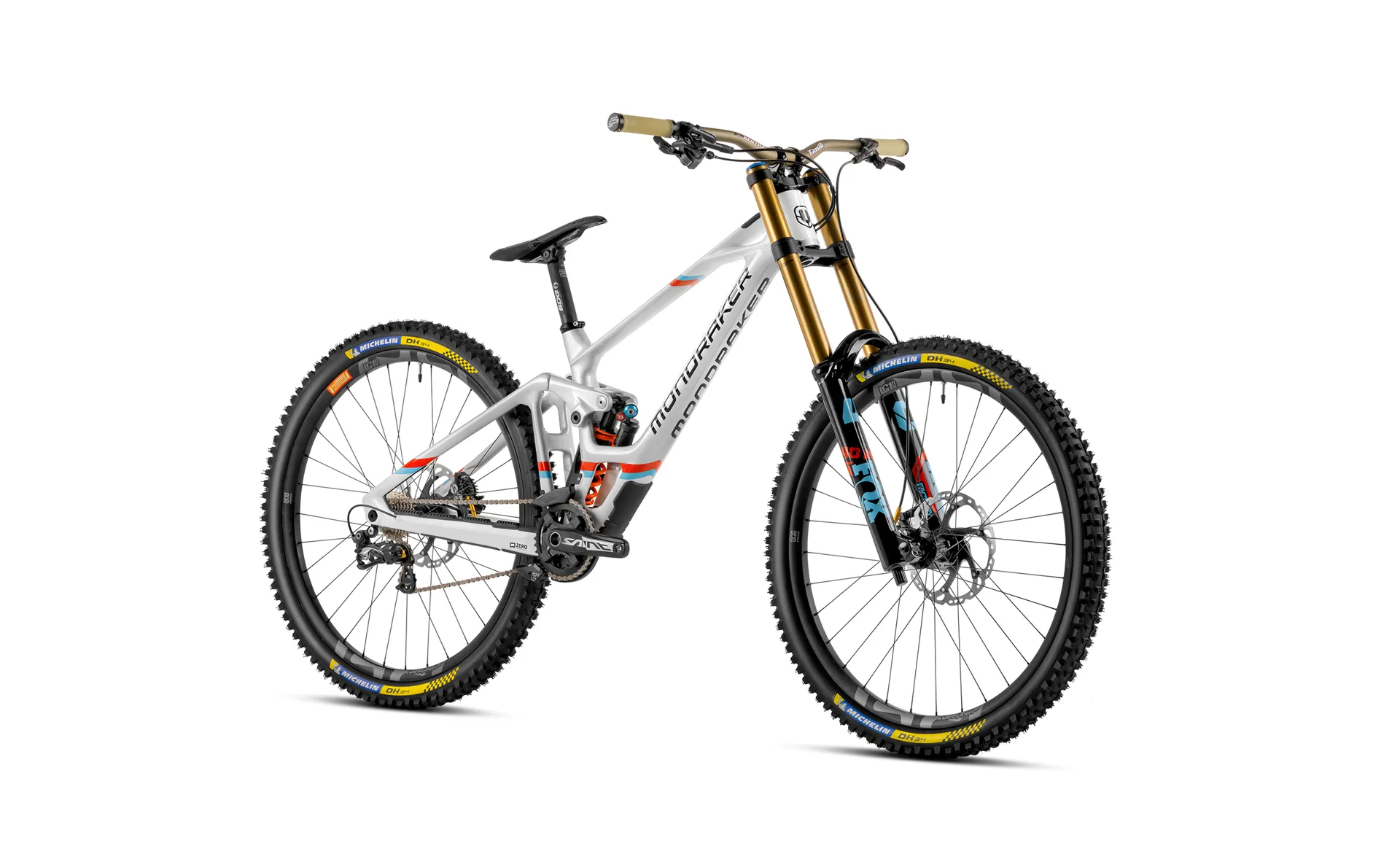

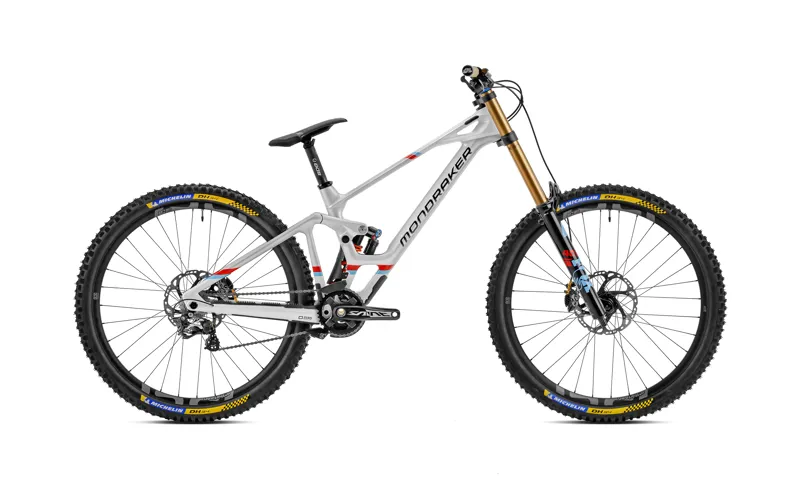

2023 Mondraker Summum RR - Mullet Carbon Downhill Full-Suspension MTB - Silver / White

Season:2023

Brand:Mondraker

Code:010.231.SUMCRB.RRMX.23

The SUMMUM CARBON RR is the bike our MS Mondraker Team rides.

It’s the same bike Eleonora Farina rode to several podiums in the World Cup this season. A benchmark on the international circuit for its lightness, shock absorption and rigidity, it’s got all of Mondraker’s cutting edge technologies such as STEALTH AIR FULL CARBON, FORWARD GEOMETRY, ZERO SUSPENSION SYSTEM and MIND, the latter which helps you fully optimize both front and rear suspension to truly bring out the best in them.

You also have the option of running 29” wheels both front and back or the MX option with a 29" wheel up front and a 27.5" out back. The bike comes complete with a geometry kit to optimize the geometry for the ultimate personal set-up.
Technical Information
MODEL
SUMMUM CARBON RR
FRAME
Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included. MIND System (EU only)
SIZES
S / M / L / XL 29" and MX
REAR SHOCK
Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
SHOCK SETTINGS
ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs
FORK
Fox 40 29 Float FIT GRIP2 EVOL Factory Kashima, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: high and low-speed compression, high and low-speed rebound, air preload
FORK REMOTE
HEADSET
Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
STEM
Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
HANDLEBAR
Renthal Fatbar series 7 alloy, rise: 30mm, width: 800mm, 7º backsweep, 5º upsweep, 31.8mm barbore
GRIPS
Renthal, double lock-on, kevlar compound, 130mmOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
SEATPOST
SDG Micro I-Beam SP-951 Carbon, diameter 31.6mm, length 300mm, micro-adjustment
SADDLE
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sidesOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
FRONT BRAKE
Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler
REAR BRAKE
Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with coolerOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
BRAKE LEVER
Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust
RIMS
e*thirteen LG1 Race Carbon, IW30 29" Hookless, World Cup carbon fiber, 30mm internal width, tubeless ready, 32 spokesOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
SPOKES
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
FRONT HUB
e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 boltsOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
REAR HUB
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts
FRONT TYRE
Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire beadOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
REAR TYRE
Michelin DH34 27.5, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
CRANKSET
Shimano Saint M825 Hollowtech II, reinforced steel axle, 165mmOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
CHAINRING
36T, aluminum, BCD 104
BOTTOM BRACKET
Shimano 83mmOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
PEDALS
CHAIN
Shimano HG95, 10sOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer

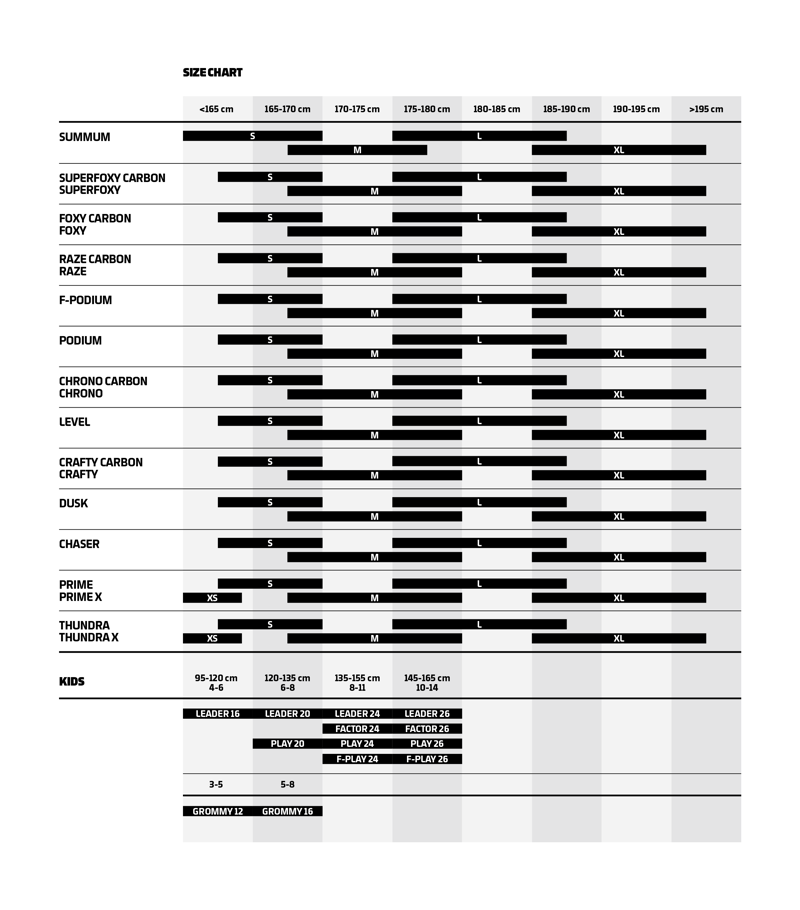

Sizing Information
Summum RR MX Carbon geometry

FRAME SIZESMLXL
ASeattube length400 mm400 mm400 mm400 mm
BToptube length575 mm595 mm620 mm645 mm
CBottom bracket drop-20 mm-20 mm-20 mm-20 mm
DBottom bracket height350 mm350 mm350 mm350 mm
EChainstay length450/455/460 mm450/455/460 mm450/455/460 mm450/455/460 mm
FSeat tube angle69°68.5º69°69°
GEffective seattube angle77°77°77°77°
HHeadtube angle63º63,5º63,5º63,5º
IFork Offset56 mm56 mm56 mm56 mm
JWheelbase1260 mm1270 mm1295 mm1320 mm
KHeadtube length110 mm110 mm112 mm112 mm
LReach430 mm450 mm475 mm500 mm
MStack632 mm633 mm632 mm632 mm
