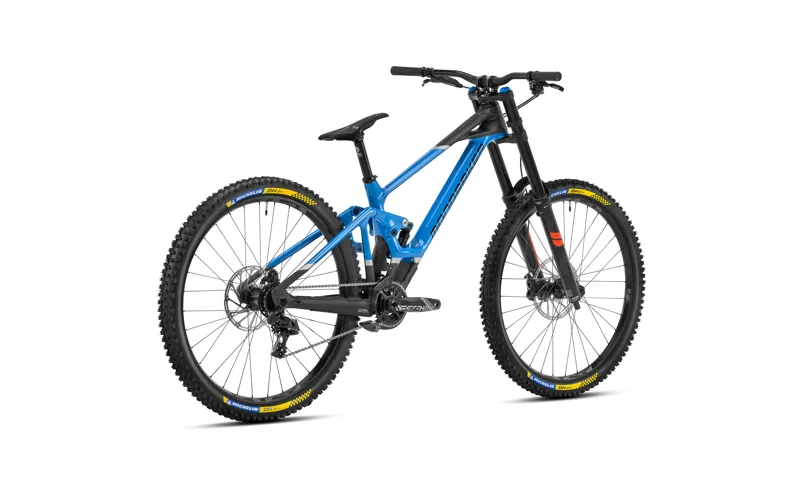

2023 Mondraker Summum R - 29 Inch Carbon Downhill Full-Suspension MTB - Black / Blue

Season:2023

Brand:Mondraker

Code:010.231.SUMCRB.R29.23

The kid sister of the SUMMUM CARBON has a frame made of hydroformed 6061 aluminium and Mondraker’s cutting edge technologies: ALLOY STEALTH EVO, ZERO SUSPENSION SYSTEM and FORWARD GEOMETRY. Its amazing light weight together with its bang up to date geometry gives you stunning handling.

There’s the MX version with a 27.5" rear wheel and a 29" front wheel to choose from as well. You can also go one step further and get the optional geometry change kit to fully customize the ride characteristics to your personal preference.
Technical Information
MODEL
SUMMUM CARBON R
FRAME
Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit. MIND System (EU only)
SIZES
S / M / L / XL 29" and MX
REAR SHOCK
Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
SHOCK SETTINGS
ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs
FORK
Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload
FORK REMOTE
HEADSET
Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
STEM
Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
HANDLEBAR
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPS
Onoff Desert, 1lock-on, 135mmOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
SEATPOST
SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment
SADDLE
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sidesOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
FRONT BRAKE
Sram Code R, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
REAR BRAKE
Sram Code R, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered padsOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
BRAKE LEVER
Sram Code R, tool-free reach adjust
RIMS
e*thirteen LG1 Plus DH, IW29 29" Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokesOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
SPOKES
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
FRONT HUB
e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 boltsOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
REAR HUB
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts
FRONT TYRE
Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire beadOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
REAR TYRE
Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
CRANKSET
Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mmOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
CHAINRING
34T, steel, X-SYNC
BOTTOM BRACKET
Sram DUB BSA, sealed bearings, 83mmOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
PEDALS
CHAIN
Sram PC1110 11s, PowerlockOnoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer

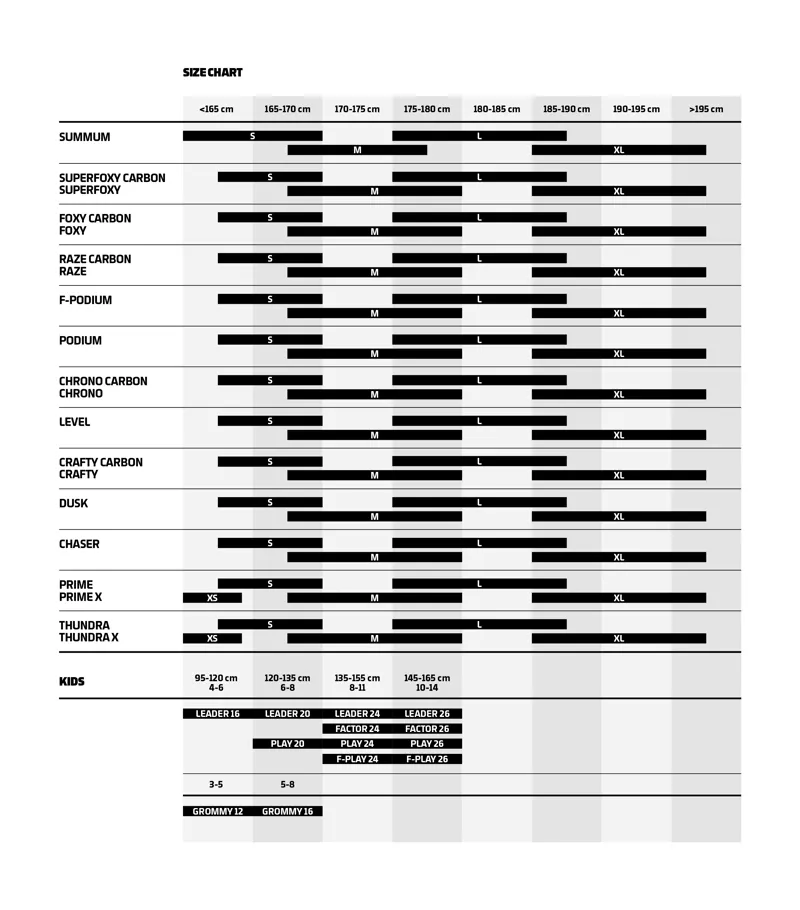

Sizing Information
Mondraker Summum R Carbon geometry
FRAME SIZESMLXL
ASeattube length400 mm400 mm400 mm400 mm
BToptube length573 mm593 mm618 mm643 mm
CBottom bracket drop-20 mm-20 mm-20 mm-20 mm
DBottom bracket height350 mm350 mm350 mm350 mm
EChainstay length450 mm450 mm450 mm450 mm
FSeat tube angle69°69°69°69°
GEffective seattube angle77°77°77°77°
HHeadtube angle63º63,5º63,5º63,5º
IFork Offset58 mm58 mm58 mm58 mm
JWheelbase1260 mm1270 mm1295 mm1320 mm
KHeadtube length112 mm112 mm112 mm112 mm
LReach430 mm450 mm475 mm500 mm
MStack632 mm632 mm632 mm632 mm
