MODEL |
---|

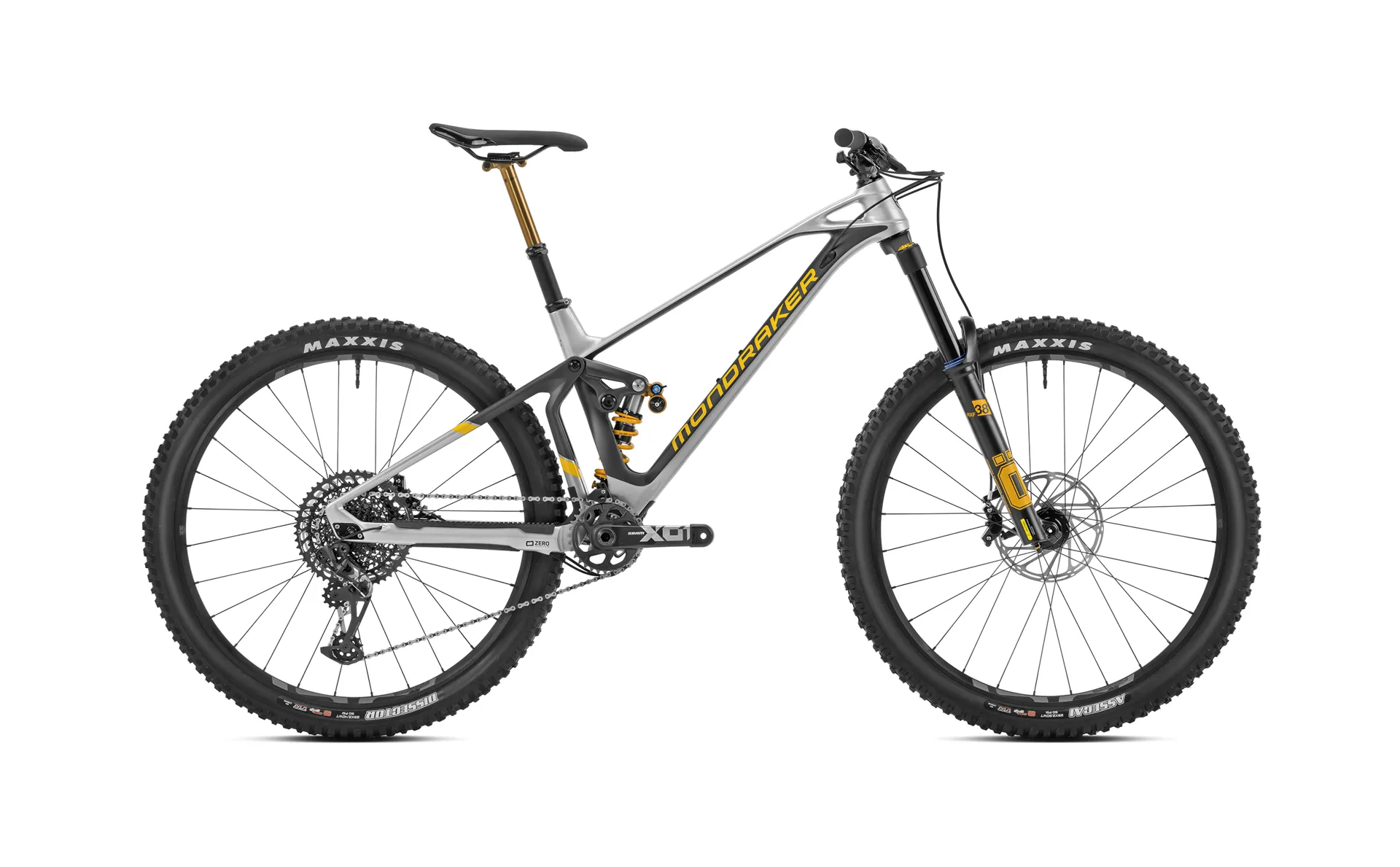

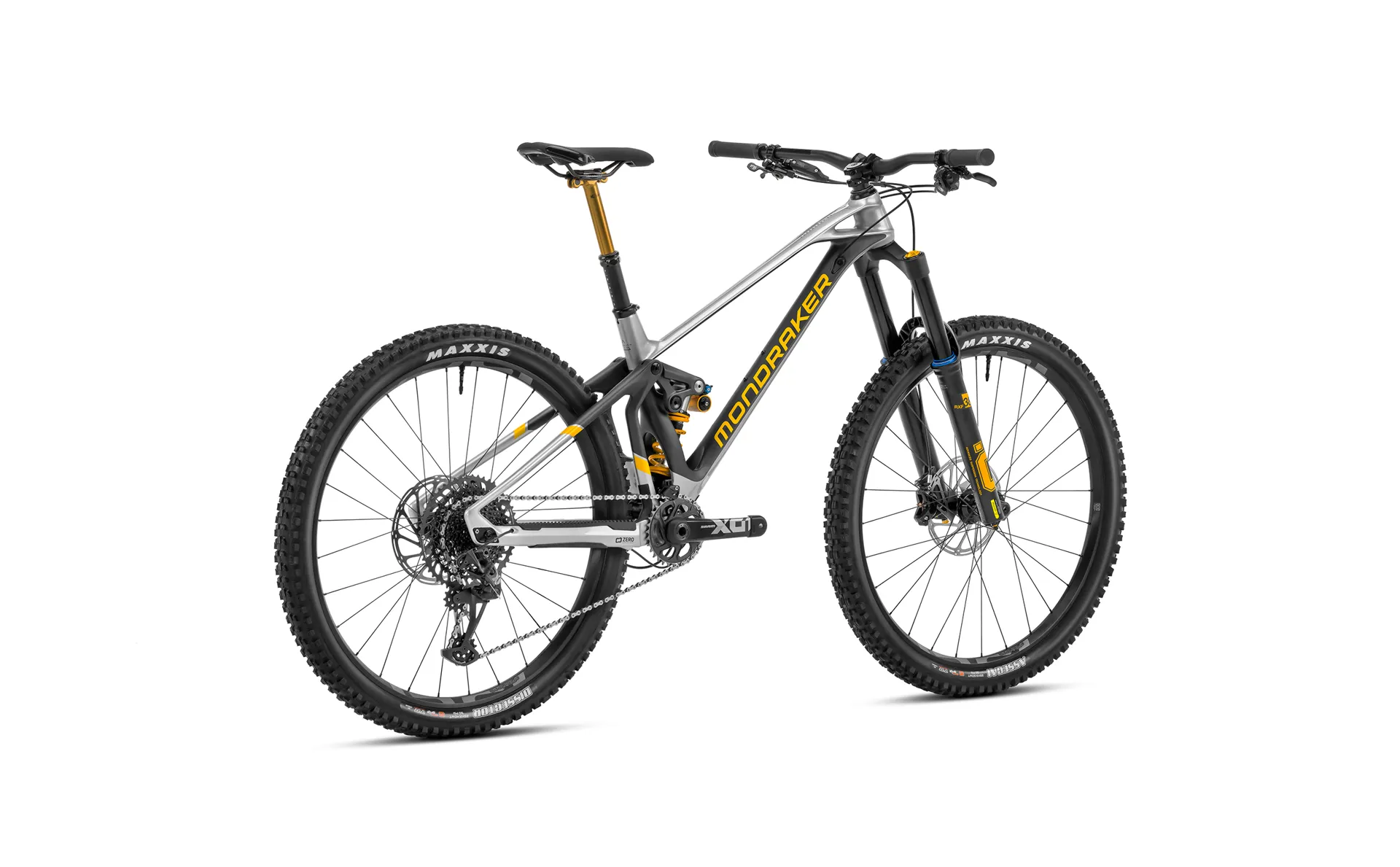

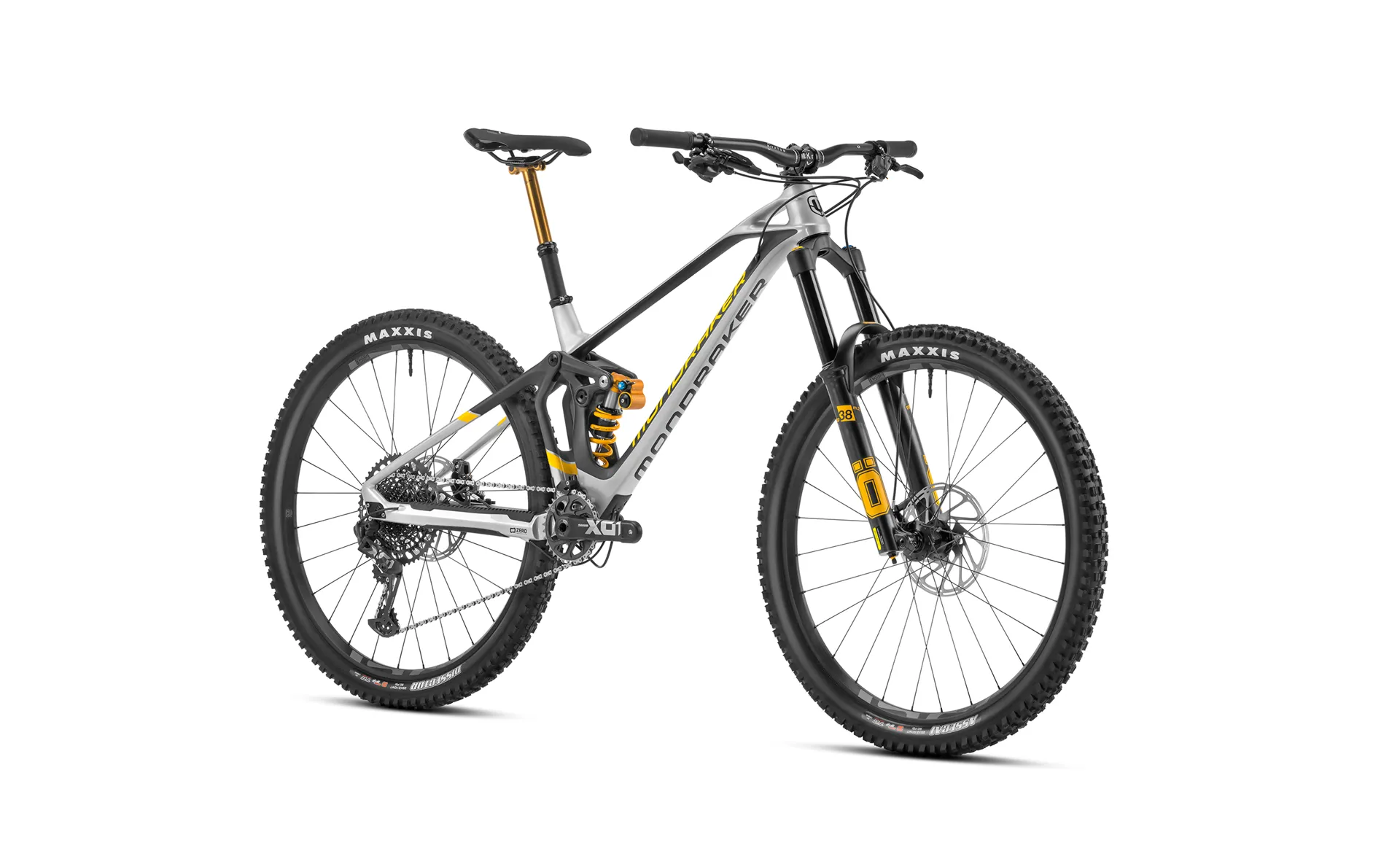

SUPERFOXY CARBON RR |
FRAME |
---|
SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included |

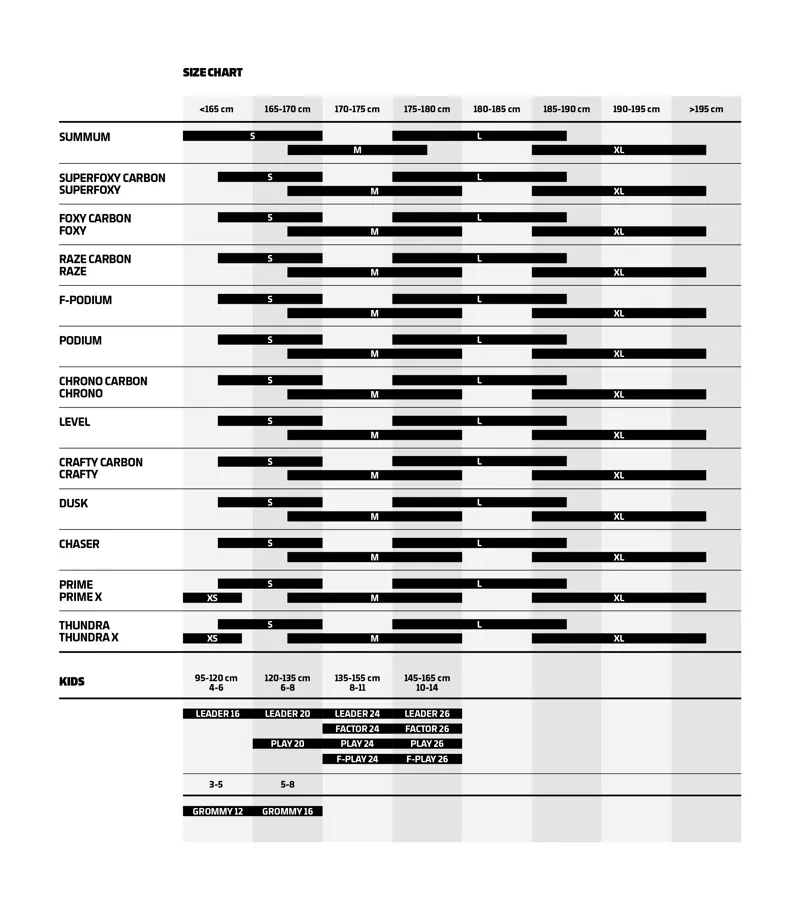

SIZES |
---|
S: 380mm / M: 420mm / L: 470mm / XL: 510mm |
REAR SHOCK |
---|
Öhlins TTX 22M Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings |
SHOCK SETTINGS |
---|
C10 compression, R35 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs |
FORK |
---|
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
FORK REMOTE |
---|
|
HEADSET |
---|
Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º |
STEM |
---|
Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
HANDLEBAR |
---|
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
GRIPS |
---|
Onoff Desert, 1lock-on, 135mmOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
SEATPOST |
---|
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x175mm |
SADDLE |
---|
SDG BEL-AIR 3.0, LPU foam, steel railsOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
FRONT BRAKE |
---|
Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
REAR BRAKE |
---|
Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered padsOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
BRAKE LEVER |
---|
Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
RIMS |
---|
e*thirteen LG1 Plus Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokesOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
SPOKES |
---|
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
FRONT HUB |
---|
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 boltsOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
REAR HUB |
---|
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
FRONT TYRE |
---|
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding beadOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
REAR TYRE |
---|
Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
CRANKSET |
---|
Sram X01 Carbon Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mmOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
CHAINRING |
---|
32T, CNC-machined alloy, X-SYNC 2 |
BOTTOM BRACKET |
---|
Sram DUB BSA, sealed bearings, 73mmOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
PEDALS |
---|
|
CHAIN |
---|
Sram GX Eagle, 12s, PowerlockOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
