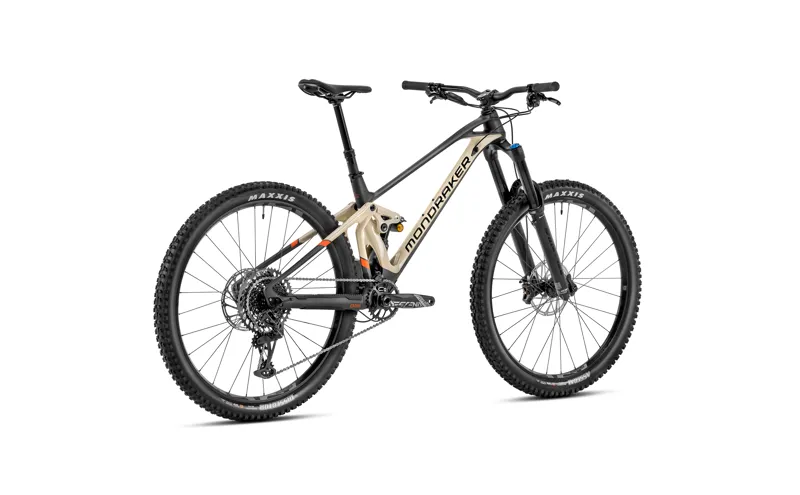

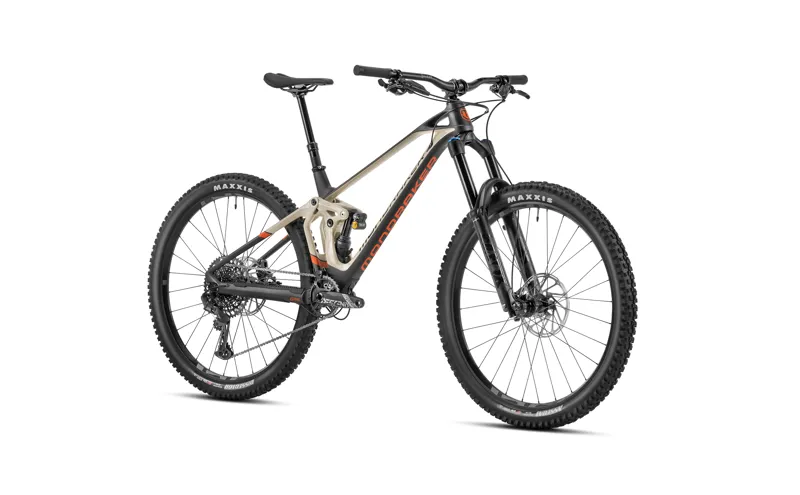

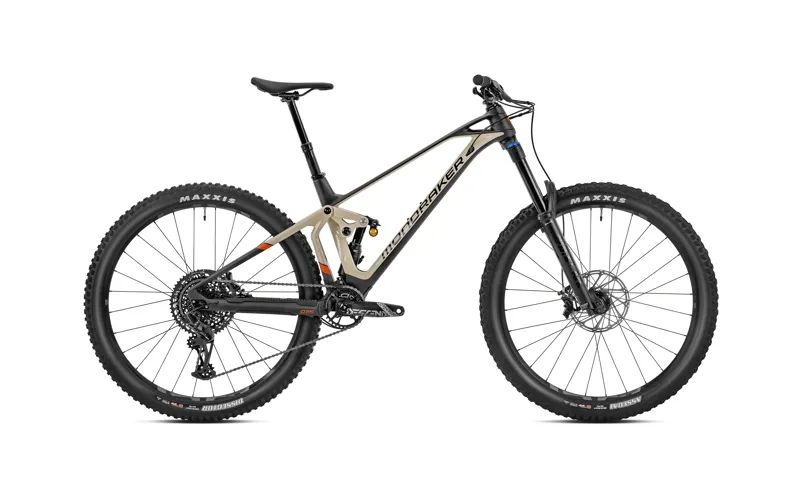

2023 Mondraker Superfoxy R - 29 Inch Carbon Super Enduro Full-Suspension MTB - Black / Brown

Season:2023

Brand:Mondraker

Code:010.2314.SUPFOXY.CRBR.23

Just like the SUMMUM CARBON, which is the lightest bike on the international DH circuit, the SUPERFOXY CARBON follows suit in what we think of as the Super Enduro category.

170mm of front suspension travel and 160mm at the rear leave no doubt as to what this bike is all about, and best of all, thanks to the 12-speed SRAM transmission you can climb all the way to the top to take another shot!

Light and flickable, the Fox 38 fork and Öhlins TTX Air shock combined with a SuperBoost 12x157mm frame and swingarm will give you unprecedented stiffness that make the most brutal lines seem like child's play.
Technical Information
MODEL
SUPERFOXY CARBON R
FRAME
SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit
SIZES
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
REAR SHOCK
Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
SHOCK SETTINGS
C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
FORK
Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
FORK REMOTE
HEADSET
Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
STEM
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
HANDLEBAR
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPS
Onoff Desert, 1lock-on, 135mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
SEATPOST
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
SADDLE
SDG BEL-AIR 3.0, LPU foam, steel railsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
FRONT BRAKE
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
REAR BRAKE
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered padsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
BRAKE LEVER
Sram Code R, tool-free reach adjust
RIMS
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokesOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
SPOKES
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
FRONT HUB
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 boltsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
REAR HUB
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
FRONT TYRE
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding beadOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
REAR TYRE
Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
CRANKSET
Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
CHAINRING
32T, CNC-machined alloy, X-SYNC 2
BOTTOM BRACKET
Sram DUB BSA, sealed bearings, 73mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
PEDALS
CHAIN
Sram NX Eagle, 12s, PowerlockOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

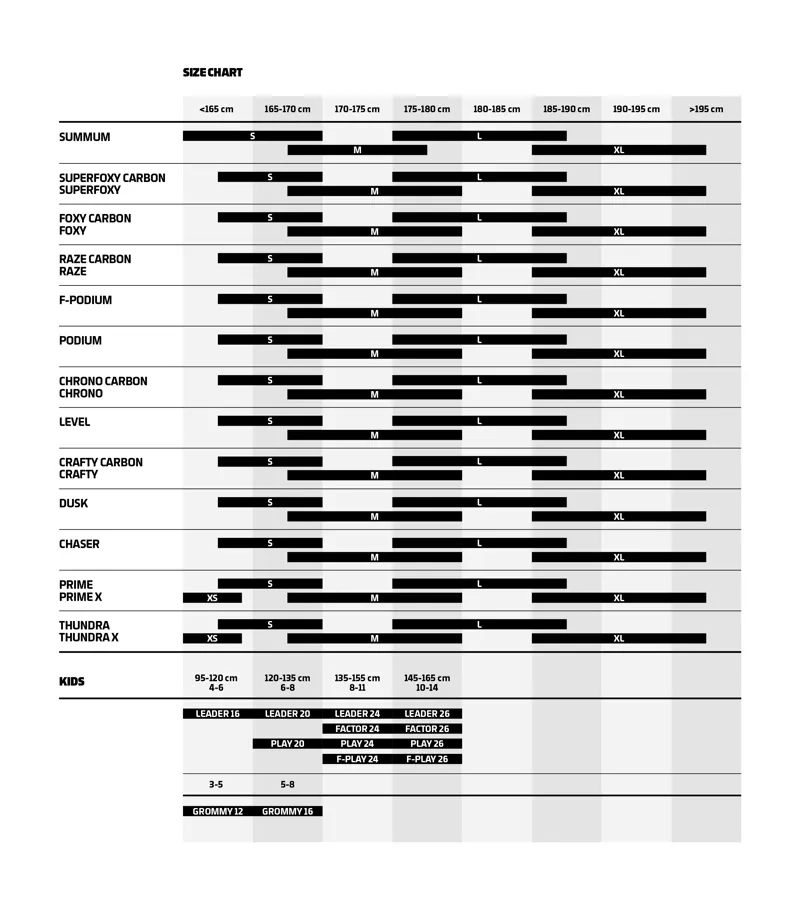

Sizing Information
Mondraker Superfoxy R Carbon geometry

FRAME SIZESMLXL
ASeattube length380 mm420 mm470 mm510 mm
BToptube length603 mm626 mm651 mm675 mm
CBottom bracket drop-14 mm-14 mm-14 mm-14 mm
DBottom bracket height357 mm357 mm357 mm357 mm
EChainstay length440 - 450 mm440 - 450 mm440 - 450 mm440 - 450 mm
FSeat tube angle70.5°70.5°70.5°70.5°
GEffective seattube angle75.575.5°75.5°75.5°
HHeadtube angle65°65°65°65°
IFork Offset44 mm44 mm44 mm44 mm
JWheelbase1207 mm1230 mm1256 mm1283 mm
KHeadtube length90 mm100 mm115 mm130 mm
LReach450 mm470 mm490 mm510 mm
MStack605 mm605 mm642 mm642 mm
