MODEL |
---|

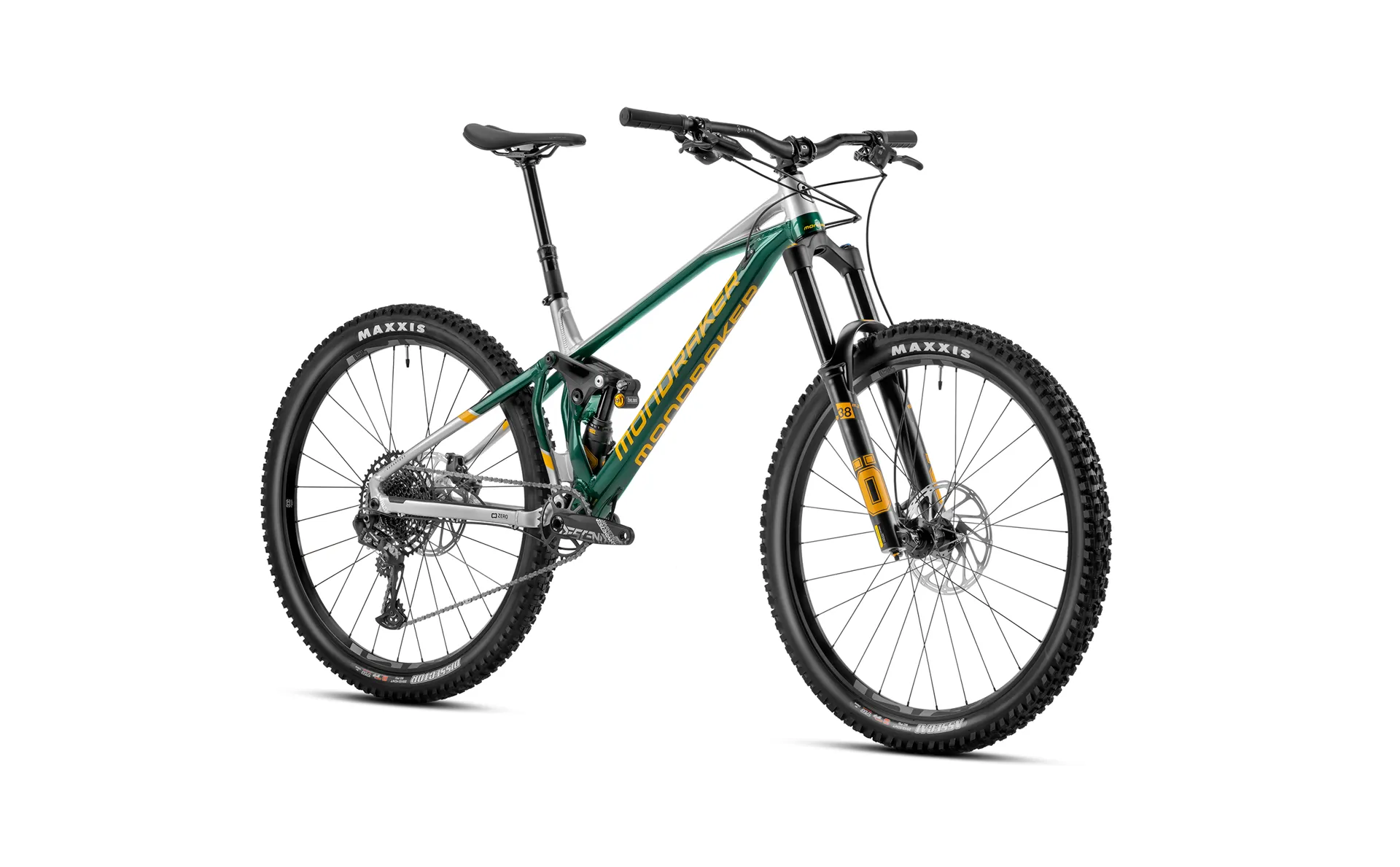

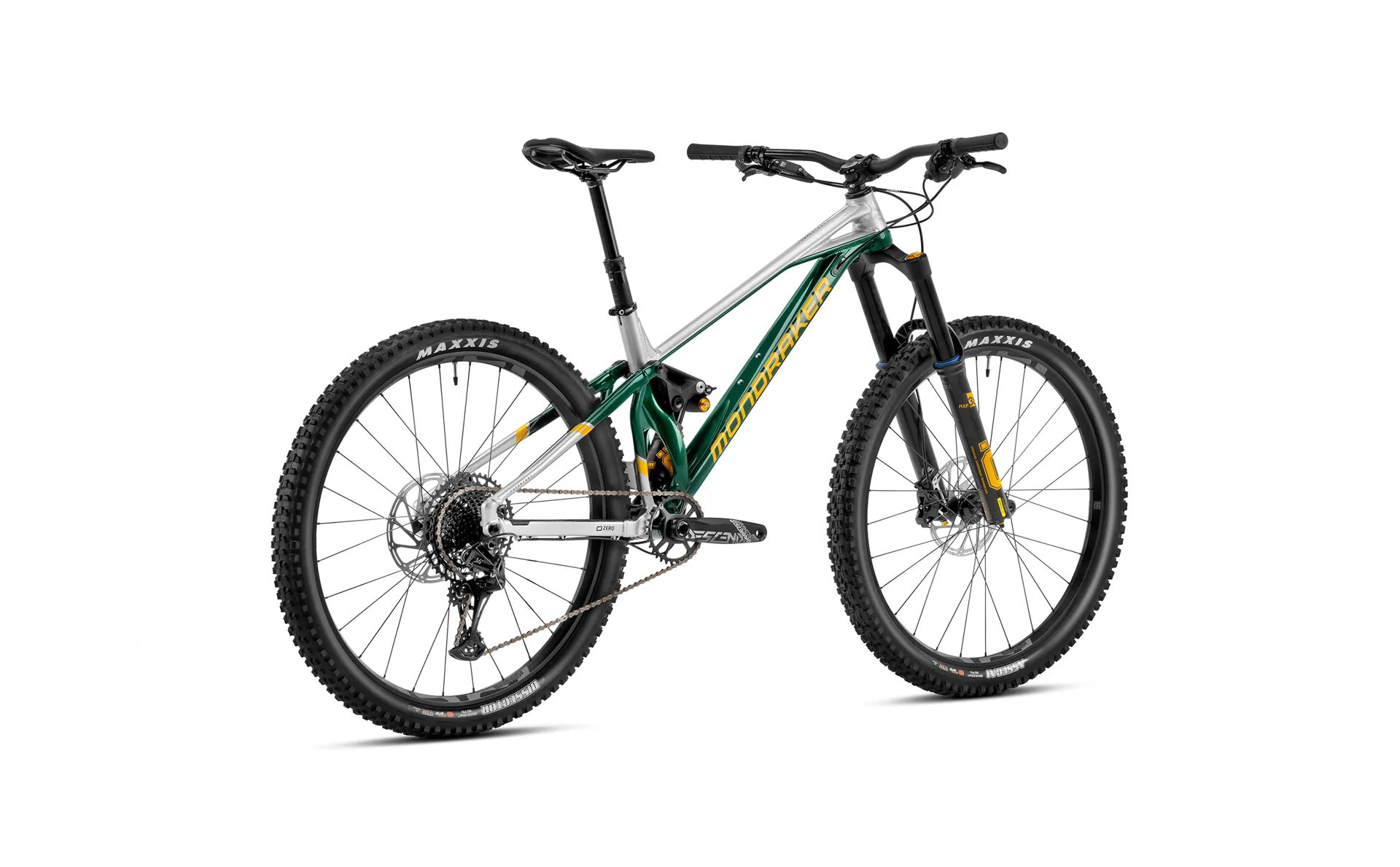

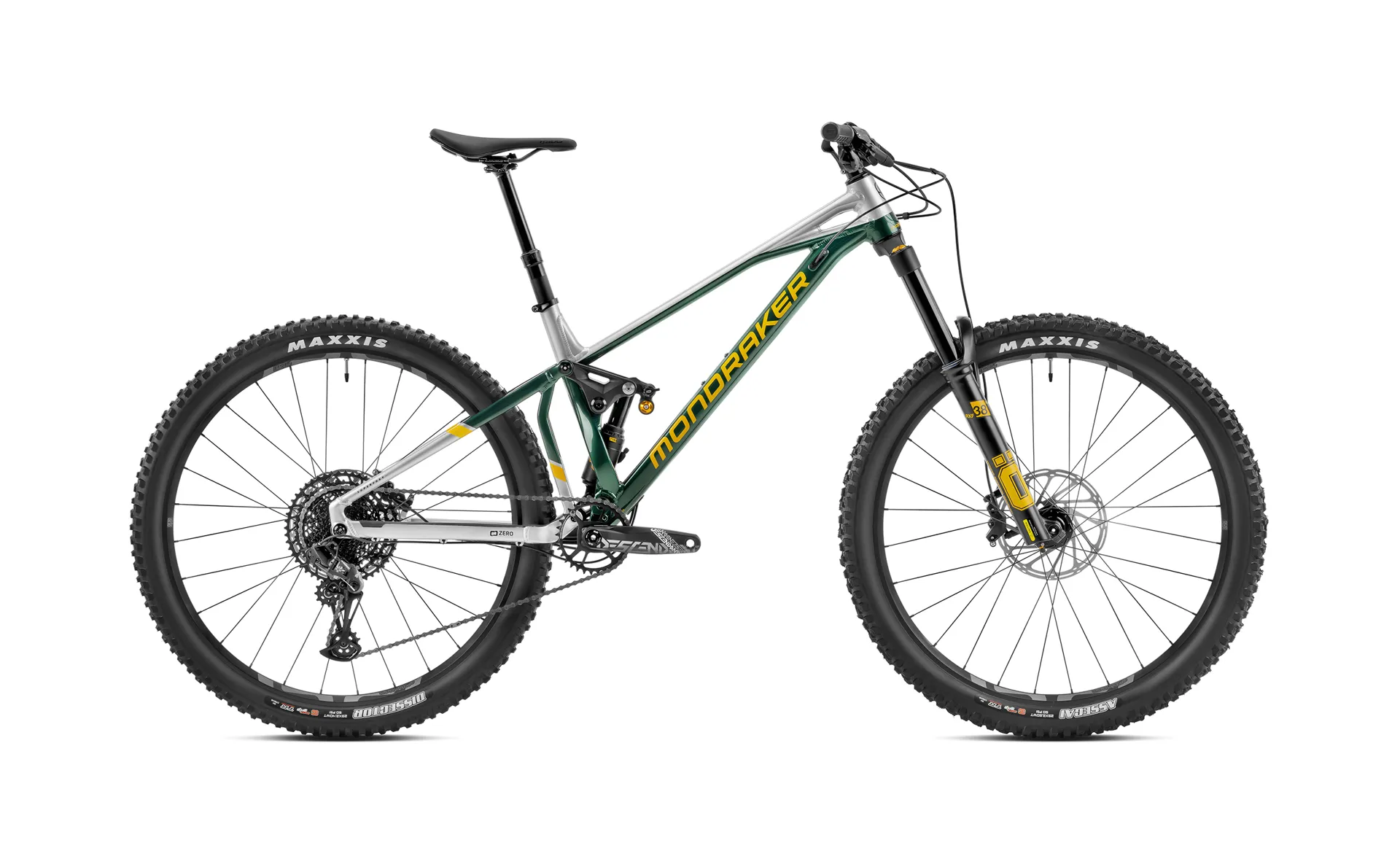

SUPERFOXY R |
FRAME |
---|
SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05 |
SIZES |
---|

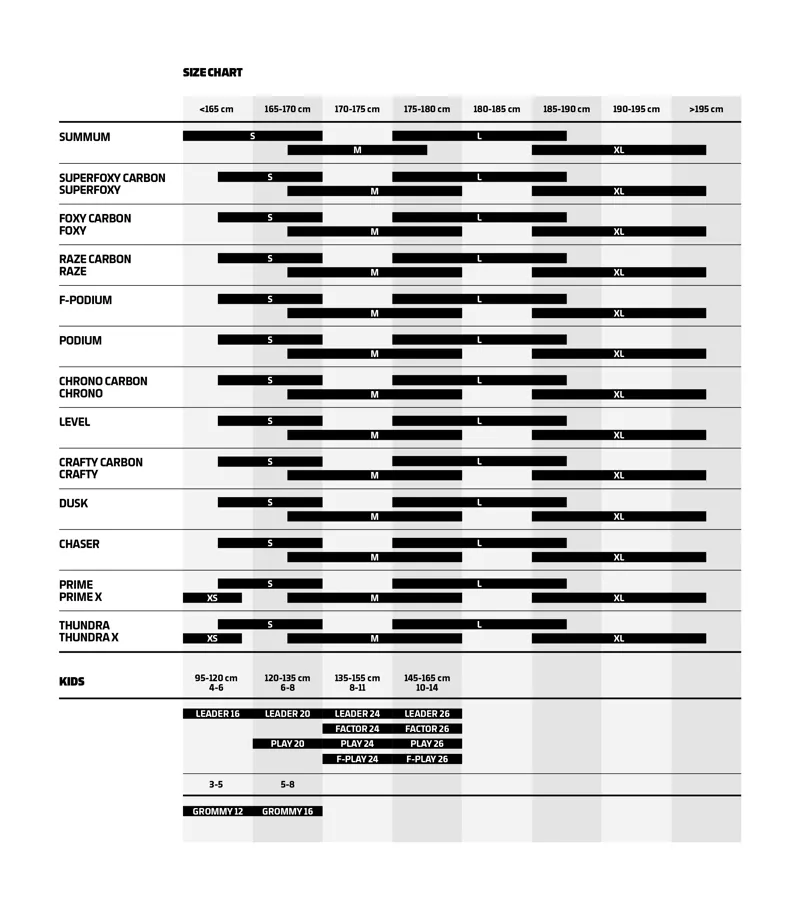

S: 380mm / M: 420mm / L: 470mm / XL: 510mm |
REAR SHOCK |
---|
Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings |
SHOCK SETTINGS |
---|
C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E) |
FORK |
---|
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
FORK REMOTE |
---|
|
HEADSET |
---|
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
STEM |
---|
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
HANDLEBAR |
---|
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
GRIPS |
---|
Onoff Twin, 1lock-on, 135mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
SEATPOST |
---|
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
SADDLE |
---|
SDG BEL-AIR 3.0, LPU foam, steel railsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
FRONT BRAKE |
---|
Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
REAR BRAKE |
---|
Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered padsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
BRAKE LEVER |
---|
Sram DB8, tool-free reach adjust |
RIMS |
---|
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokesOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
SPOKES |
---|
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
FRONT HUB |
---|
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 boltsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
REAR HUB |
---|
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub |
FRONT TYRE |
---|
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding beadOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
REAR TYRE |
---|
Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
CRANKSET |
---|
Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
CHAINRING |
---|
32T, CNC-machined alloy, X-SYNC 2 |
BOTTOM BRACKET |
---|
Sram DUB BSA, sealed bearings, 73mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
PEDALS |
---|
|
CHAIN |
---|
Sram SX Eagle, 12s, PowerlockOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
