| MODEL |
|---|

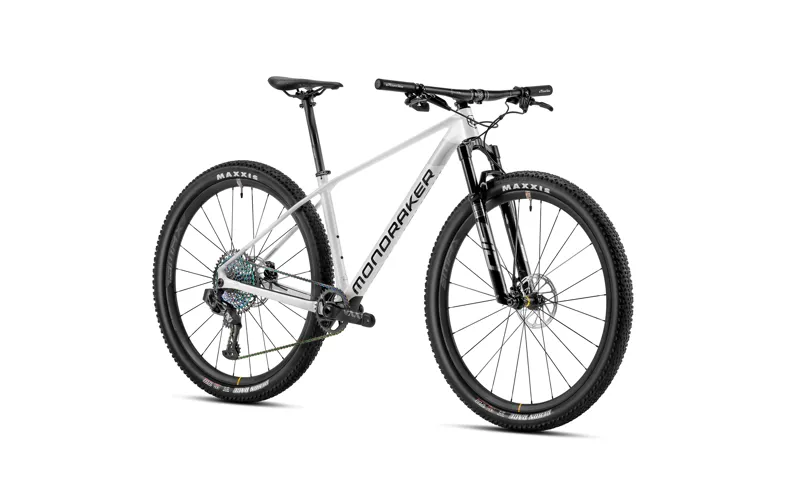

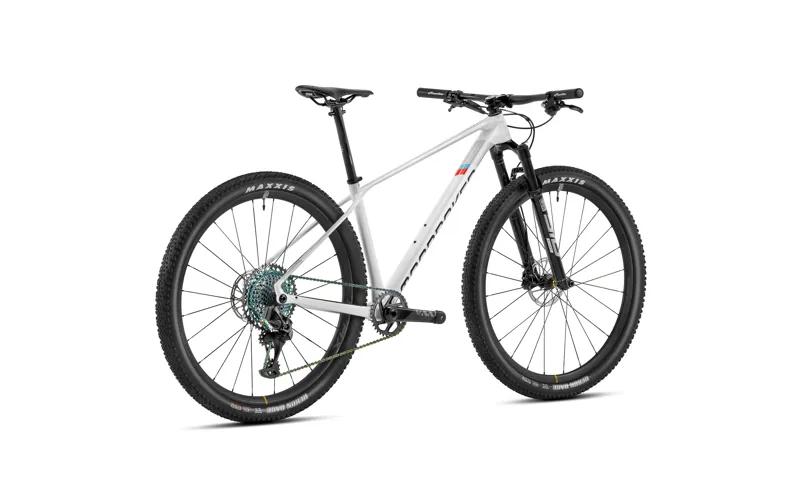

| PODIUM CARBON RR SL |
| FRAME |
|---|
| Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible, |

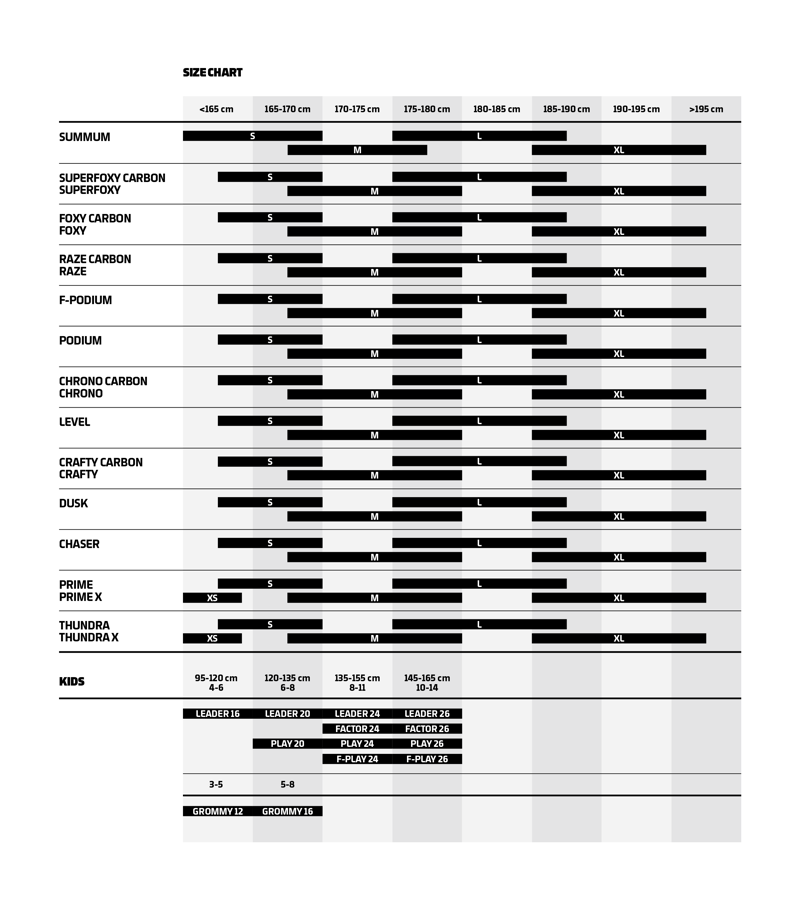

| SIZES |
|---|
| S: 390mm / M: 420mm / L: 470mm / XL: 510mm |
| REAR SHOCK |
|---|
|
| SHOCK SETTINGS |
|---|
|
| FORK |
|---|
| Rockshox SID SL Ultimate RL 29, 100mm, Charger Race day, DebonAir, tapered steerer tube, Boost 15x110mm axle, 32mm aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload |
| FORK REMOTE |
|---|
| RockShox OneLoc |
| HEADSET |
|---|
| Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º |
| STEM |
|---|
| Onoff Helium 7075 alloy CNC, 31.8mm barbore, rise: +/-8º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| HANDLEBAR |
|---|
| Onoff Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| GRIPS |
|---|
| LIZARD DSP 30.3Onoff Helium 7075 alloy CNC, 31.8mm barbore, rise: +/-8º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| SEATPOST |
|---|
| Onoff Helium Carbon 0-R VFLEX, diameter 27.2mm, length 400mm |
| SADDLE |
|---|
| Fizik Antares R7Onoff Helium 7075 alloy CNC, 31.8mm barbore, rise: +/-8º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| FRONT BRAKE |
|---|
| Sram Level Ultimate, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, titanium hardware |
| REAR BRAKE |
|---|
| Sram Level Ultimate, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, titanium hardwareOnoff Helium 7075 alloy CNC, 31.8mm barbore, rise: +/-8º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| BRAKE LEVER |
|---|
| Sram Level Ultimate, carbon lever, Direct Link actuation, tooled reach adjust, lever pivot bearings, titanium hardware |
| RIMS |
|---|
| Mavic Crossmax Carbon SL Ultimate 29, 25mm internal width, hookless, tubeless ready, 24 spokesOnoff Helium 7075 alloy CNC, 31.8mm barbore, rise: +/-8º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| SPOKES |
|---|
| Mavic straight-pull double butted, contactless lacing |
| FRONT HUB |
|---|
| Mavic, Boost 15x110mm, IS 6 boltsOnoff Helium 7075 alloy CNC, 31.8mm barbore, rise: +/-8º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| REAR HUB |
|---|
| Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub |
| FRONT TYRE |
|---|
| Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding beadOnoff Helium 7075 alloy CNC, 31.8mm barbore, rise: +/-8º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| REAR TYRE |
|---|
| Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead |
| CRANKSET |
|---|
| Sram XX1 Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm, M/L/XL size: 175mmOnoff Helium 7075 alloy CNC, 31.8mm barbore, rise: +/-8º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| CHAINRING |
|---|
| 34T, CNC-machined alloy, X-SYNC 2 |
| BOTTOM BRACKET |
|---|
| Sram DUB BSA, sealed bearings, 73mmOnoff Helium 7075 alloy CNC, 31.8mm barbore, rise: +/-8º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| PEDALS |
|---|
|
| CHAIN |
|---|
| Sram XX1 Eagle, 12s rainbow, PowerlockOnoff Helium 7075 alloy CNC, 31.8mm barbore, rise: +/-8º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
