| MODEL |
|---|

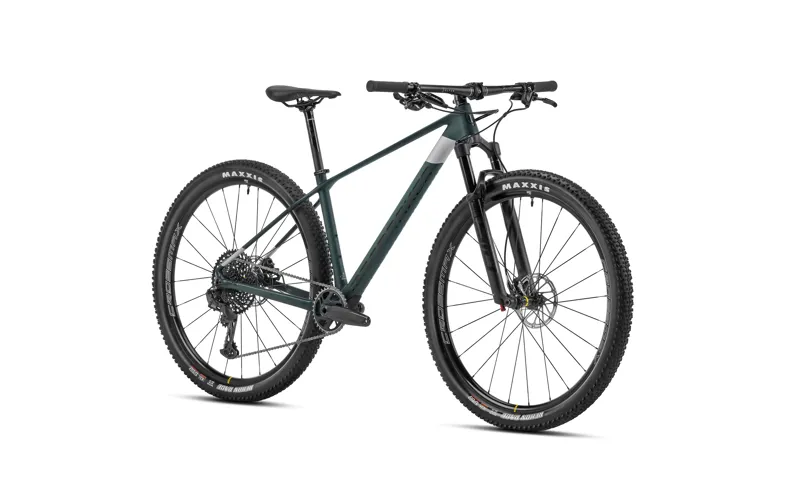

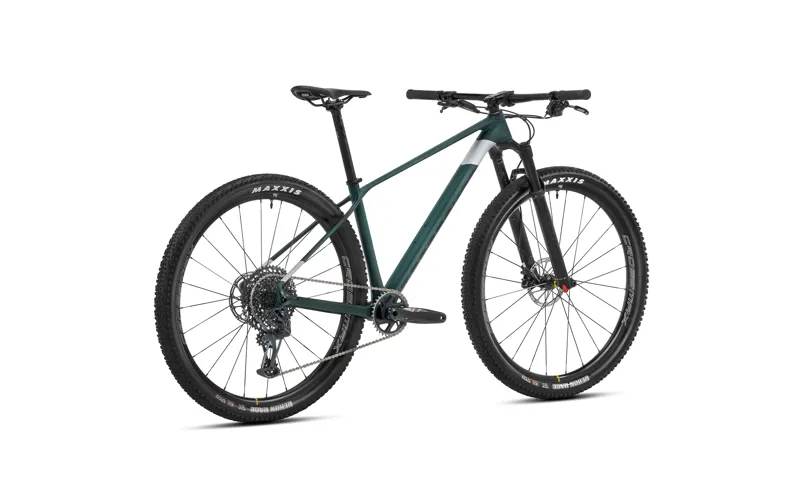

| PODIUM CARBON |
| FRAME |
|---|
| Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible, |

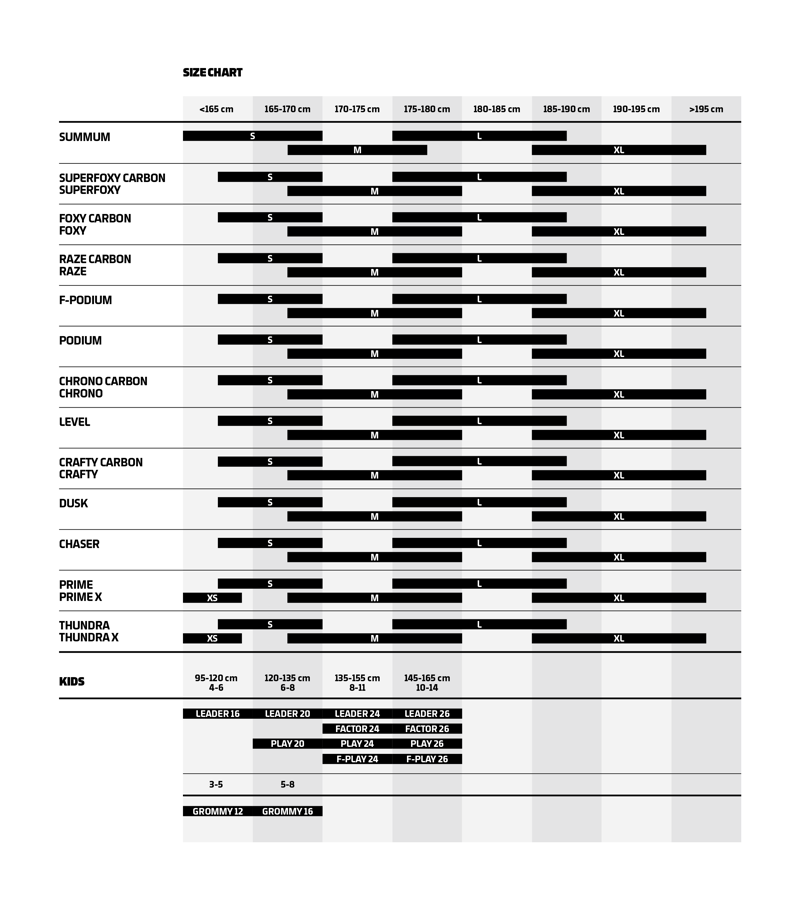

| SIZES |
|---|
| S: 390mm / M: 420mm / L: 470mm / XL: 510mm |
| REAR SHOCK |
|---|
|
| SHOCK SETTINGS |
|---|
|
| FORK |
|---|
| Rockshox SID SL Base RL 29, 100mm, Charger, DebonAir, tapered steerer tube, Boost 15x110mm axle, 32mm aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload |
| FORK REMOTE |
|---|
| RockShox OneLoc |
| HEADSET |
|---|
| Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º |
| STEM |
|---|
| MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| HANDLEBAR |
|---|
| Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| GRIPS |
|---|
| Onoff Twin, 1lock-on, 135mmMDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| SEATPOST |
|---|
| Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm |
| SADDLE |
|---|
| Fizik Antares R7MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| FRONT BRAKE |
|---|
| Sram Level TL, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| REAR BRAKE |
|---|
| Sram Level TL, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic padMDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| BRAKE LEVER |
|---|
| Sram Level TL, Direct Link actuation, tooled reach adjust, lever pivot bushings |
| RIMS |
|---|
| Mavic Crossmax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokesMDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| SPOKES |
|---|
| Mavic straight-pull double butted, contactless lacing |
| FRONT HUB |
|---|
| Mavic, Boost 15x110mm, IS 6 boltsMDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| REAR HUB |
|---|
| Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub |
| FRONT TYRE |
|---|
| Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding beadMDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| REAR TYRE |
|---|
| Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead |
| CRANKSET |
|---|
| Sram GX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mmMDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| CHAINRING |
|---|
| 34T, CNC-machined alloy, X-SYNC 2 |
| BOTTOM BRACKET |
|---|
| Sram DUB BSA, sealed bearings, 73mmMDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
| PEDALS |
|---|
|
| CHAIN |
|---|
| Sram NX Eagle, 12s, PowerlockMDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm |
