MODEL |
---|
FOXY CARBON XR |
FRAME |
---|
Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included. MIND System (EU only) |

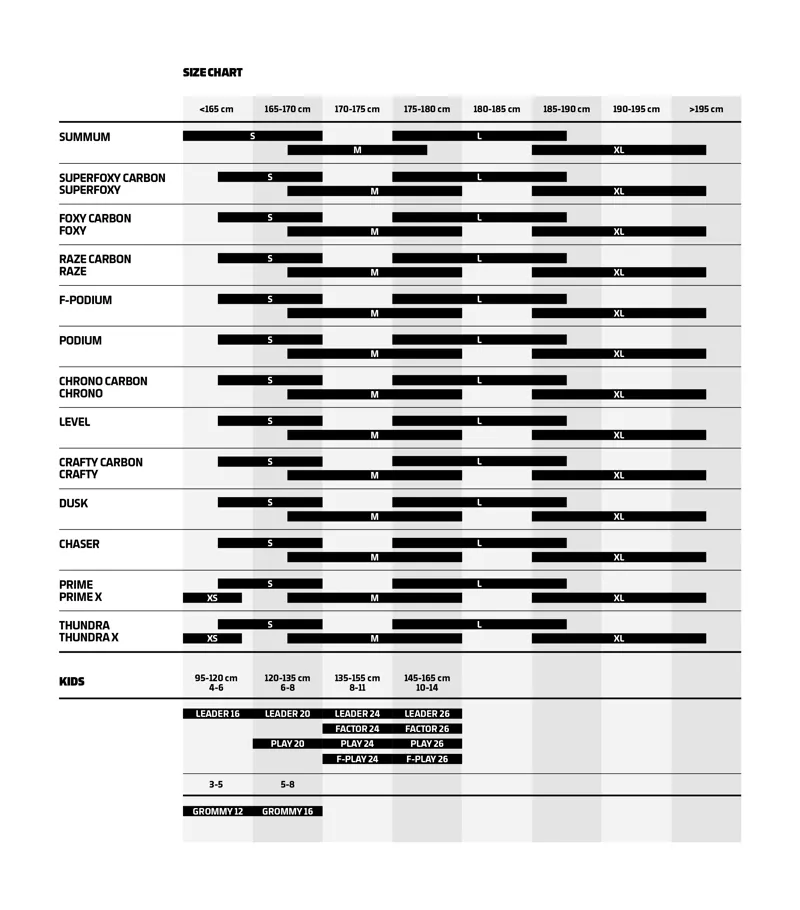

SIZES |
---|
S: 380mm / M: 420mm / L: 450mm / XL: 500mm |
REAR SHOCK |
---|
Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
SHOCK SETTINGS |
---|
C10 compression, R35 rebound. Volume reducers 16.000 (2xF+1E) |
FORK |
---|
Öhlins RXF 36 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40 |
FORK REMOTE |
---|
|
HEADSET |
---|
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
STEM |
---|
Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
HANDLEBAR |
---|
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
GRIPS |
---|
Onoff Desert, 1lock-on, 135mmOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
SEATPOST |
---|
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
SADDLE |
---|
SDG BEL-AIR 3.0, LPU foam, steel railsOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
FRONT BRAKE |
---|
Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
REAR BRAKE |
---|
Sram Code RSC, oversized 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed metal sintered padsOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
BRAKE LEVER |
---|
Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
RIMS |
---|
e*thirteen Race Carbon Enduro IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokesOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
SPOKES |
---|
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
FRONT HUB |
---|
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 boltsOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
REAR HUB |
---|
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
FRONT TYRE |
---|
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding beadOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
REAR TYRE |
---|
Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
CRANKSET |
---|
Sram X01 Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mmOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
CHAINRING |
---|
32T, CNC-machined alloy, X-SYNC 2 |
BOTTOM BRACKET |
---|
Sram DUB BSA, sealed bearings, 73mmOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
PEDALS |
---|
|
CHAIN |
---|
Sram GX Eagle, 12s, PowerlockOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
