MODEL |
---|
FOXY CARBON R |
FRAME |
---|
Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, aluminium CSC upper link with carbon bridge, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry Kit. Optional MIND System (EU only) |

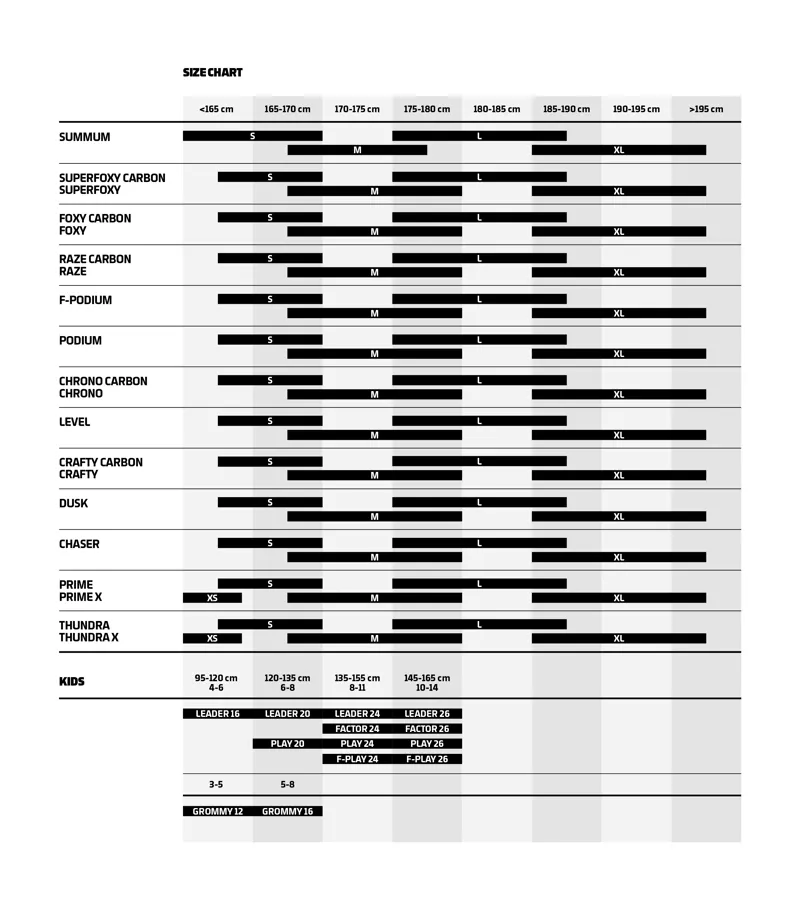

SIZES |
---|
S: 380mm / M: 420mm / L: 450mm / XL: 500mm |
REAR SHOCK |
---|
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
SHOCK SETTINGS |
---|
Light compression, light rebound, air volume spacer 0.6 |
FORK |
---|
Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload |
FORK REMOTE |
---|
|
HEADSET |
---|
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
STEM |
---|
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
HANDLEBAR |
---|
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
GRIPS |
---|
Onoff Desert, 1lock-on, 135mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
SEATPOST |
---|
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
SADDLE |
---|
SDG BEL-AIR 3.0, LPU foam, steel railsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
FRONT BRAKE |
---|
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
REAR BRAKE |
---|
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic padsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
BRAKE LEVER |
---|
Sram G2 R, tool-free reach adjust |
RIMS |
---|
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokesOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
SPOKES |
---|
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
FRONT HUB |
---|
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 boltsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
REAR HUB |
---|
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub |
FRONT TYRE |
---|
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding beadOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
REAR TYRE |
---|
Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
CRANKSET |
---|
Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
CHAINRING |
---|
32T, steel, X-Sync 2 |
BOTTOM BRACKET |
---|
Sram DUB BSA, sealed bearings, 73mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
PEDALS |
---|
|
CHAIN |
---|
Sram NX Eagle, 12s, PowerlockOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
