| Battery position: | FRAME |
|---|
| Dropper seatpost: | No |
|---|
| Frame material: | CARBON |
|---|
| Model year: | 2023 |
|---|
| Motor position: | TRAPAS |
|---|
| Size: | Size Split: 27.5: S (16") // 29: M (18"), L (20"), XL (22") |
|---|
| Walk assist: | Yes |
|---|
| Colour | ActionTeam |
|---|
| Net weight: | 24.2 Kg |
|---|

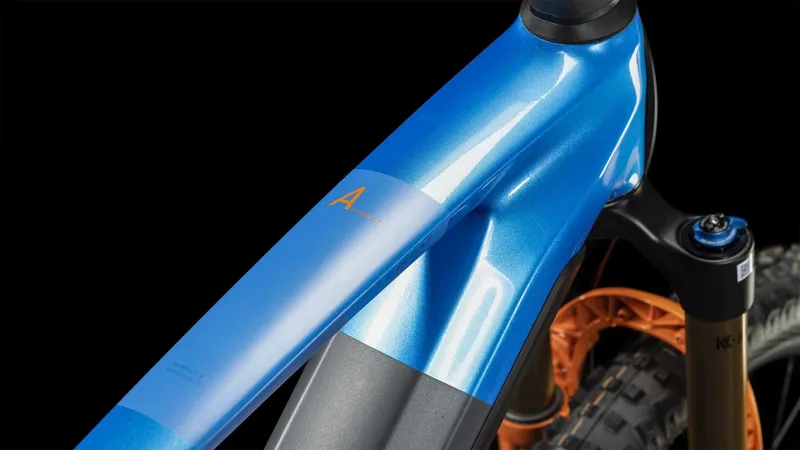

| Frame description | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
|---|
| Front tyre | Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4 |
|---|
| Braking system | Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
|---|
| Pedals | Cube |
|---|
| Engine | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
|---|
| Seatpost clamp | Cube Screwlock Semi Integrated, 34.9mm |
|---|

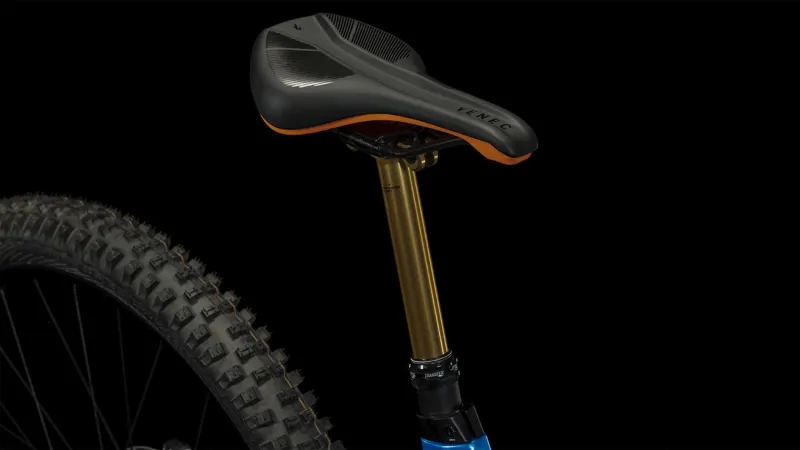

| Seatpost | Fox Transfer Factory 31.6mm, Kashima Coated |
|---|
| Saddle | Natural Fit Venec |
|---|
| Wheels | Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
|---|
| Fork | Fox 36 Float Factory FIT4, 3-Position w/Low Speed Compression Adjust, Tapered, 15x110mm, E-Bike Optimized, 150mm, Kashima Coated |
|---|
| Gear shifting system | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
|---|
| Stem | Cube Performance Stem E-MTB, 31.8mm |
|---|
| Handlebar tape/Grips | Acid Disrupt, Soft Compound |
|---|
| Handlebar | Newmen Advanced 318.25, Carbon, 780mm |
|---|
| Shifters | Shimano XT SL-M8100-IR, Direct Attach |
|---|
| Primary braking system rear | Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
|---|
| Primary braking system front | Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
|---|
| Chain | Shimano XT CN-M8100 |
|---|

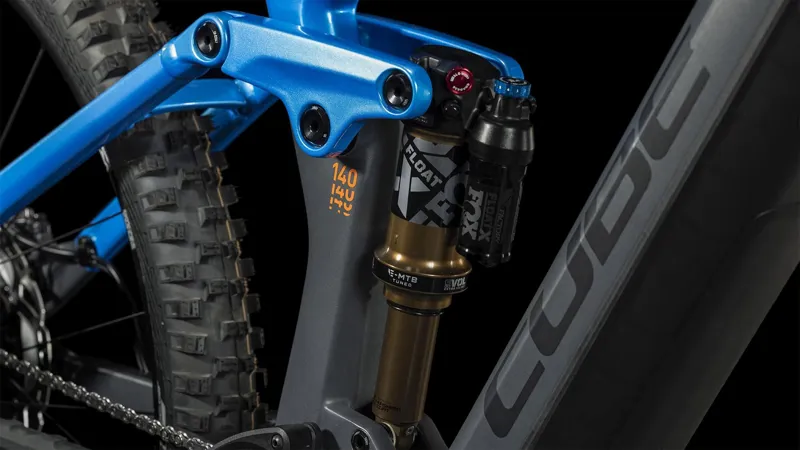

| Shock | Float X Factory, 205x60mm (27.5: 185x55mm), Adjustable LSC w/ 2-Pos. Lever, Trunnion Mount, Kashima Coated |
|---|
| Rear derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
|---|
| Crankset | Cube Plus Crank, 165mm (27.5: 36T // 29: 34T) |
|---|
| Cassette | Shimano XT CS-M8100, 10-51T |
|---|
| Headset | AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
|---|
| Display | Bosch Kiox 300 |
|---|
| Battery | Bosch PowerTube 750 |
|---|
