| Frame material: | CARBON |
|---|
| Model year: | 2023 |
|---|
| Size: | Size Split: 27.5: S (16") // 29: M (18"), L (20"), XL (22") |
|---|
| Colour | Smaragdgrey/Blue |
|---|
| Frame description | C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
|---|
| Front tyre | Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6 |
|---|
| Braking system | Magura CT Allroad eSTOP ABS, Hydr. Disc Brake (203/203) |
|---|
| Pedals | Cube |
|---|
| Engine | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
|---|
| Seatpost clamp | Cube Screwlock Semi Integrated, 34.9mm |
|---|
| Seatpost | Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
|---|
| Saddle | Natural Fit Venec |
|---|
| Wheels | Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
|---|
| Fork | Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm |
|---|
| Gear shifting system | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
|---|
| Stem | Cube Performance Stem E-MTB, 31.8mm |
|---|
| Handlebar tape/Grips | Acid Disrupt, Soft Compound |
|---|
| Handlebar | Newmen Evolution SL 318.25, 780mm |
|---|
| Shifters | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
|---|
| Primary braking system rear | Magura CT Allroad eSTOP ABS, Hydr. Disc Brake (203/203) |
|---|
| Primary braking system front | Magura CT Allroad eSTOP ABS, Hydr. Disc Brake (203/203) |
|---|
| Chain | Shimano CN-M6100 |
|---|

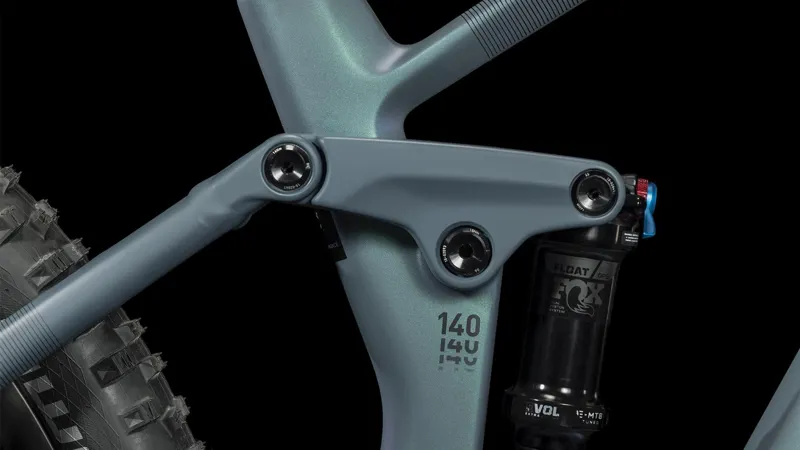

| Shock | Float DPS EVOL, 205x60mm (27.5: 185x55mm), Open/Medium/Firm Mode, Trunnion Mount |
|---|
| Rear derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
|---|
| Crankset | Acid E-Crank, 165mm (27.5: 36T // 29: 34T) |
|---|
| Cassette | Shimano Deore CS-M6100, 10-51T |
|---|
| Headset | AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
|---|

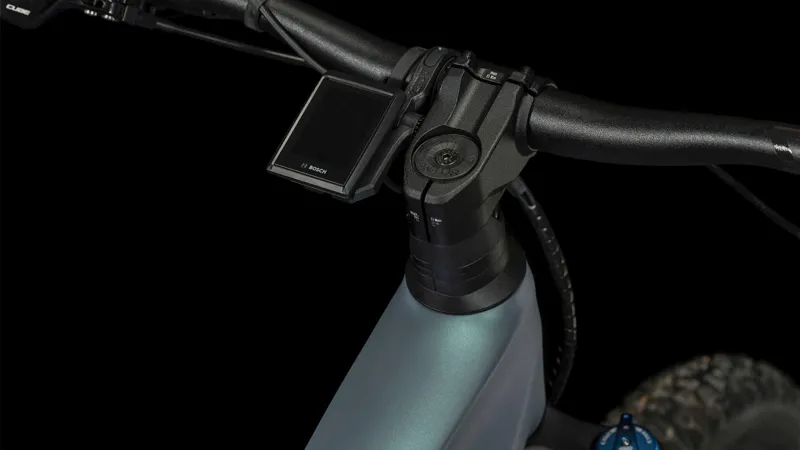

| Display | Bosch Kiox 300 |
|---|
| Battery | Bosch PowerTube 750 |
|---|
