| Battery position: | FRAME |
|---|
| Colour: | Black |
|---|
| Dropper seatpost: | No |
|---|
| Frame material: | ALUMINIUM |
|---|
| Model year: | 2023 |
|---|
| Motor position: | TRAPAS |
|---|
| Size: | 27.5: S (15") // 29": M (17"), L (19"), XL (21"), XXL (23"); Easy Entry: 27.5: S (16"), M (18"), L (20"), XL (22") |
|---|
| Walk assist: | Yes |
|---|
| Colour | black/reflex |
|---|
| Primary Basecolour | ZWART |
|---|
| Net Weight: | 25.9 Kg |
|---|
| Modelyear Bike | 2023 |
|---|

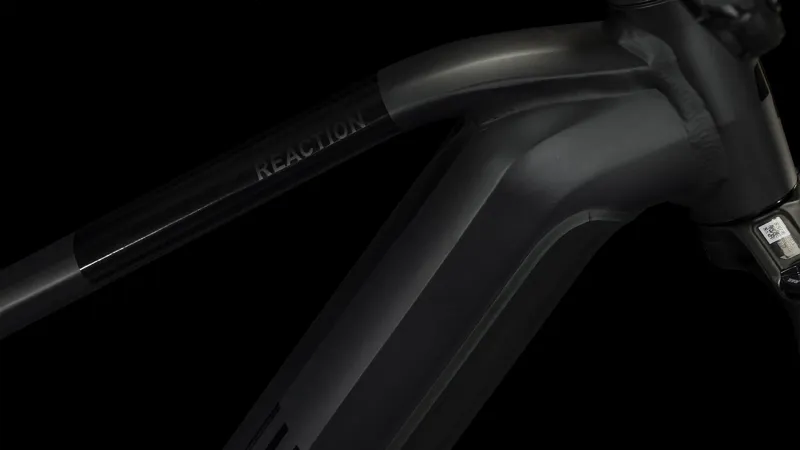

| Frame Description | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing |
|---|
| Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
|---|
| Front Tyre | Schwalbe Smart Sam, Performance, Double Defense, 2.6, Next Gen |
|---|
| Rims | Cube EX30, 32H, Disc, Tubeless Ready |
|---|
| Braking System | Sram DB8, Hydr. Disc Brake (200/200) |
|---|
| Pedals | Acid PP MTB |
|---|
| Engine | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
|---|
| Seatpost Clamp | Cube Screwlock Semi Integrated w/ Hidden Tool, 36mm |
|---|
| Seatpost | Cube Performance Post, 30.9mm |
|---|
| Saddle | Natural Fit Sequence |
|---|

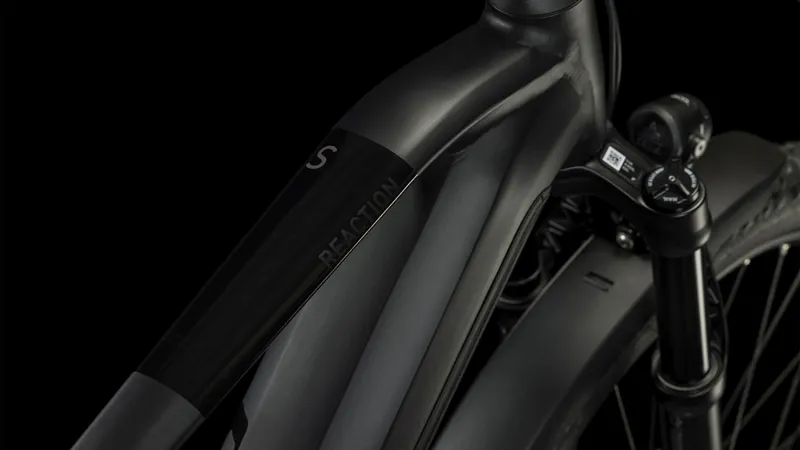

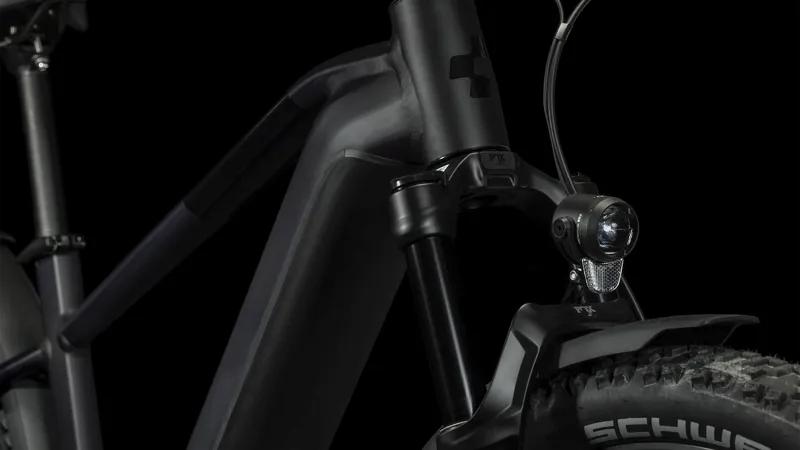

| Fork | Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm (EE: 100mm) |
|---|
| Gear Shifting System | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
|---|
| Stem | Cube Performance Stem E-MTB, 31.8mm |
|---|
| Handlebar Tape/Grips | Acid React Pro / EE: Hybrid Perform |
|---|
| Handlebar | Cube Rise Trail Bar Pro, 740mm |
|---|
| Shifters | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
|---|
| Primary Braking System Rear | Sram DB8, Hydr. Disc Brake (200/200) |
|---|
| Primary Braking System Front | Sram DB8, Hydr. Disc Brake (200/200) |
|---|
| Chain | Shimano CN-M6100 |
|---|
| Rear Derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
|---|
| Crankset | Acid E-Crank, 38T, 175mm |
|---|
| Cassette | Shimano Deore CS-M6100, 10-51T |
|---|
| Headset | AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
|---|
| Rear Hub | Shimano FH-MT410-B, 12mm, Boost, Centerlock |
|---|
| Display | Bosch Kiox 300 |
|---|
| Battery | Bosch PowerTube 750 |
|---|
