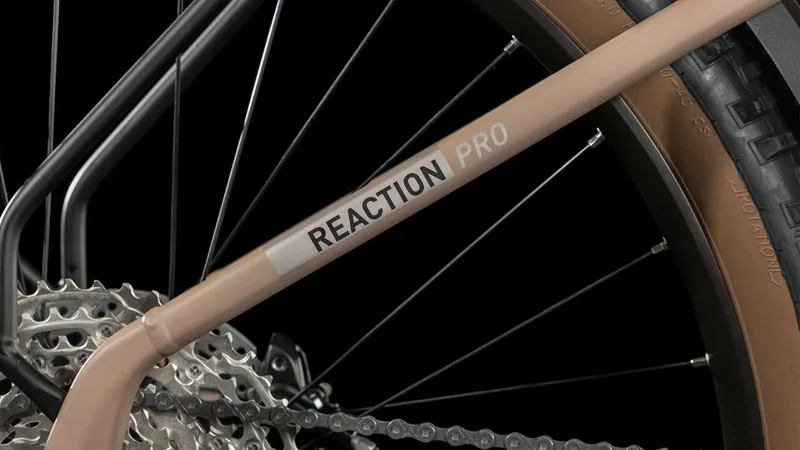

FRAME
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
SIZE
Size Split: 27.5: S (15") // 29": M (17"), L (19"), XL (21"), XXL (23"); Easy Entry: 27.5: S (16"), M (18"), L (20"), XL (22")
SUSPENSION FORK
X-Fusion MIG32 Air, Tapered, 15x110mm, 120mm, Lockout (EE: 100mm)
DRIVE UNIT
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System

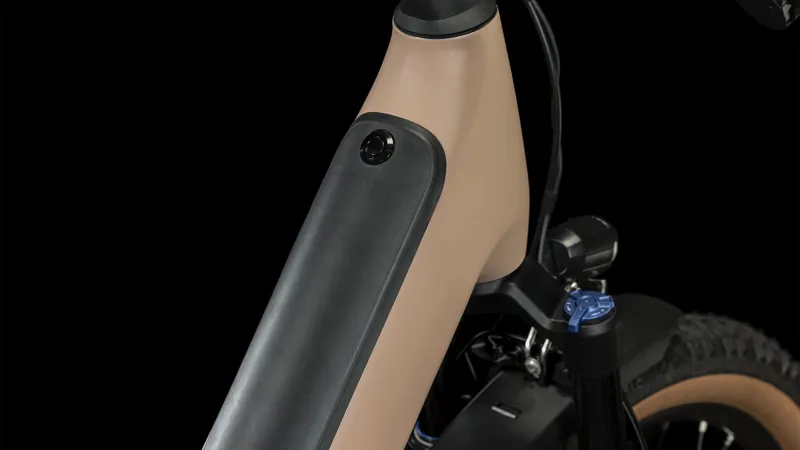

BATTERY
Bosch PowerTube 750

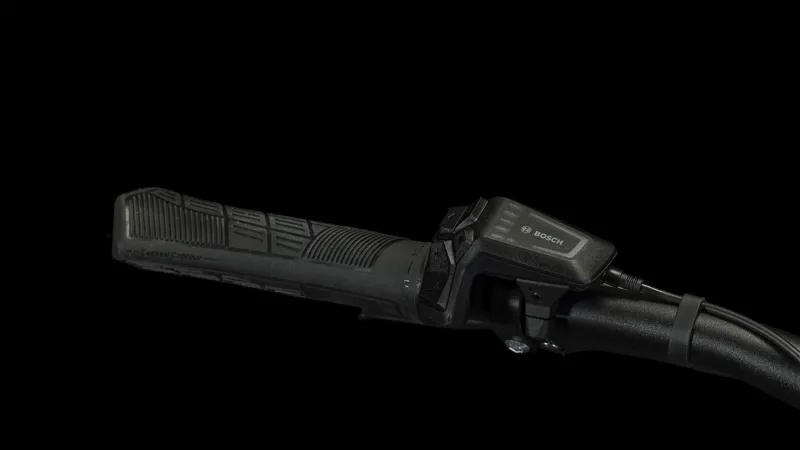

REMOTE
Bosch LED Remote
CHARGER
Bosch 4A
BRAKE SYSTEM
Shimano BR-MT200, Hydr. Disc Brake (180/180)
REAR DERAILLEUR
Shimano Deore RD-M5100-SGS, 11-Speed
SHIFTERS
Shimano Deore SL-M5100-IR, Direct Attach, Rapidfire-Plus
CRANKSET
ACID E-Crank, 38T, 175mm
CASSETTE
Shimano Deore CS-M5100, 11-51T
CHAIN
KMC X11
HANDLEBAR
CUBE Rise Trail Bar Pro, 740mm
STEM
CUBE Performance Stem E-MTB, 31.8mm
GRIPS
ACID React Pro / EE: ACID Hybrid Perform
HEADSET
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
FRONT HUB
Shimano HB-MT400-B, 15mm, Boost, Centerlock
REAR HUB
Shimano FH-MT400-B, 12mm, Boost, Centerlock
RIMS
Rodi Tryp 30, 32H, Disc, Tubeless Ready
TYRES
Schwalbe Smart Sam, Active, 2.6
SEAT POST
CUBE Performance Post, 30.9mm

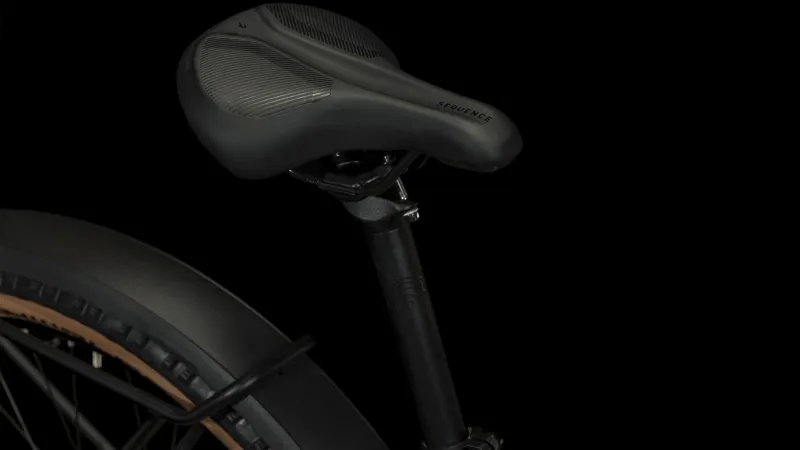

SADDLE
Natural Fit Sequence
PEDALS
ACID PP MTB

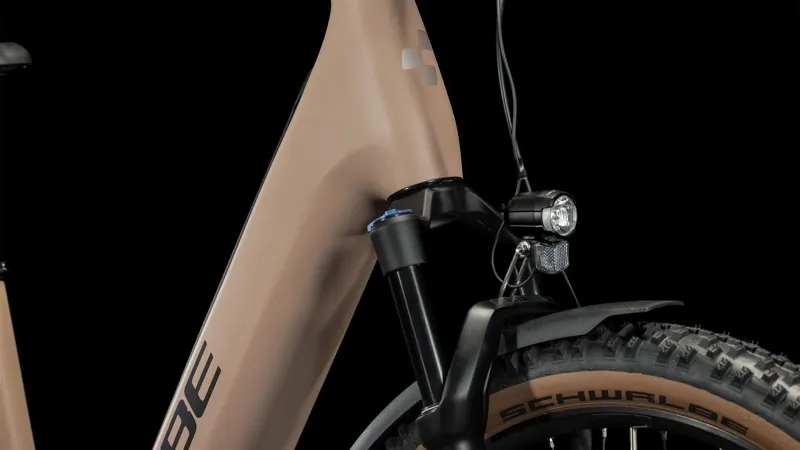

FRONT LIGHT
CUBE Shiny 50 Lux, 12V, DC
REAR LIGHT
ACID Mudguard Rear Light PRO-E, 12V, DC
KICKSTAND
ACID FM Pure Kickstand

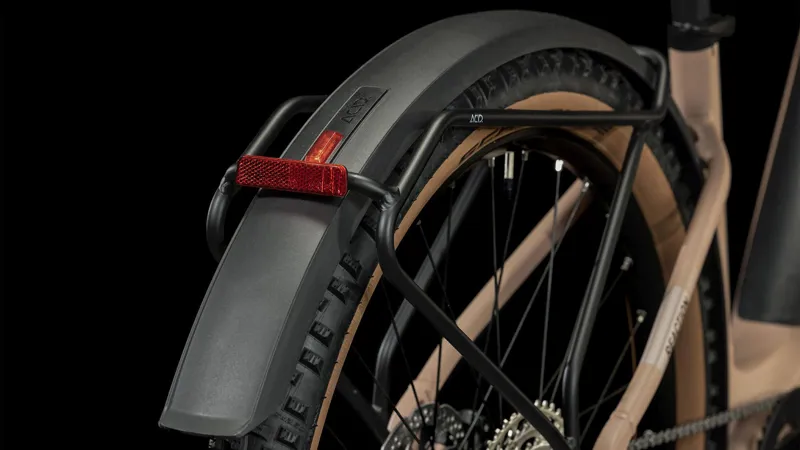

MUDGUARDS
ACID 75 BB-Mount
BELL
Easy Bell
CARRIER
M (17"), L (19"), XL (21"), XXL (23"): ACID Gepäckträger Rail. SIC, 29" Boost; S (15"), EE 16", EE18", EE 20", EE22": ACID Gepäckträger Rail. SIC, 27,5" Boost
WEIGHT
25,7 kg
