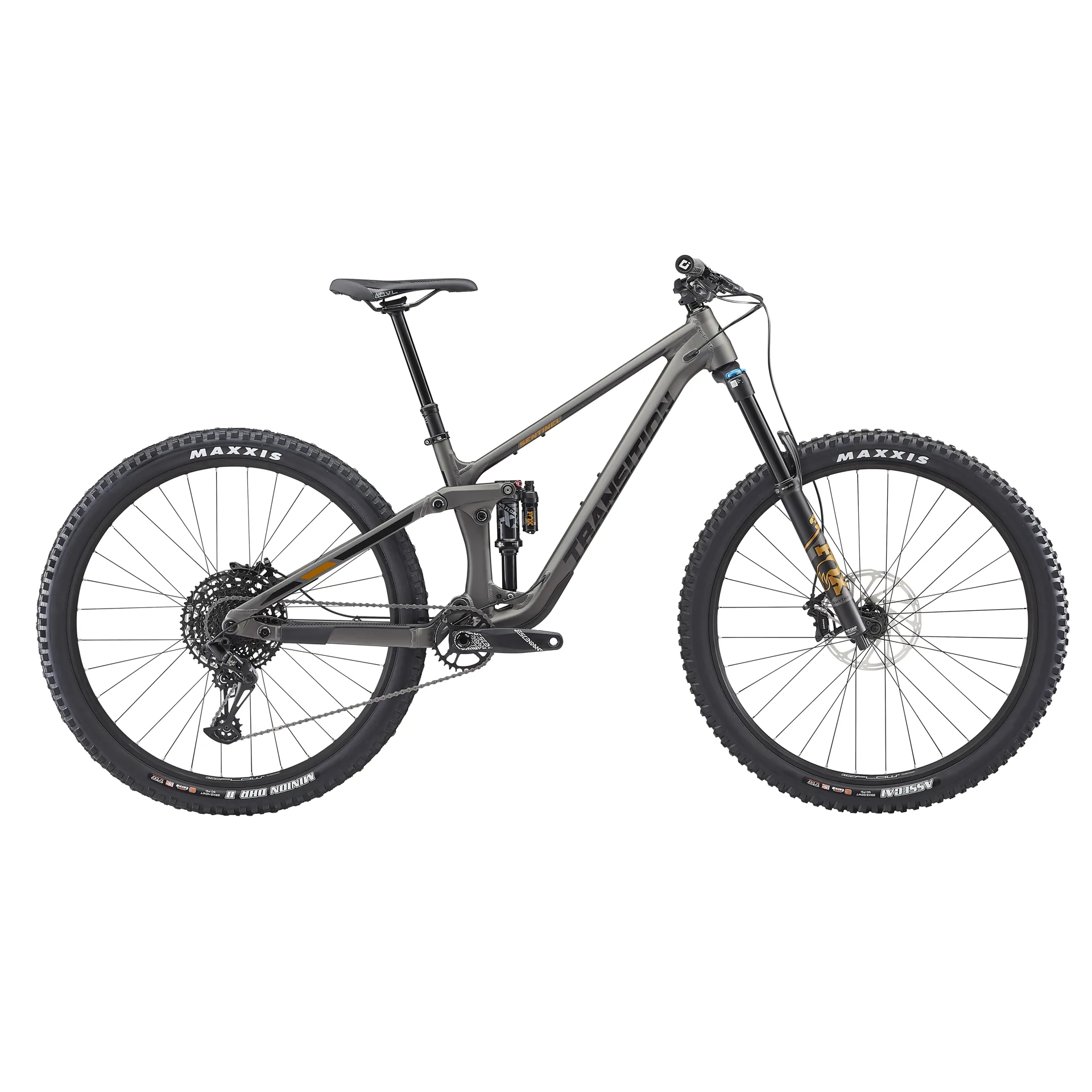

Transition Sentinel Alloy NX Full-Suspension Mountain Bike - Black Powder

Season:2023

Brand:Transition

Code:redwoPKLBXN.LA.TNES.22.BC

The Sentinel inspires confidence like you're wearing full body armour.

It's forgiving do-it-all attitude truly blurs the lines between planted bottomless sender and playful poppy trail pony. Whether you're chasing EWS dreams or just a weekend afternoon escape, it will bring out the best in you. So easy to get acquainted with you'll find yourself sending lines, jumps and maneuvers you always felt were beyond your ability. Where before you went around, now you go over. Where you pushed up, now you pedal. Where you rolled, now you boost.

Lifetime Warranty

At Transition Bikes we take pride in the quality of our products and are stoked to offer a lifetime warranty for the original owner and our stellar crash replacement program. We got your back so you don't have to worry about your bike.

All Carbon Construction

Full carbon frame made form premium Japanese Toray fibre with a tailored blend of 24T and 30T materials to create the right balance of frame stiffness, strength and impact toughness. Out unique latex coated EPS molding process allows for sharper frame lines and tighter edge radius control with maximum strength to weight ratio and less wasted.

Pivot Technology

Collet main pivot technology improves rear end stiffness and keeps your pivot hardware tight. Additional bearing shields prevent amin pivot bearing contamination when washing your bike or riding in wet conditions.

Frame Protection

We keep your bike rides quiet and your frame safe from damage with fully integrated, flush-mounted rubber frame protection at all critical areas. In addition to downtube and seatstay protection, the ribbed chainstay protector features expanded coverage of the rear dropout pivot area.

Badass Bearings

We exclusively use EnduroMAX suspension pivot specific bearings in standard sizes that area readily available worldwide. Dual bearings are used at the dropout pivots for frame stiffness and additional c-clips lock the rocker bearings in place under torsional loads.

Gear Accessory Mount

out underside top-tube accessory mount allows you to carry a spare tube or other goodies safely on your frame in case you are looking to ditch the backpack.

Mega Seatpost Insertion

Dropper posts keep getting longer so we combine short seat tube lengths with mega seatpost insertion to help get your saddle completely out of the way.

Tyre Clearance

Ample clearance for mud and tyres up to 2.6" width.

User Friendly Cable Routing

To simplify maintenance and keep yur bike noise free, the rear derailleur cable is routed through guide tubes in the front triangle and chainstay.

Threaded BB

A standard 73mm threaded bottom bracket shell makes crankset maintenance hassle-free and prevents unwanted press-fit BB related moises.

Press-in Headset

Our ZS44/ZS56 press in headset gives you the freedom to use angle adjust headsets if you feel the need to make your bike a touch slacker or a touch steeper.

Angleset headset does not come with framesets or complete bikes.

Water Bottle Compatibility

We keep your water bottle clean inside the front triangle so you can keep hydrated without worrying about mud making it to your mouth.

Technical Information
  • Frame
    Sentinel Alloy 150mm
  • Rear Shock
    Fox Float X Performance 2 Position
  • Fork
    Fox Float 36 Rhythm
    160mm Travel/44mm Offset
  • Headset
    FSA No.57E
  • Stem
    RaceFace Aeffect R (40mm)
  • Handlebar
    RaceFace Chester 35
    SM/MD (780x20) LG/XL/XXL (780x35)
  • Grips
    Sensus Lite
  • Saddle
    ANVL Forge Cromo
  • Seatpost
    OneUp Dropper Post
    SM (150mm) MD (180mm) LG/XL/XXL (210mm)
  • Brakes
    SRAM Code R
  • Rotors
    SRAM Centerline (200mm)
  • Shifter
    SRAM NX Eagle MMX
  • Derailleur
    SRAM NX Eagle
  • Cassette
    SRAM PG 1230 (11-50t)
  • Chain
    SRAM NX Eagle
  • Crank
    SRAM Descendent 6k DUB (30t/170mm)
  • Rims
    Stans Flow D
  • Spokes
    Pillar Double Butted
  • Hubs
    Novatech D791SB/D902SB
  • Tyre/Front
    Maxxis Assegai 3C EXO+ (29x2.5)
  • Tyre/Rear
    Maxxis Minion DHRII 3C EXO+ (29x2.4)
  • Included
    Tubeless Valves & Stans Sealant (6oz)
  • Weight
    35.8 lbs / 16.23kg (Size MD)
Sizing Information

Sentinel Geometry

SMMDLGXLXXL
A. Reach420mm450mm476mm501mm521mm
B. Stack613mm622mm631mm640mm649mm
C. Effective Tt Length552mm585mm613mm641mm665mm
D. Seat Tube Length350mm390mm430mm460mm490mm
E. Effective St Angle78.2°77.5°76.9°76.4°76.0°
Saddle Height For Effective ST Angle600mm660mm720mm780mm820mm
Actual ST Angle70.8°70.8°70.8°70.8°70.8°
Seat Tube Offset AT BB87mm87mm87mm87mm87mm
F. Head Tube Length100mm110mm120mm130mm140mm
G. Head Tube Angle63.6°63.6°63.6°63.6°63.6°
H. Chainstay Length440mm440mm440mm440mm440mm
I. Wheelbase1199mm1233mm1263mm1292mm1316mm
J. Bottom Bracket Drop29mm29mm29mm29mm29mm
K. Estimated BB Height346mm346mm346mm347mm347mm
L. Stand Over Height671mm688mm700mm712mm722mm
M. Fork Offset43mm43mm43mm43mm43mm
