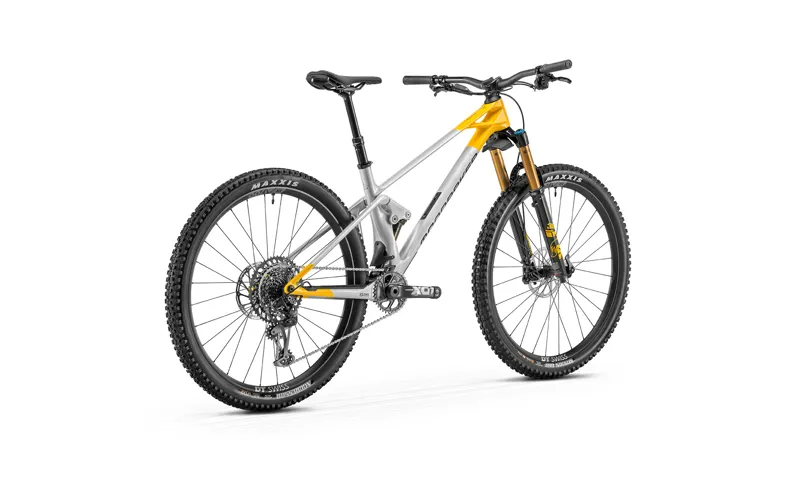

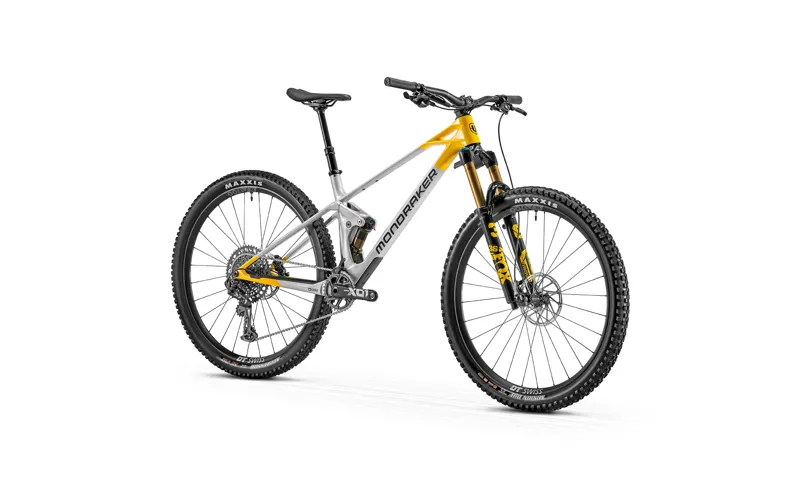

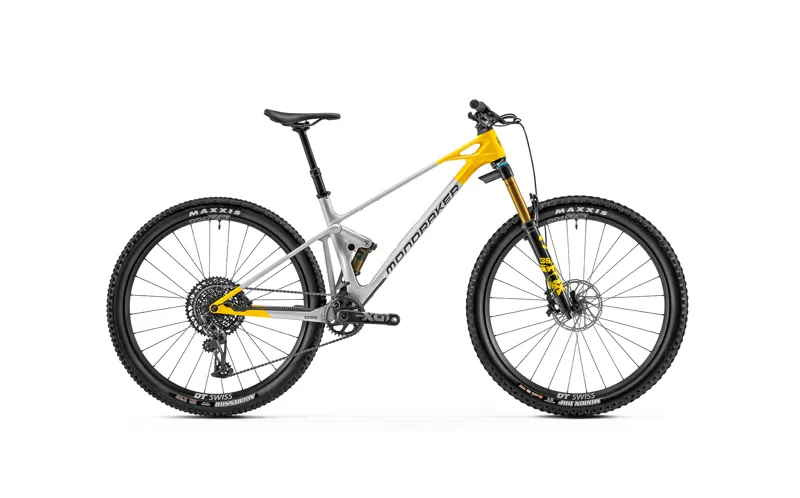

Mondraker Raze Carbon RR Full-Suspension Mountain Bike - Large

Brand:Mondraker

Code:010.22310

Mondraker’s new Raze is a lightweight mid-travel trail racer with 150mm travel front and 130mm rear and Mondraker’s sleek signature aesthetic. The RR version gets full Fox Factory suspension monitored by its unique MIND telemetry system. The result is a seriously sweet, deliciously distinctive machine, especially for those who want more insight into their ride.

Raze really makes you rethink and question the boundaries between disciplines. Some will see it as that ideal bike "a little beyond" the traditional XC but without losing that XC racing performance. You can climb at the same rate as your XC mates but you’ll leave them for dead on the downs. Others will see it as that long-awaited mini-Foxy, with almost the exact same evolved geometry but which lets you ride farther, hit more jumps, rail more single-track and cover greater distances, faster. Too aggressive for XC? Incredibly light for Enduro? It’s all of that and more. Raze redefines what is and has been a traditional trail bike. Don't try to compare it to anything else because it’s got a unique identity and personality. If you’re lucky enough to try one, you won’t want anything else.

With 150mm travel at the front and 130mm at the rear, the new Raze is not a normal trail bike. The definition of a trail bike isn’t based on suspension travel, but rather on functionality. In line with our philosophy mountain bikes are for fun, and to fulfill that objective they must be really, really good at going both up and down mountains. Raze is our new Trail model for those who want it all, and with guarantees. The Raze frame is manufactures from carbon fibre using our latest generation Stealth Air Full Carbon technology, achieving a frame weight (not including the rear shock) of close to 2 kg. We have fully optimized our double-link Zero Suspension System to achieve the best pedaling response and the most uncompromised suspension performance in a bike of these characteristics. Raze debuts a new lower link for optimal stiffness.

With Trail-specific kinematics and a FOX shock tuned specifically for this model, we’ve managed to strike the perfect compromise between pedaling efficiency and overall performance. The key to the new Raze is that it has the best traits of both XC and Enduro all rolled into one single model: The best of F-Podium and the best of Foxy Carbon as a new generation of trail bike: Agile, with a lightning fast pedal response combined with surprising sensitivity and shock performance as well as, until now, unheard of levels of lightness, extreme maneuverability and enviable poise. Your next bike? Most likely.
Technical Information
Frame

Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 500mm

Rear shock

Fox Float DPS Factory Kashima evol LV, 205x57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushing

Shock settings

Light compression, light rebound, air volume spacer 0.6

Fork

Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preloa

Headset

Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

Stem

Onoff Krypton FG 30mm, CNC, 31.8mm barbore

Handlebar

Onoff Kripton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

Onoff Diamond, 1lock-on, 135m

Seatpost

Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L/XL size: 475.1x175mm

Saddle

Fizik Antares R

Front brake

Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake

Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram G2 RS, SwingLink, tool-free reach adjust

Rims

DT Swiss XM1700 Spline 29, 30mm internal width, welded aluminum, tubeless ready, 28 spoke

Spokes

DT Competition, straightpull

Front hub

DT 350, Boost 15x110mm, IS 6 bolts

Rear hub

DT 350, Boost 12x148mm, 36T SL Ratchet system, IS 6 bolts, XD freehub

Front tyre

Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bea

Rear tyre

Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

Crankset

Sram X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175m

Rings

32T, CNC-machined alloy, X-SYNC 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram GX Eagle, 12s, Powerlock

Rear derrailleur

Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:

Shift levers

Sram Trigger GX Eagle, 12s, X-Actuation 1:1

Casette

Sram XG-1275, 10-52T, 12

Derailleur hanger

Sram UDH

Weight

12.5 kg

Sizing Information



FRAME SIZESMLXL
ASeattube length375 mm415 mm445 mm500 mm
BToptube length595 mm620 mm645 mm670 mm
CBottom bracket drop-30 mm-30 mm-30-30 mm
DBottom bracket height343 mm343 mm343 mm343 mm
EChainstay length435 mm435 mm435 mm435 mm
FSeat tube angle71°71°71°71°
GEffective seattube angle76.5°76.5°76.5°76.5°
HHeadtube angle65.5°65.5°65.5°65.5°
IFork Offset44 mm44 mm44 mm44 mm
JWheelbase1193 mm1217 mm1243 mm1269 mm
KHeadtube length90 mm100 mm115 mm130 mm
LReach455 mm475 mm495 mm515 mm
MStack608 mm617 mm631 mm645 mm
