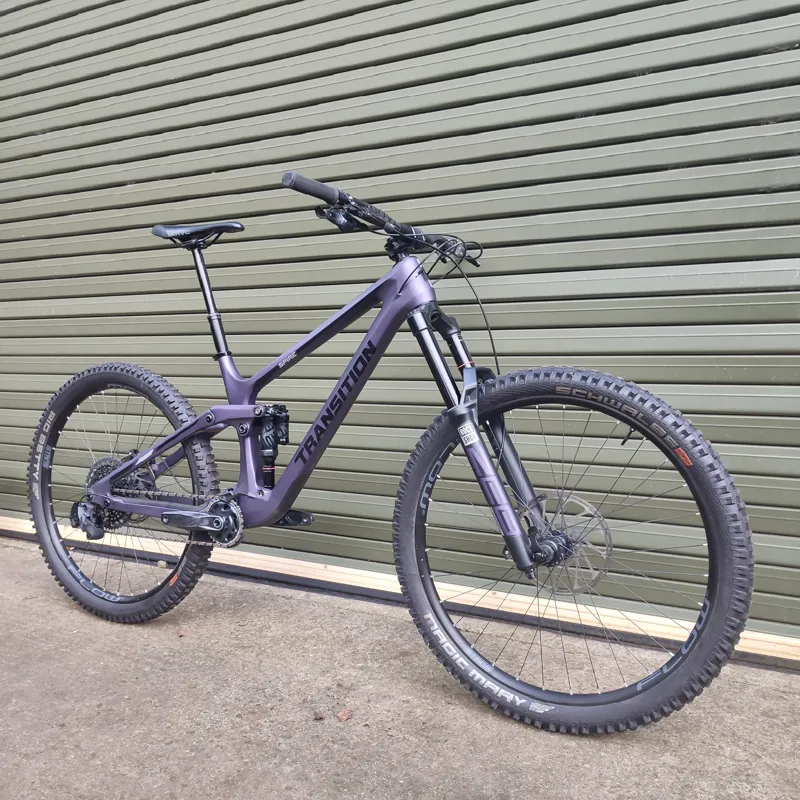

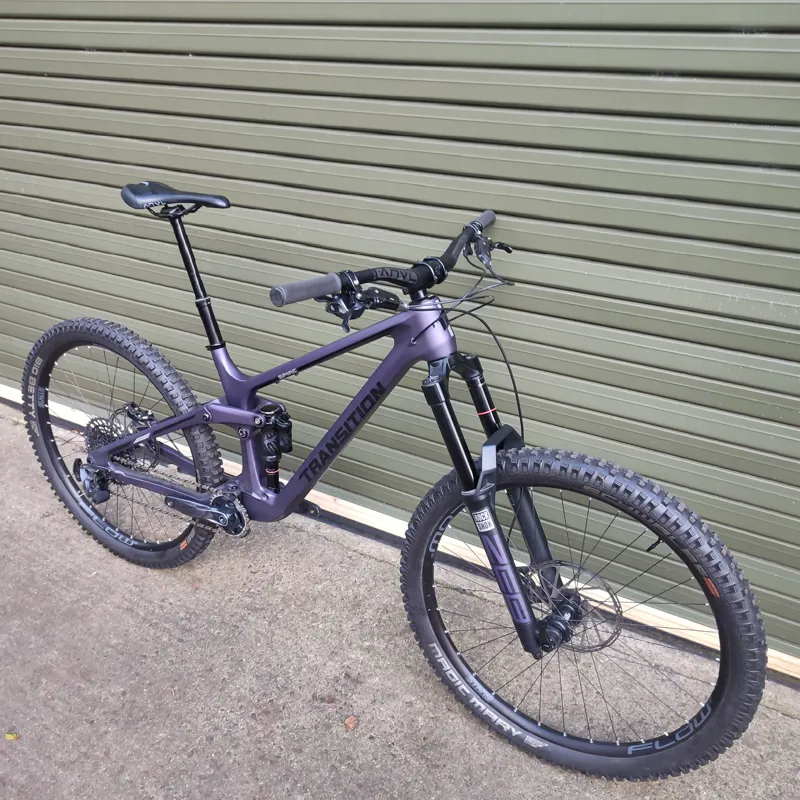

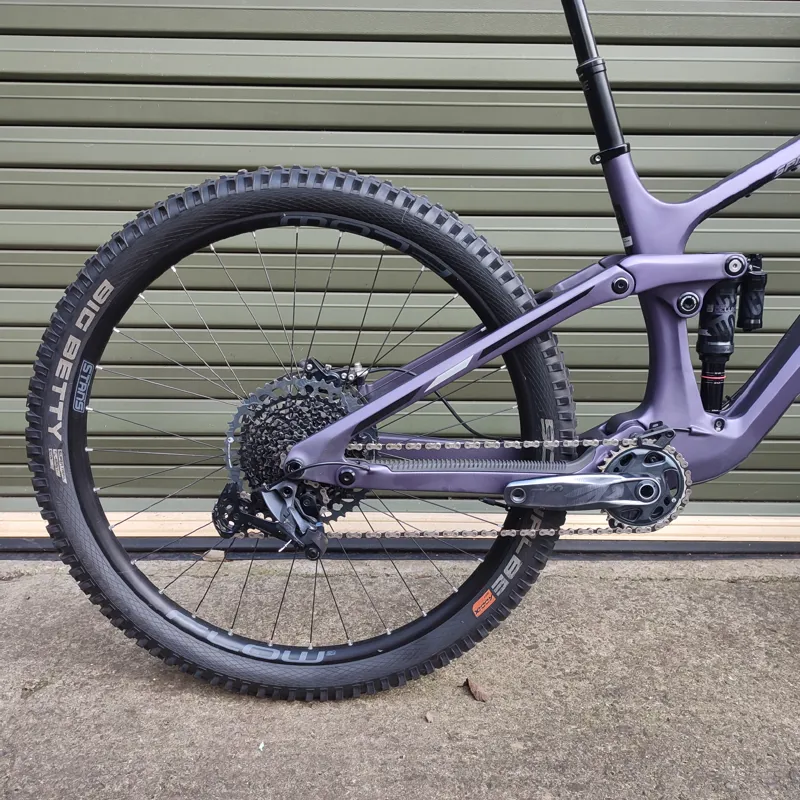

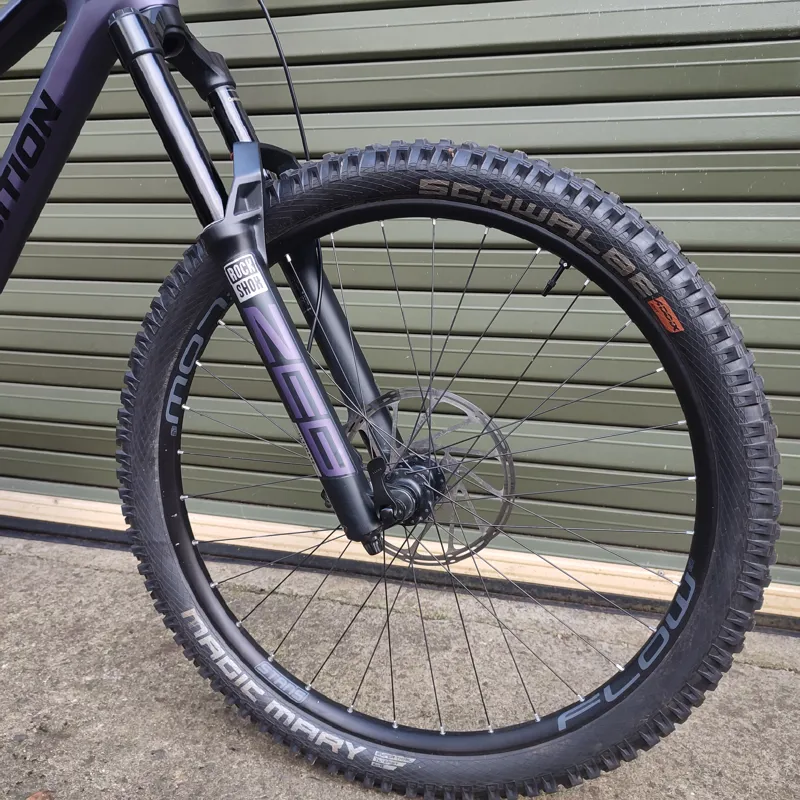

Ex-Demo Transition Spire GX Carbon Full-Suspension Mountain Bike - Purple

Season:2021

Brand:Transition

Code:RUPelkcuHXG.BRC.ERIPS.12.

Take on the biggest terrain without the penalty, long travel doesnt have to mean single purpose

The Spire blends DH bike capability with mid-travel efficiency in such a way it’s almost two bikes in one. A delicately tuned pedaling and pumping platform, super supple beginning stroke sensitivity and all the travel you could ask for makes for a mind bending ride. Happily climb up to your favorite challenging descent, then cruise on over to your local flow trail and you’ll be rewarded on both ends of the spectrum. Don’t be fooled though, while it’s no one-trick pony, the Spire lives to push your limits. Get in-Spired.

Features:

  • Featuring SBG geometry
  • Full carbon and alloy frame options (front triangle, rear triangle & rocker)
  • High and low geometry setting
  • Size specific chainstays (S/M/L 446mm, XL/XXL 452mm)
  • 56/56mm press-in headset
  • Equipped with SRAM UDH derailleur hanger
  • 148mm boost dropout spacing
  • Stock rear travel 170mm with 65mm stroke shock
  • Optional 160mm rear travel with 60mm stroke shock
  • 29" and 27.5" rear tyre clearance up to 2.6
  • Enduromax sealed bearings with bearings shields on main pivot
  • Threaded bottom bracket
  • Moulded rubber chainstay, seatstay and downtube protection
  • External rear brake cable routing
  • Carbon frame has full guided dropper and rear derailleur cable routing in DT and CS
  • Alloy frame has internal dropper and rear derailleur cable routing in DT and CS
  • Water bottle storage inside front triangle
  • Accessory mount on underside of top tube
Technical Information
  • Rear Shock
    Rockshox Super Deluxe Ultimate Air (170mm Travel/205x65mm)
  • Fork
    Rockshox Zeb Ultimate 29 170mm Travel/44mm Offset
  • Headset
    Fsa No.55R/57
  • Stem
    Anvl Swage (40mm)
  • Bar
    Anvl Mandrel Alloy
  • Grips
    Sensus Lite
  • Saddle
    Anvl Forge Cromo or WTB Silverado
  • Seatpost
    OneUp Dropper Post
  • Brakes
    SRAM Code RSC
  • Rotors
    SRAM Centerline (200mm)
  • Shifter
    SRAM GX Eagle
  • Derailleur
    SRAM GX Eagle
  • Cassette
    SRAM XG 1275 (10-52T)
  • Chain
    SRAM GX Eagle
  • Crank
    SRAM GX Alloy Dub (30T/165mm)
  • Chainguide
    OneUp Bash Guide
  • Wheelset/Rims
    Stans Flow S1
  • Spokes
    Sapim Race Double Butted
  • Hubs
    Stans Neo Durasync
  • Front Tire
    Schwalbe Magic Mary, Super Trail, Soft (29x2.4)
  • Rear Tire
    Schwalbe Big Betty, Super Trail, Soft (29x2.4)
  • Other
    Tubeless Valves & Stans Sealant (6oz)
Sizing Information
High SettingSMLXLXXL
Reach430mm460mm485mm510mm535mm
Stack619mm619mm628mm637mm646mm
Effective TT Length547mm577mm605mm633mm661mm
Seat Tube Length360mm390mm430mm460mm490mm
Effective ST Angle79.6°78.8°78.1°77.5°77.2°
Reference Seat Height600mm660mm720mm780mm820mm
Actual ST Angle70.5°70.5°70.5°70.5°70.5°
ST Offset at BB Height100mm100mm100mm100mm100mm
Head Tube Length100mm100mm110mm120mm130mm
Head Tube Angle63.0°63.0°63.0°63.0°63.0°
Chainstay Length446mm446mm446mm452mm452mm
Wheelbase1,227mm1,257mm1,287mm1,322mm1,352mm
Bottom Bracket Drop25mm25mm25mm25mm25mm
Estimated BB Height350mm350mm350mm350mm350mm
Stand Over Height685mm700mm715mm730mm745mm
Fork Offset44mm44mm44mm44mm44mm

Low SettingSMLXLXXL
Reach425mm455mm480mm505mm530mm
Stack624mm624mm633mm642mm651mm
Effective TT Length550mm580mm608mm636mm664mm
Seat Tube Length360mm390mm430mm460mm490mm
Effective ST Angle79.1°78.3°77.6°77.0°76.7°
Reference Seat Height600mm660mm720mm780mm820mm
Actual ST Angle70.0°70.0°70.0°70.0°70.0°
ST Offset at BB Height100mm100mm100mm100mm100mm
Head Tube Length100mm100mm110mm120mm130mm
Head Tube Angle62.5°62.5°62.5°62.5°62.5°
Chainstay Length448mm448mm448mm454mm454mm
Wheelbase1,229mm1,259mm1,289mm1,324mm1,354mm
Bottom Bracket Drop32mm32mm32mm32mm32mm
Estimated BB Height343mm343mm343mm343mm343mm
Stand Over Height685mm700mm715mm730mm745mm
Fork Offset44mm44mm44mm44mm44mm
