| MODEL |
|---|

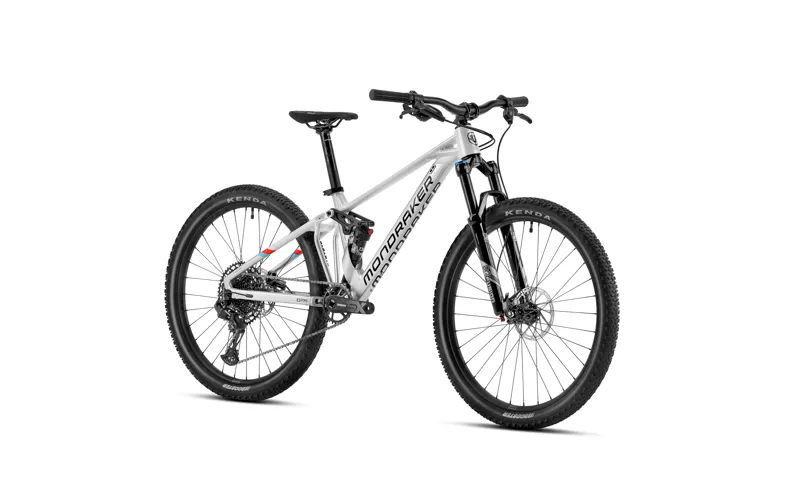

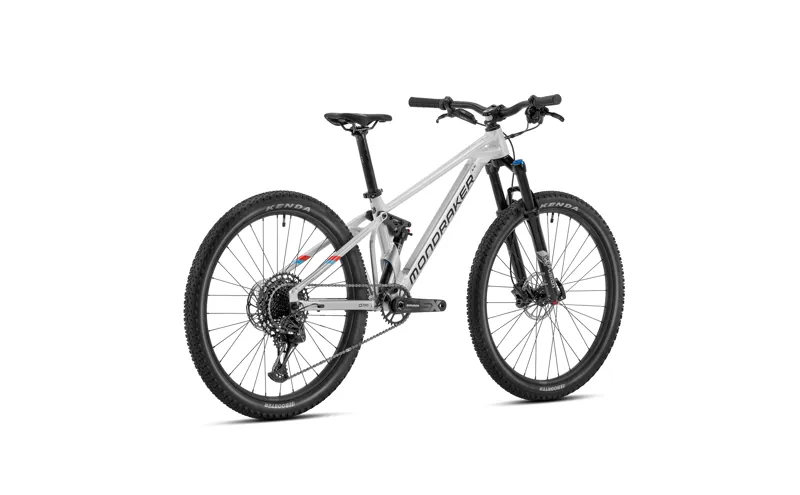

| FACTOR 26 |
| FRAME |
|---|
| Factor 26 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, QR 9mm rear axle, 73mm BSA bottom bracket, HHG internal cable routing, dedicated 1x drivetrain design |

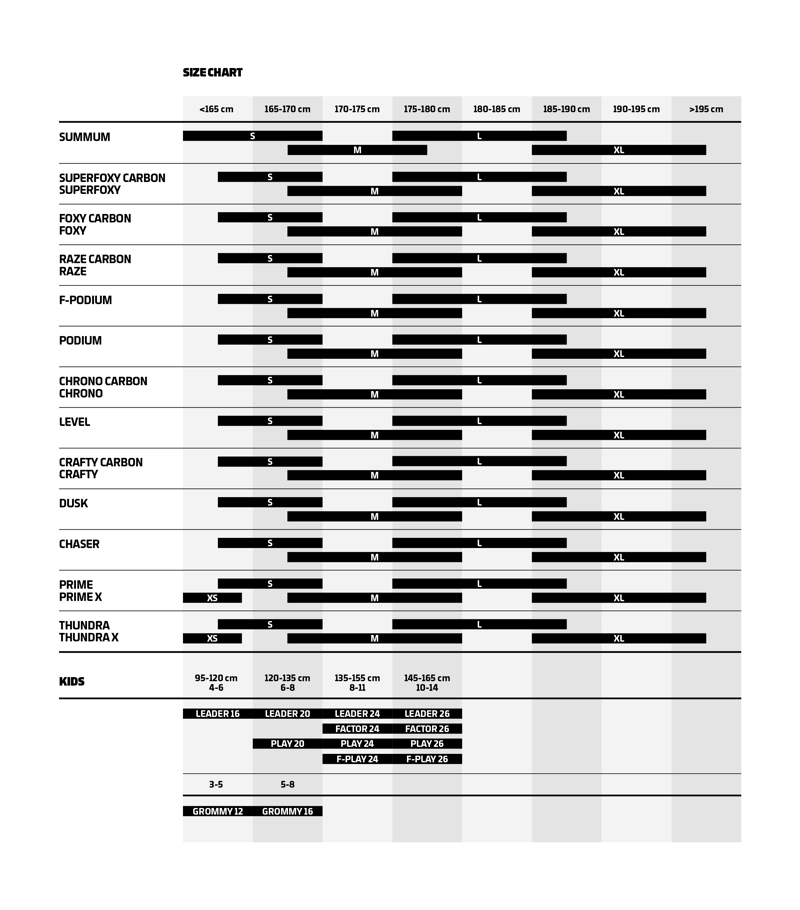

| SIZES |
|---|
| One size: 350mm |
| REAR SHOCK |
|---|
| X-Fusion 02PRO R, 210x55mm. Settings: low-speed rebound, air preload. 45x8mm top and bottom bushings |
| SHOCK SETTINGS |
|---|
| A-Tune light compression |
| FORK |
|---|
| X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 9x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload |
| FORK REMOTE |
|---|
|
| HEADSET |
|---|
| Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| STEM |
|---|
| Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| HANDLEBAR |
|---|
| MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| GRIPS |
|---|
| Onoff Twin, 1lock-onOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| SEATPOST |
|---|
| Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm |
| SADDLE |
|---|
| SDG Fly JROnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| FRONT BRAKE |
|---|
| Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| REAR BRAKE |
|---|
| Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic padOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| BRAKE LEVER |
|---|
| Sram Level, tooled reach adjust, lever pivot bushings |
| RIMS |
|---|
| MDK-XP1 26 TLR, 25mm internal width, tubeless ready, 32 spokesOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| SPOKES |
|---|
| CN round stainless steel |
| FRONT HUB |
|---|
| Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 boltsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| REAR HUB |
|---|
| Formula DC22LW 9x135mm, cup & cone ball bearings, IS 6 bolts |
| FRONT TYRE |
|---|
| Kenda Booster 26x2.4 single compound 30TPI, wire beadOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| REAR TYRE |
|---|
| Kenda Booster 26x2.4 single compound 30TPI, wire bead |
| CRANKSET |
|---|
| Sram SX Eagle, DUB axle, Direct mount chain ring, 155mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| CHAINRING |
|---|
| 30T, steel, X-Sync |
| BOTTOM BRACKET |
|---|
| Sram DUB BSA, sealed bearings, 73mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| PEDALS |
|---|
|
| CHAIN |
|---|
| Sram SX Eagle, 12s, PowerlockOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
