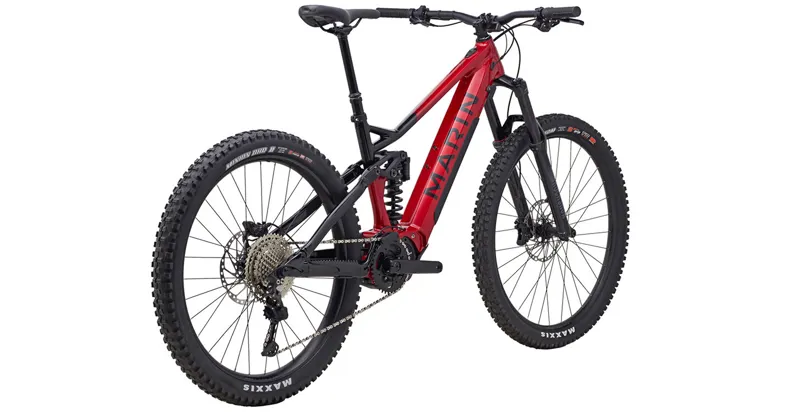

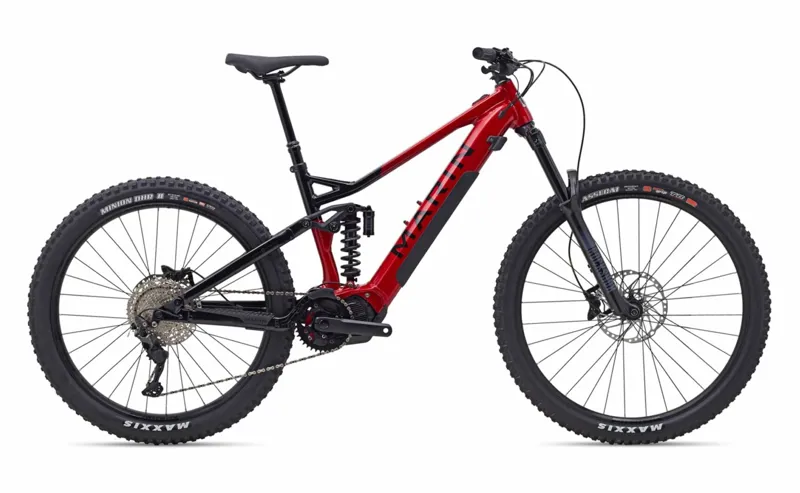

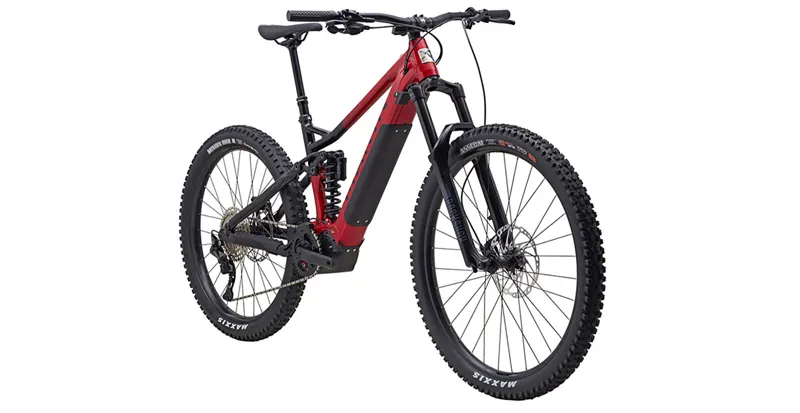

Marin Alpine Trail E1 Large Full-Suspension E-MTB in Red/Black

Brand:Marin

Code:732455003

MOUNTAIN BIKING WITH A BOOST

BEYOND CAPABLE, BOTH UP AND DOWN, IN EVEN THE MOST CHALLENGING TERRAIN

The Alpine Trail E will take you further, faster, allowing you to tackle the most aggressive trails either up or down.

The Alpine Trail E takes all the greatness of Marin’s longest travel, most aggressive enduro platform to make their most capable eMTB to date. With the same critically acclaimed aluminium 150mm MultiTrac chassis and progressive geometry as the conventional Alpine Trail models, but with a 250W Shimano STEPS boost to take you further, faster, and into bigger adventures than ever before.

Key attributes:

  • All-new Series 4 alloy frame with integrated battery, power switch, charging port, and built-in rear speed sensor. The integrated battery is protected behind a removable protective plate.
  • Mixed wheel sizes: 29 x 2.5” front and 27.5 x 2.8” rear, with the larger diameter front wheel rolling over almost any trail obstacle, and offering the best cornering traction, and the burly rear setup adding playfulness, while enhancing acceleration and braking traction.
  • MultiTrac suspension optimised for the Shimano STEPS system, with coil rear springs on both models.
  • Modern geometry adapted from the progressive numbers featured on the 2021 Alpine Trail models, but with a half degree slacker 63° head-tube angle, 435mm chain-stays (5mm longer). Seat Tube angles remain a steep 78°.
  • Integrated rubber frame bump stops and chain-stay pad, built to withstand whatever the trail may dish out.
  • Dropper post optimisation to let the rider run longer than stock posts if desired.
  • 160mm front/150mm rear travel.
Technical Information

FRAME:

All New Series 4 Alloy Frame, 150mm Multitrac suspension, Integrated Battery/On-switch/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

FORK:

Rock Shock 35 Gold RL 29", Motion Control Damper, 160mm Travel, Maxle Stealth Axle, 44mm Offset

SHOCK:

Rock Shock Super Deluxe Coil R, Rebound Adjustment, 205x65mm, 25mmxM8 Lower Hardware, S/M Spring Rate = 300lb, L/XL Spring Rate = 400lb

RIMS:

Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

HUB REAR:

Shimano HB-MT400B, 148x12mm, Centerlock, Standard Freehub Body

HUB FRONT:

Shimano MT-410B, 110x15mm, Centerlock Disc, 32H

SPOKES:

14g Black Stainless Steel

TYRES:

Front: Maxxis Assegai 29x2.5", 3C MaxxTerra, Double Down, Tubeless Compatible Rear: Maxxis Minion DHR II 27.5x2.8, 3C Maxx Terra, EXO+, Tubeless Compatible

DERAILLEUR REAR:

Shimano Deore 5100 Direct Attachment, 10-Speed

DERAILLEUR FRONT:

-

SHIFT LEVER:

Shimano Deore M4100-R, I-Spec EV, 10-Speed

CRANKSET:

Marin Forged Alloy 165mm Length, Narrow Wide 38T Chainring, e13 Plus Chain guide, Aluminum Plate

MOTOR:

Shimano STEPS E7000, 250W, 60Nm

CHAIN:

KMC X-10E, E-Bike Specific, Silver

CASSETTE:

Shimano Deore M4100-10 10-speed 11-46T

BRAKES FRONT:

Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor

BRAKES REAR:

Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor w/ Speed Sensor

BRAKE LEVERS:

Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible

HANDLEBAR:

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

STEM:

Marin 3D Forged Alloy, 35mm

GRIPS:

Marin Single Clamp Locking

HEADSET:

FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST:

TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm

SADDLE:

Marin E-MTB Saddle

PEDALS:

Marin MTB Plastic

BATTERY:

BT-8035, Internal 504Wh

DISPLAY:

SC-E7000 Display

SWITCH:

SW-E7000 Left Hand Switch for Assist Mode Change

EXTRAS:

Shimano Battery Charger EC-E6002, Bolt-on Thru-Axle
