| MODEL |
|---|
| CRAFTY R |
| FRAME |
|---|
| Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
| SIZES |
|---|
| S: 380mm / M: 420mm / L: 450mm / XL: 490mm |
| REAR SHOCK |
|---|
| Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| SHOCK SETTINGS |
|---|
| medium compression, medium rebound, air volume spacer 0.2 |
| FORK |
|---|
| Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| FORK REMOTE |
|---|
|
| HEADSET |
|---|
| Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| STEM |
|---|
| Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| HANDLEBAR |
|---|
| Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| GRIPS |
|---|
| Onoff Desert, 1lock-on, 135mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| SEATPOST |
|---|
| Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
| SADDLE |
|---|
| FIZIK Terra Aidon X5 145mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| FRONT BRAKE |
|---|
| Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| REAR BRAKE |
|---|
| Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic padsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| BRAKE LEVER |
|---|
| Sram DB8, tool-free reach adjust |
| RIMS |
|---|
| Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokesOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| SPOKES |
|---|
| Mavic J-bend double butted, contactless lacing |
| FRONT HUB |
|---|
| Mavic, Boost 15x110mm, IS 6 boltsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| REAR HUB |
|---|
| Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts |
| FRONT TYRE |
|---|
| Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding beadOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| REAR TYRE |
|---|
| Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |

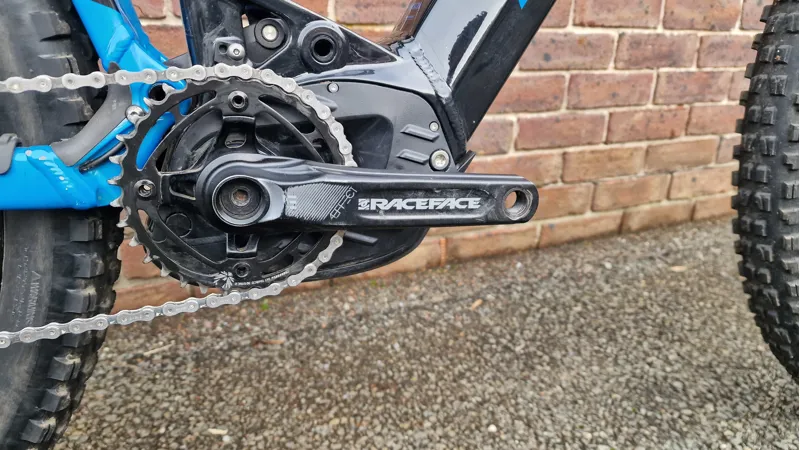

| CRANKSET |
|---|
| Race Face Aeffect ebike, 165mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| CHAINRING |
|---|
| Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| BOTTOM BRACKET |
|---|
| Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| PEDALS |
|---|
|
| CHAIN |
|---|
| Sram SX Eagle, 12s, PowerlockOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
