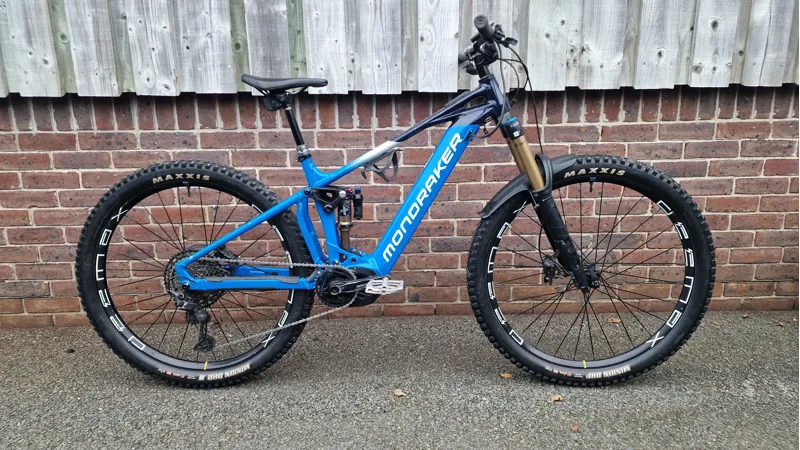

Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Shock settings
Medium compression, medium rebound, air volume spacer 0.2

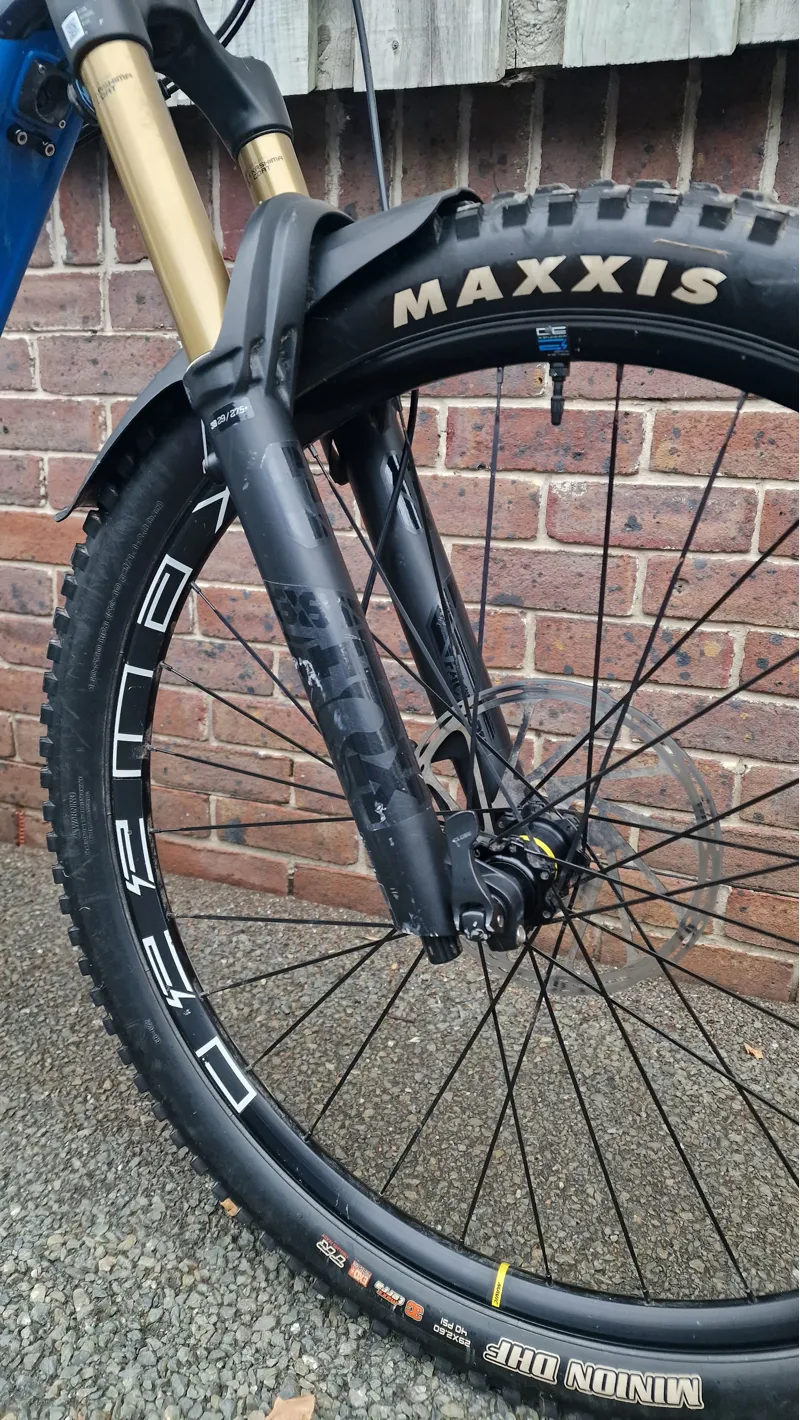

Fork
Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm
Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm
Grips
Onoff Desert, 1lock-on, 135mm

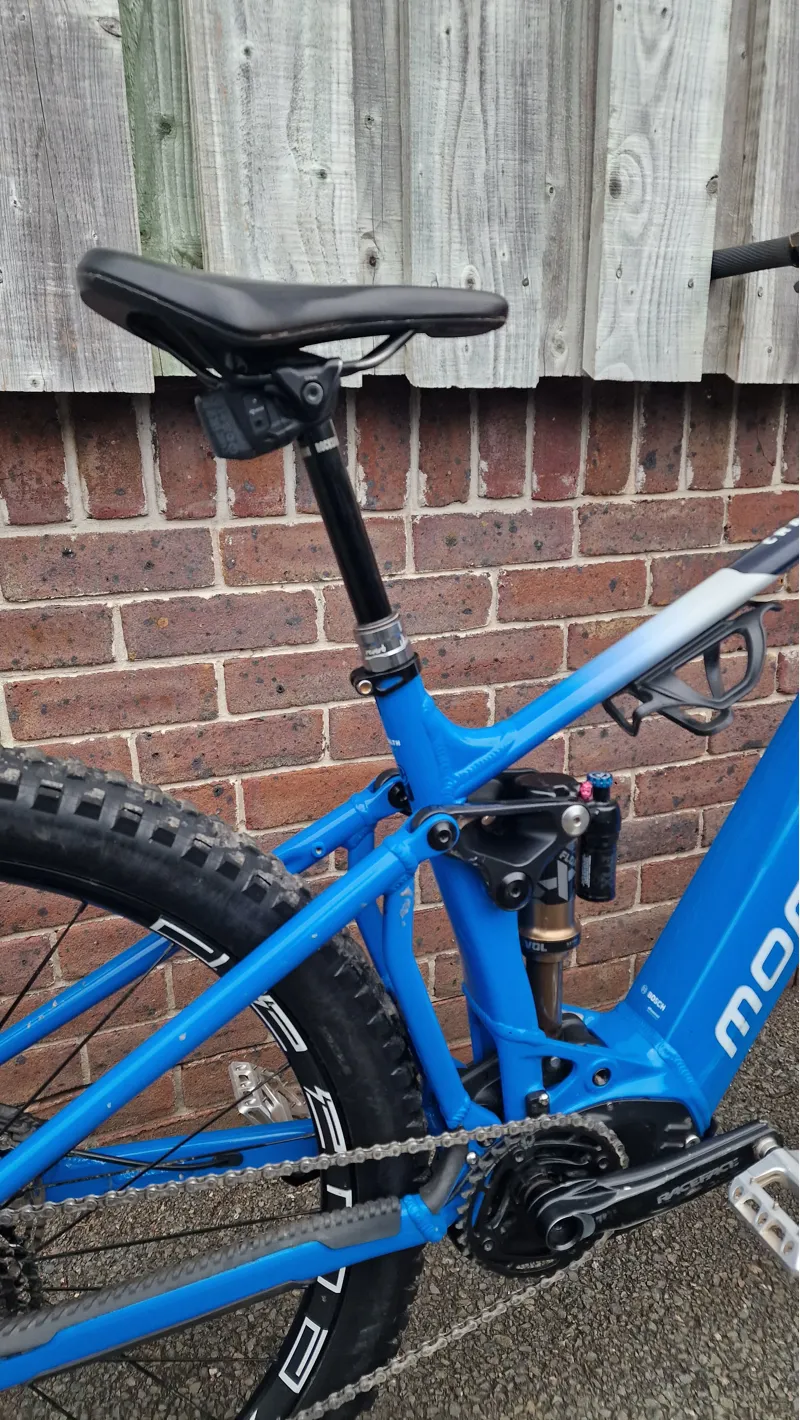

Seatpost
Choice of OnOff internal-routed and cable-operated in size suited for the frame size; or Rockhox Reverb AXS battery-operated wireless remote post +£100.
Saddle
FIZIK Terra Aidon X5 145mm
Brakes
Shimano Deore XT M8120 4-piston with 203/220mm Ice Tech rotors OR Hope Tech 4 V4 with vented floating rotors in blue (+£200)
Rims
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes
Mavic J-bend double butted, contactless lacing
Front hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front tire
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

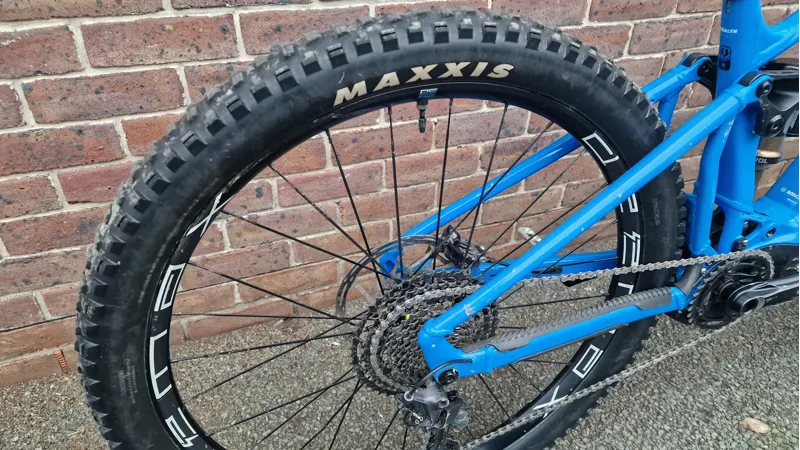

Rear tire
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset
Race Face Aeffect ebike, 165mm
Rings
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain
KMC E11 EPT e-bike specific, anti-rust coating.
Rear derailleur
Shimano XT Link Glide
Shift levers
Shimano XT Link Glide
Casette
Shimano XT Link Glide 11-51T
Derailleur hanger
Mondraker M068
Weight
25,9 kg

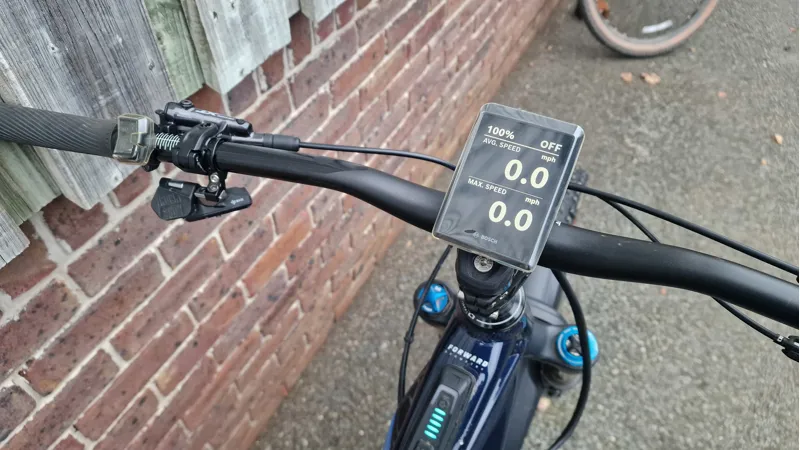

Display
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Motor
Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM
