| MODEL |
|---|

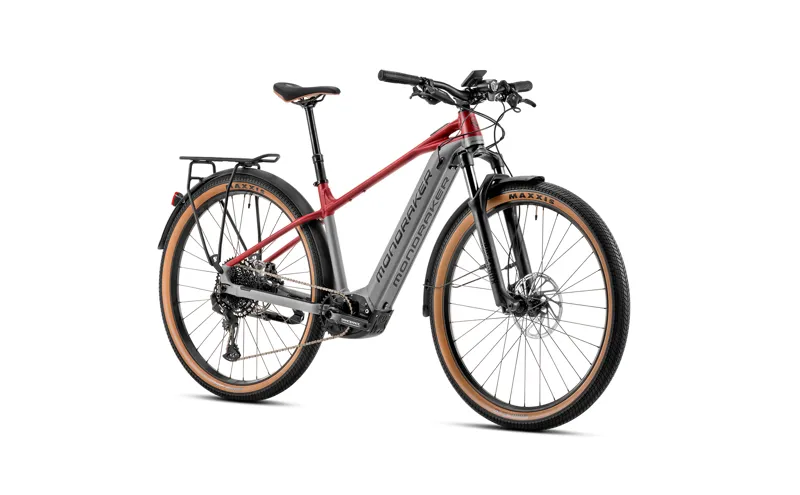

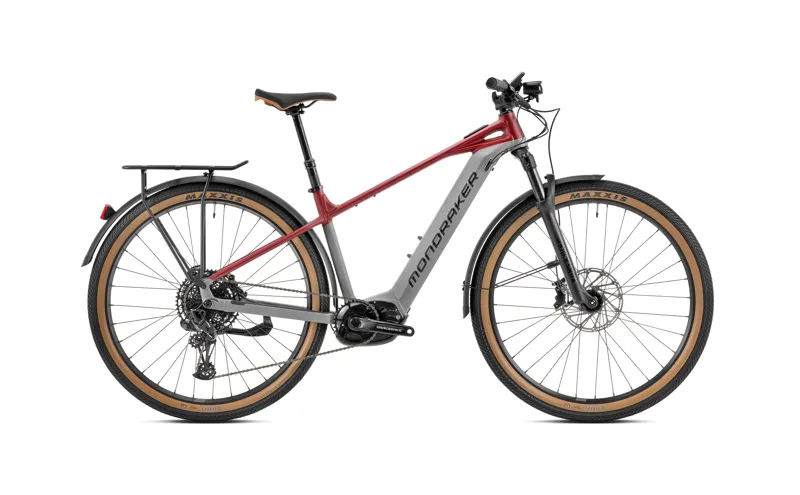

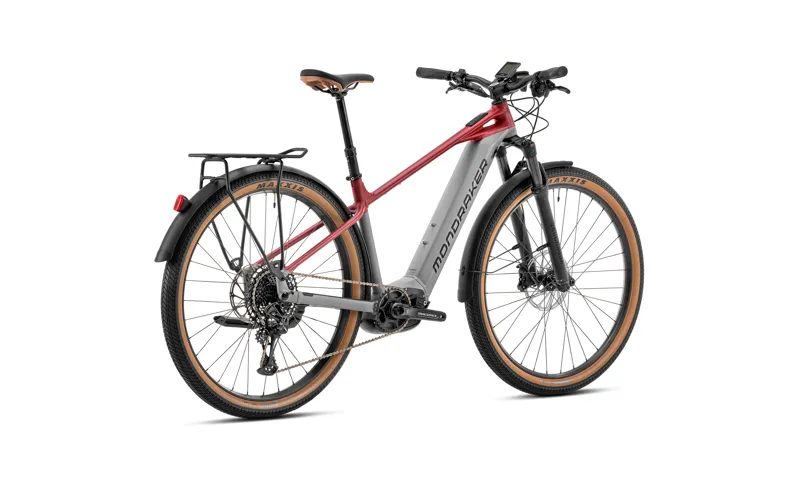

| PRIME R X |
| FRAME |
|---|
| Prime 6061 Xtralite Fully Butted Alloy, Forward Geometry, internal non-removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor |

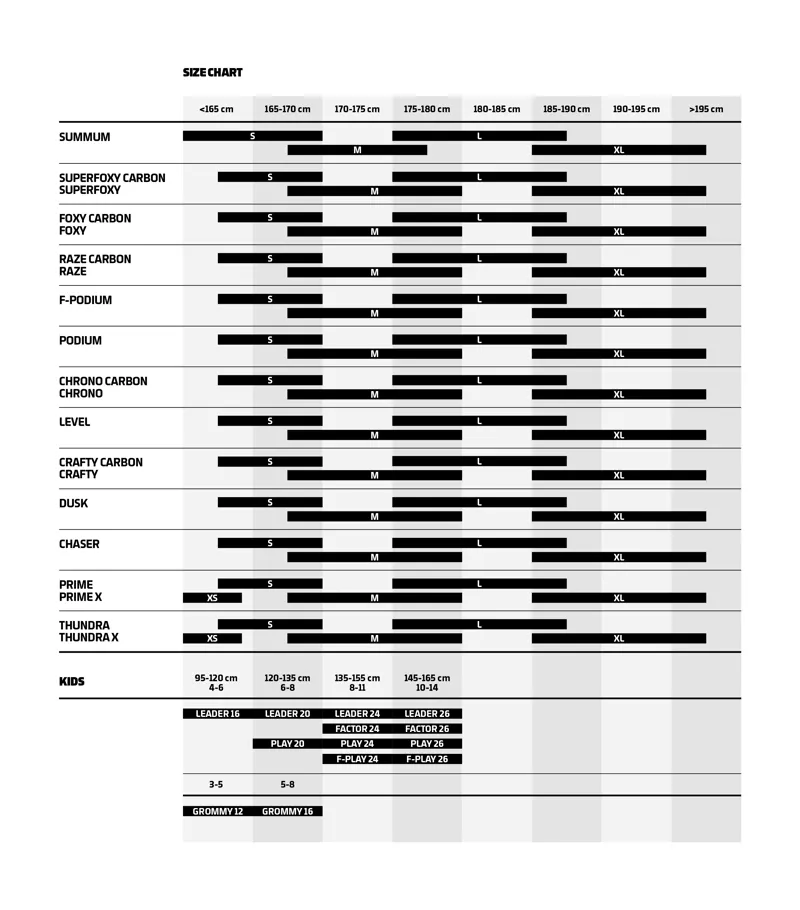

| SIZES |
|---|
| XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm |
| REAR SHOCK |
|---|
|
| SHOCK SETTINGS |
|---|
|
| FORK |
|---|
| RockShox 35 Silver TK 29, 100mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| FORK REMOTE |
|---|
|
| HEADSET |
|---|
| Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| STEM |
|---|
| MDK Urban 40mm 5º, 6061 forged alloy, 31.8mm barbore |
| HANDLEBAR |
|---|
| MDK Urban 1.0 double butted 6061 alloy, rise: 20mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| GRIPS |
|---|
| Onoff ShaperMDK Urban 40mm 5º, 6061 forged alloy, 31.8mm barbore |
| SEATPOST |
|---|
| Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
| SADDLE |
|---|
| MDK urbanMDK Urban 40mm 5º, 6061 forged alloy, 31.8mm barbore |
| FRONT BRAKE |
|---|
| Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| REAR BRAKE |
|---|
| Sram DB8, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic padsMDK Urban 40mm 5º, 6061 forged alloy, 31.8mm barbore |
| BRAKE LEVER |
|---|
| Sram DB8, tool-free reach adjust |
| RIMS |
|---|
| MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokesMDK Urban 40mm 5º, 6061 forged alloy, 31.8mm barbore |
| SPOKES |
|---|
| CN round stainless steel |
| FRONT HUB |
|---|
| Formula DC711, Boost 15x110mm, sealed bearings, IS 6 boltsMDK Urban 40mm 5º, 6061 forged alloy, 31.8mm barbore |
| REAR HUB |
|---|
| Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts |
| FRONT TYRE |
|---|
| Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall.MDK Urban 40mm 5º, 6061 forged alloy, 31.8mm barbore |
| REAR TYRE |
|---|
| Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall. |
| CRANKSET |
|---|
| Race Face Aeffect ebike, 165mmMDK Urban 40mm 5º, 6061 forged alloy, 31.8mm barbore |
| CHAINRING |
|---|
| Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| BOTTOM BRACKET |
|---|
| MDK Urban 40mm 5º, 6061 forged alloy, 31.8mm barbore |
| PEDALS |
|---|
|
| CHAIN |
|---|
| Sram SX Eagle, 12s, PowerlockMDK Urban 40mm 5º, 6061 forged alloy, 31.8mm barbore |
