| MODEL |
|---|

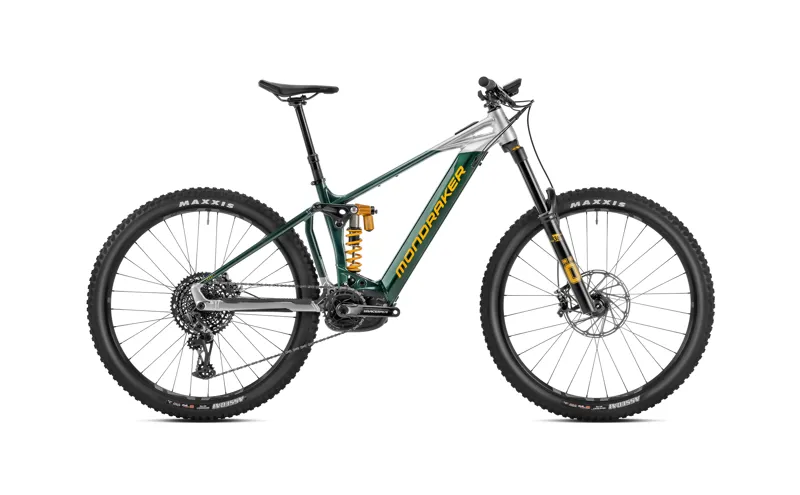

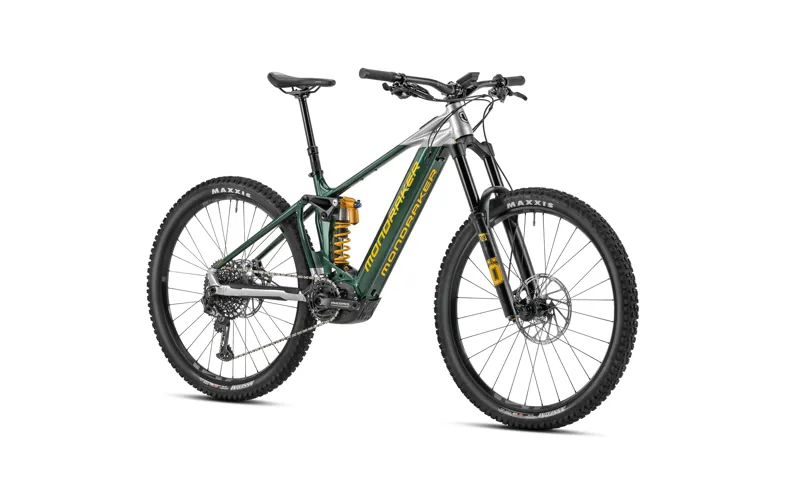

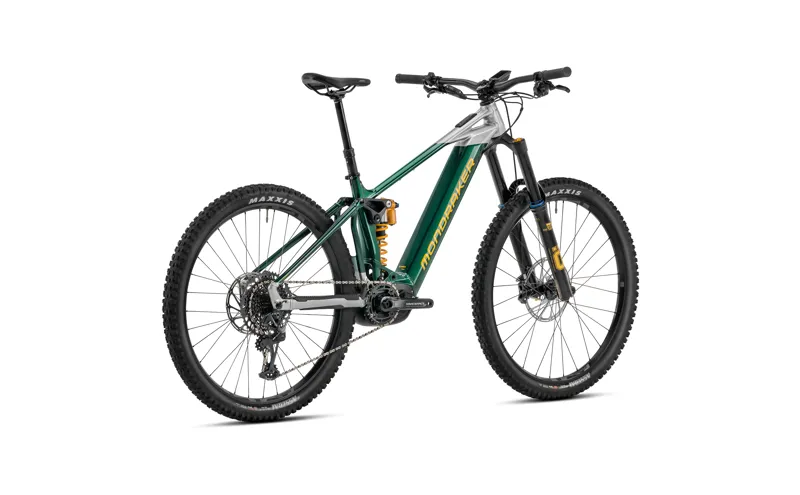

| LEVEL XR |
| FRAME |
|---|
| Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers |

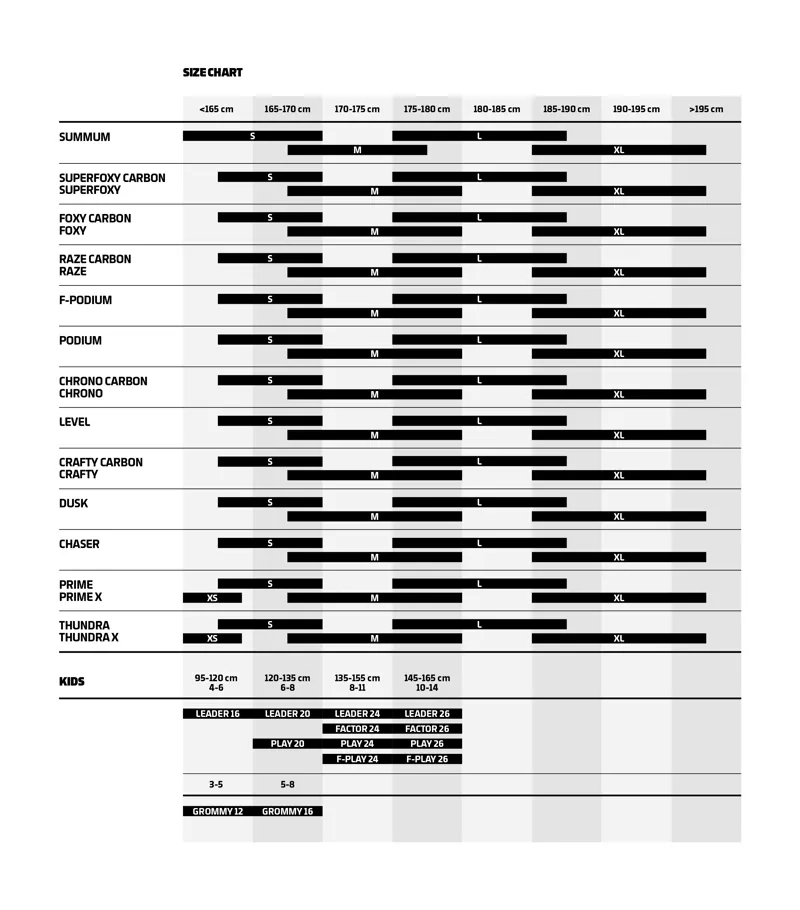

| SIZES |
|---|
| S: 380mm / M: 420mm / L: 450mm / XL: 490mm |
| REAR SHOCK |
|---|
| Öhlins TTX22M 225x75mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings |
| SHOCK SETTINGS |
|---|
| C10 compression, R35 rebound. Spring rate: S size 251 lbs, M size 297 lbs, L size 343 lbs, XL size 411 lbs |
| FORK |
|---|
| Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| FORK REMOTE |
|---|
|
| HEADSET |
|---|
| Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| STEM |
|---|
| Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| HANDLEBAR |
|---|
| Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| GRIPS |
|---|
| Onoff Desert, 1lock-on, 135mmOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
| SEATPOST |
|---|
| Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
| SADDLE |
|---|
| FIZIK Terra Aidon X5 145mmOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
| FRONT BRAKE |
|---|
| Sram Code RSC, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| REAR BRAKE |
|---|
| Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered padsOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
| BRAKE LEVER |
|---|
| Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
| RIMS |
|---|
| e*thirteen E*Spec Plus, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokesOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
| SPOKES |
|---|
| e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers |
| FRONT HUB |
|---|
| e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 boltsOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
| REAR HUB |
|---|
| e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts |
| FRONT TYRE |
|---|
| Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding beadOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
| REAR TYRE |
|---|
| Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| CRANKSET |
|---|
| Race Face Aeffect ebike, 165mmOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
| CHAINRING |
|---|
| Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| BOTTOM BRACKET |
|---|
| Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| PEDALS |
|---|
|
| CHAIN |
|---|
| Sram GX Eagle, 12s, PowerlockOnoff Krypton FG 30mm, CNC, 31.8mm barbore |
