MODEL |
---|

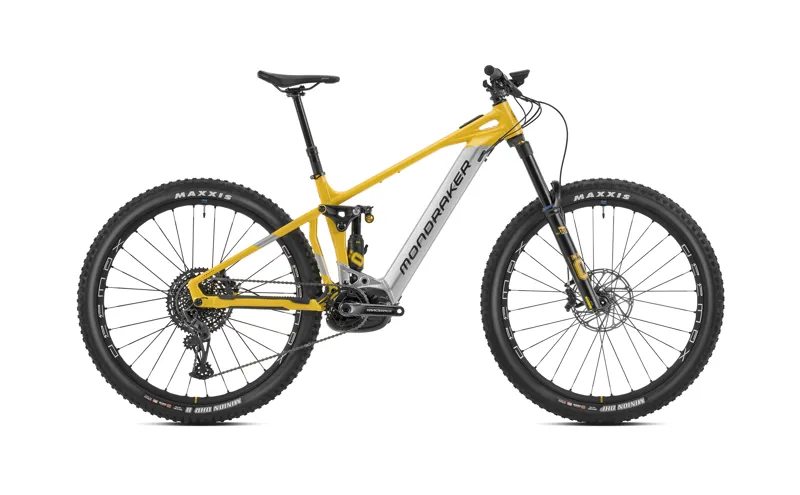

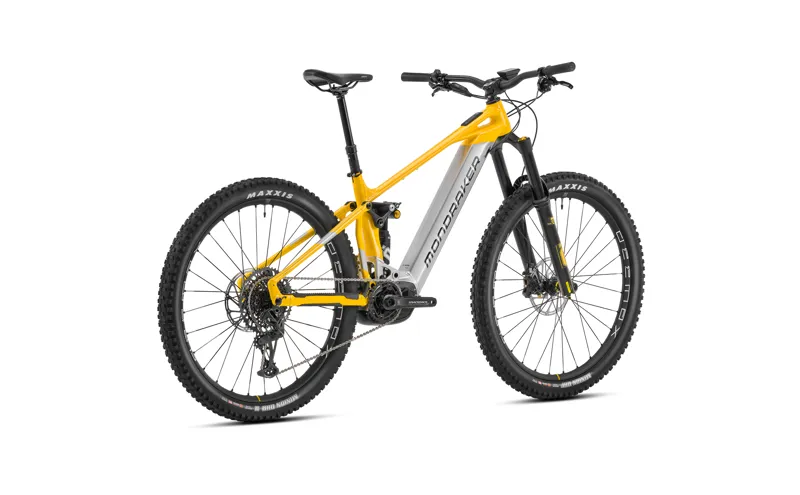

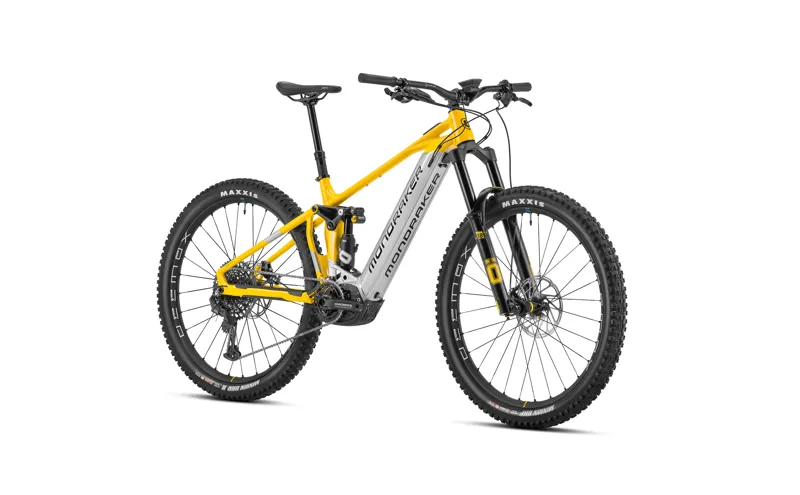

CRAFTY XR |
FRAME |
---|
Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
SIZES |
---|

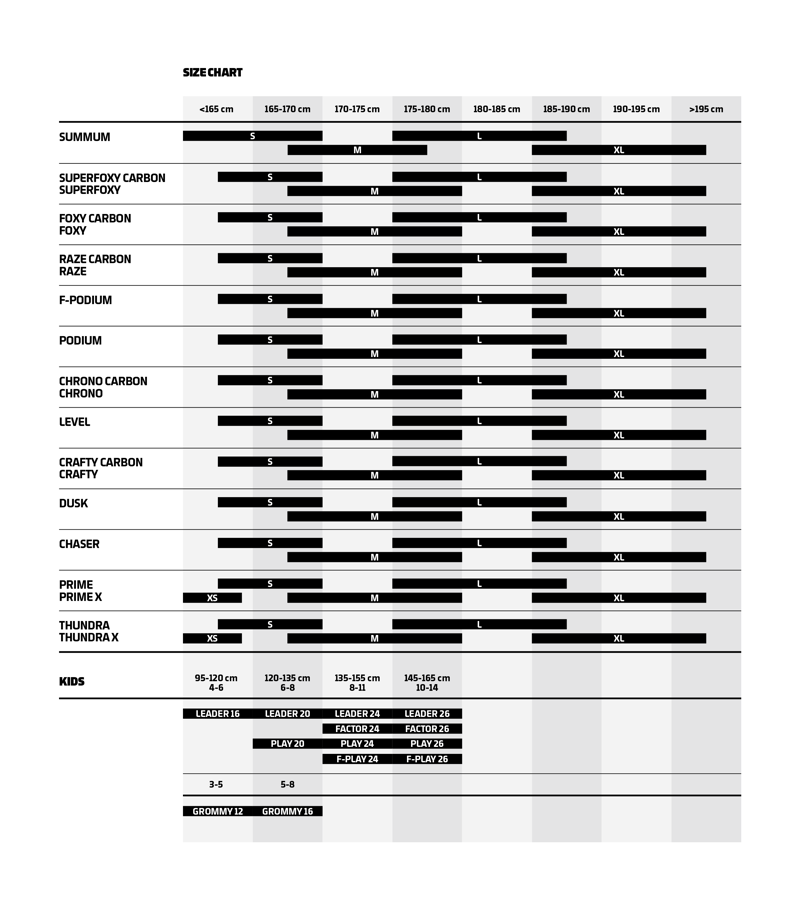

S: 380mm / M: 420mm / L: 450mm / XL: 490mm |
REAR SHOCK |
---|
Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
SHOCK SETTINGS |
---|
C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D) |
FORK |
---|
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
FORK REMOTE |
---|
|
HEADSET |
---|
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
STEM |
---|
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
HANDLEBAR |
---|
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
GRIPS |
---|
Onoff Desert, 1lock-on, 135mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
SEATPOST |
---|
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
SADDLE |
---|
FIZIK Terra Aidon X5 145mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
FRONT BRAKE |
---|
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
REAR BRAKE |
---|
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered padsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
BRAKE LEVER |
---|
Sram Code R, tool-free reach adjust |
RIMS |
---|
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokesOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
SPOKES |
---|
Mavic straight-pull double butted, contactless lacing |
FRONT HUB |
---|
Mavic, Boost 15x110mm, IS 6 boltsOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
REAR HUB |
---|
Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub |
FRONT TYRE |
---|
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding beadOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
REAR TYRE |
---|
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
CRANKSET |
---|
Race Face Aeffect ebike, 165mmOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
CHAINRING |
---|
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
BOTTOM BRACKET |
---|
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
PEDALS |
---|
|
CHAIN |
---|
Sram NX Eagle, 12s, PowerlockOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
